Ultrasonic cleaning in the automotive industry
Engine and transmission parts, carburettors and injectors, brake calipers, bearings: what contaminates them, what ultrasonic cleaning removes, and where the traditional methods fall short.
Technical guide. Figures are taken from our own spec tables; for your process we confirm the settings with a cleaning trial.
With its numerous parts and demand for precision, the automotive industry necessitates advanced cleaning processes. Thus, the industrial ultrasonic cleaner is a mechanism that has transformed the industry.
Because they clean intricate and difficult-to-reach parts with high precision, industrial ultrasonic cleaners have discovered a vital function within the automotive industry. Consequently, these cleaners provide several significant benefits, including comprehensive cleaning of complicated components, reduced manual labor, excellent vehicle performance, and increased efficiency from manufacturing to maintenance.
Ultrasonic cleaning improves engine parts, transmissions, fuel injectors, carburetors, and various metal and plastic parts. Consequently, multiple pollutants frequently expose these parts during manufacturing, assembly, and use.
Applications and comparison of traditional methods vs ultrasonic cleaning
In the rigorous industrial industry, cleanliness is crucial. Traditional methods like mechanical washing and chemical treatments have repaired machines and components for decades. Ultrasonic cleaning is becoming more precise and efficient. Ultrasonic cleaning challenges industrial cleanliness with high-frequency sound waves. This article compares traditional and ultrasonic cleaning procedures in industry and their implications for modern production.

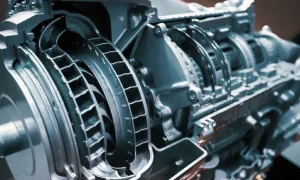

Engine and transmission components
Traditional Method: Frequent cleaning with solvent-based cleaners required manual scrubbing of these vital areas and often left a residue that could impair performance.
Ultrasonic Cleaning: High-frequency sound waves create cavitation bubbles in ultrasonic cleaners. These bubbles collapse when they touch the component’s surface, gently removing dirt, grease, and other contaminants. Thus, the part is cleaner and contamination-free.

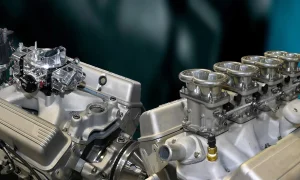

Carburetors and fuel injectors
Traditional Method: Manual cleaning and soaking in solvents were typical practices in the past, but these methods could miss some internal passages, resulting in less effective engine performance.
Ultrasonic Cleaning: Cavitation cleans every corner, ensuring thoroughness. It cleans these parts, improving engine performance.
Brake calipers and wheel cylinders
Traditional Method: Cleaning with brushes and solvent took a lot of time and often left brake dust in the bores and seal grooves.
Ultrasonic Cleaning: Strip the caliper or cylinder first: pistons, seals and dust boots come out before the bath. Ultrasonic cleaning then removes brake dust, old brake fluid, grease and grime from the bores and seal grooves, so they can be inspected before reassembly with new seals.
Bearings and bushings
Traditional Method: Manually cleaned using solvents, which could leave residue and affect the longevity of these components.
Ultrasonic Cleaning: Removes all residue and grime, extending the life of these vital components.
Overview of contaminants affecting automotive components: causes, effects, and solutions
Causes and types of contaminants
Components used in the automotive industry are susceptible to a wide variety of pollutants, any of which have the potential to adversely influence performance, efficiency, and lifetime. Ultrasonic cleaners used in industry are very effective in removing pollutants such as:
Oil and GreaseComponents and elements of the engine can become coated with oil and grease, which can harm their functionality. Ultrasonic cleaning can eliminate these chemicals, helping to maintain optimal functionality and prevent buildup.
Carbon DepositsCarbon deposits can accumulate on internal combustion engine valves, pistons, and spark plugs, leading to decreased power and efficiency. Because of this, ultrasonic cleaners may successfully remove these deposits and improve engine performance.
Dirt and Grime Debris, dirt, and grime from the road can collect on the exterior components of a car, diminishing its overall appearance. Ultrasonic cleaning effectively removes these impurities, which does not cause any damage.
Rust and CorrosionRust and corrosion can develop on automotive parts under severe environmental conditions. As a result, removing surface corrosion by ultrasonic cleaning helps maintain the components' structural integrity.
Effects of contamination on automotive components
Contamination can have a range of negative effects on automotive components, including:
- Lower Performance: Dirt and dust might negatively impact the effectiveness of engine parts or aerodynamic components.
- Wear and Tear: Grease, oil, and metal shavings are all things that might speed up the wear on a component, leading to a shorter overall lifespan.
- Malfunction: Rust and oxidation can result in component failure or malfunction.
- Safety Concerns: Contaminated brake or suspension parts can pose serious safety risks.
Advantages of using industrial ultrasonic cleaners in the automotive industry
- Efficiency: Ultrasonic cleaners can handle multiple components at once, reducing cleaning time.
- Precision: The high-frequency sound waves create cavitation bubbles, which explode when they come into contact with the surface. This removes fine contaminants from places a brush cannot reach.
- Safety: They reduce the need for harsh chemicals, making the cleaning process safer for both workers and the environment.
- Versatility: Suitable for a range of components, from intricate fuel injectors to robust engine blocks.
- Eco-Friendly: Ultrasonic cleaning reduces the reliance on harsh chemicals, making the process more environmentally friendly.
- Cost-effective: Reduced chemical use and labor hours can lead to significant cost savings.
Conclusion
Although conventional cleaning techniques have aided the automobile industry for many years, introducing industrial ultrasonic cleaners has completely transformed how the industry cleans components. Ultrasonic cleaning is quickly becoming the industry standard for the repair of automobile parts because of its superior effectiveness, safety, and cost-effectiveness.
