Products

Every series at a glance, from the 2-litre benchtop unit to the 8000-litre system.

The range at a glanceFind your machine

Products

Find your starting point

A system for your scale.

Five families: benchtop, industrial ultrasonic, spray washing, drying and multi-tank lines.

The range at a glance

Eleven series, from a 2-litre bench unit to a multi-tank line. Each one in a few lines; the details are one click further.

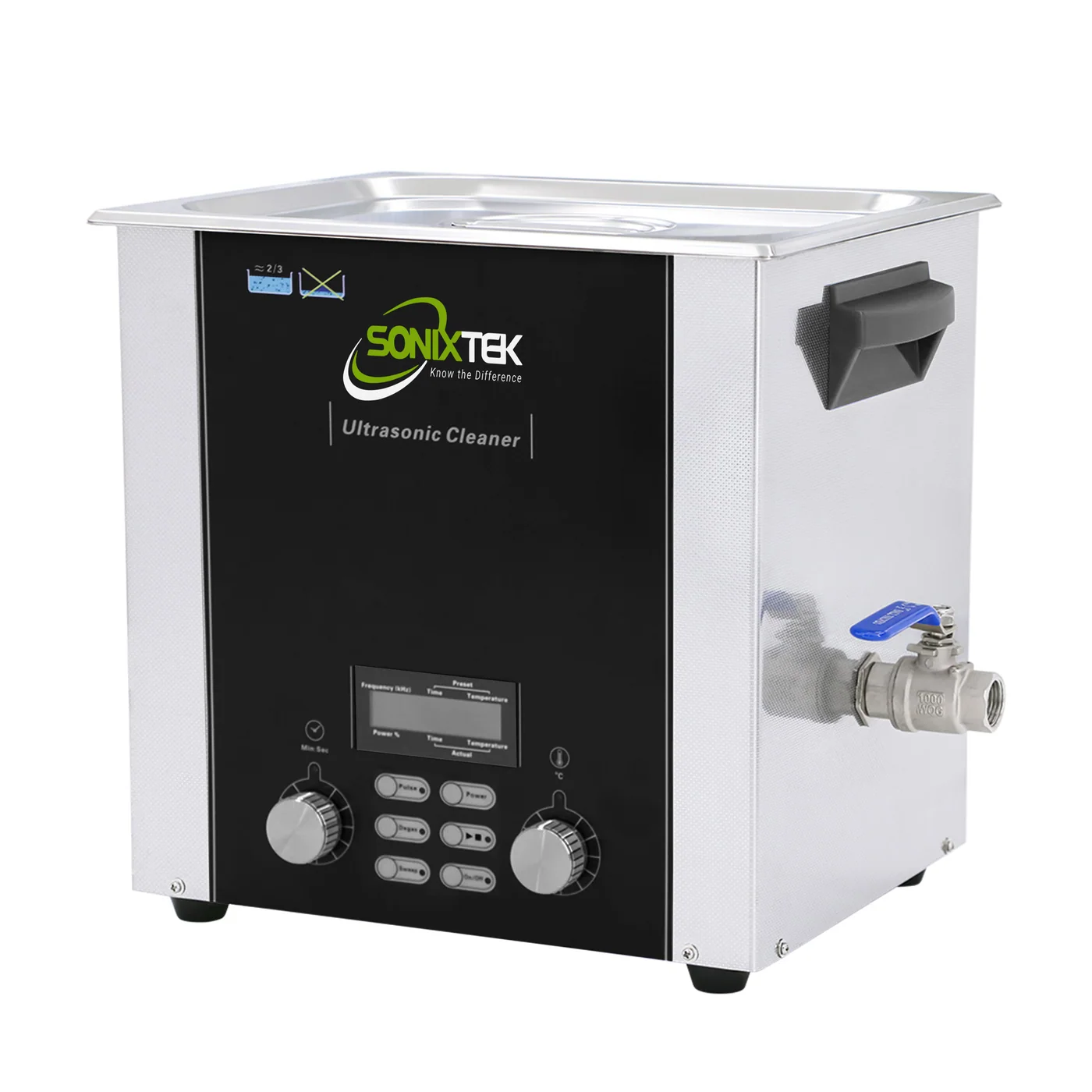

SX-10L — front view

Benchtop · 3–28 L (0.8–7.4 US gal)

SX benchtop cleaners

SX heated benchtop cleaners, 3 to 28 L (0.8 to 7.4 US gal) at 37 kHz, degas, sweep and pulse; drain valve standard from 6 L (1.6 US gal), on request for the SX-3L.

SX-3L · SX-6L · SX-10L · SX-15L · SX-28L

See the series

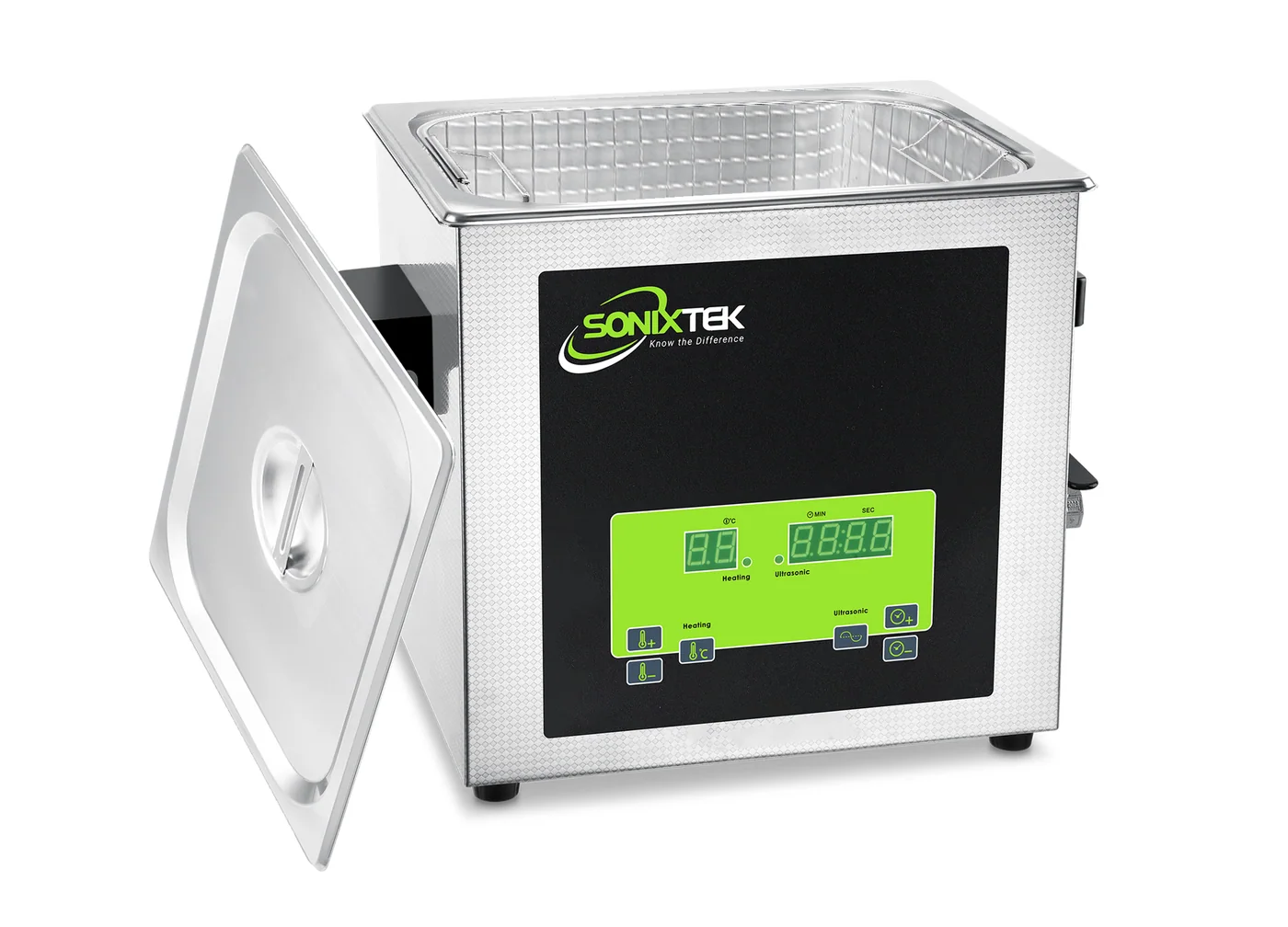

STB-100 — front view

Benchtop · 2–27 L (0.5–7.1 US gal)

STB basic benchtop cleaners

Basic benchtop ultrasonic cleaners from 2 to 27 L (0.5 to 7.1 US gal): 40 kHz, digital timer and heating up to 80 °C (176 °F), without degas or sweep. A simple, robust unit for routine cleaning.

STB-020 · STB-030 · STB-060 · STB-100 · STB-130 · STB-200 · …

See the series

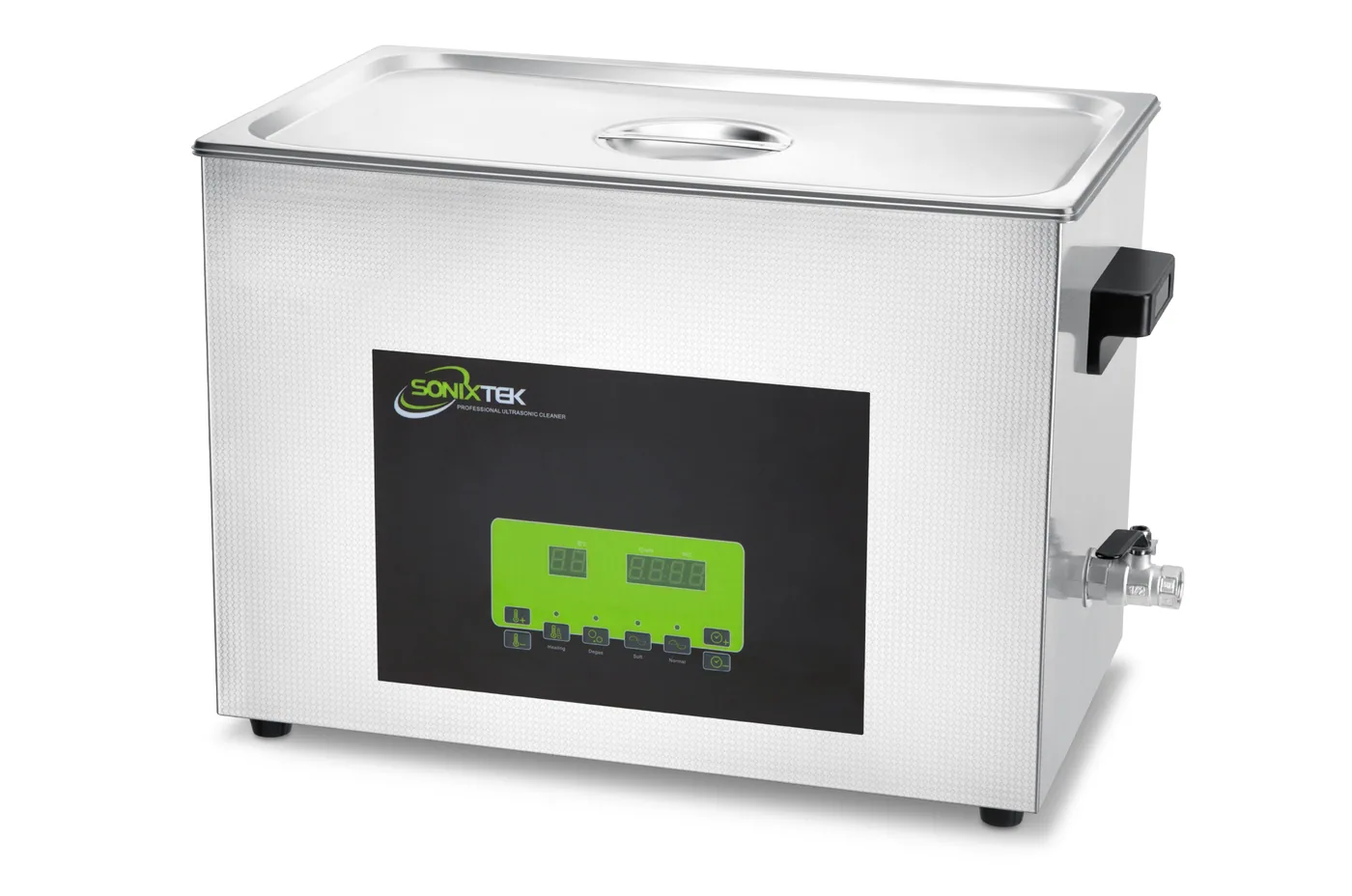

STS-150 — front view

Benchtop · 2–30 L (0.5–7.9 US gal)

STS benchtop cleaners

Benchtop ultrasonic cleaners from 2 to 30 L (0.5 to 7.9 US gal) with heating, 40 kHz, degas and sweep, for the lab, the workshop and the service counter.

STS-020 · STS-030 · STS-060 · STS-090 · STS-150 · STS-150-PRO · …

See the series

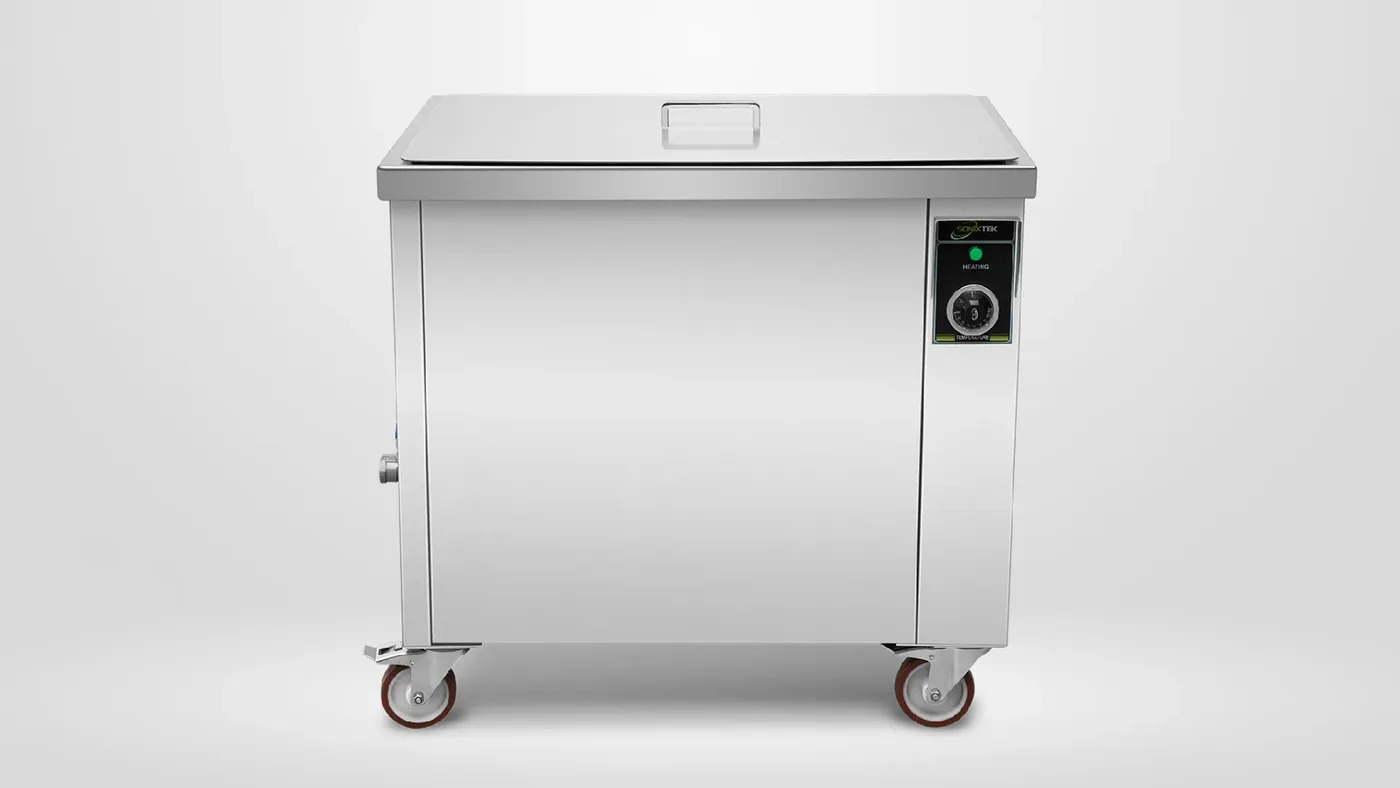

ST-157 — front view

Industrial ultrasonic · 40–400 L (11–106 US gal)

ST industrial ultrasonic tanks

Single-tank industrial ultrasonic cleaners from 40 to 400 L (11 to 106 US gal) in stainless steel, adjustable heating room temperature to 100 °C (212 °F), at 28 or 40 kHz, in standard sizes or built to your specification.

ST-40 · ST-65 · ST-96 · ST-117 · ST-157 · ST-206 · …

See the series

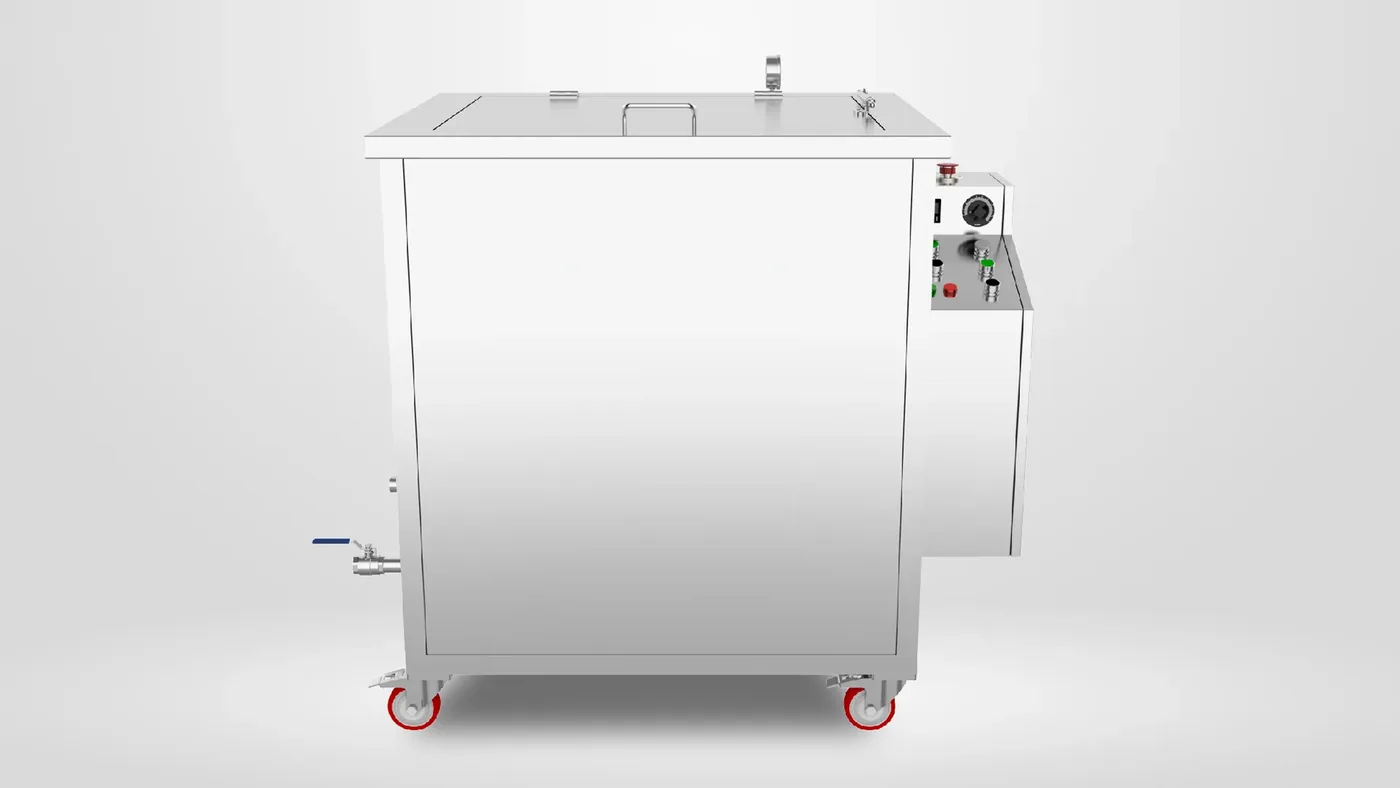

SF-310 — front view

Industrial ultrasonic · 225–360 L (59.4–95.1 US gal)

SF cleaners with filtration

Heated industrial ultrasonic cleaners of 225 to 360 L (59.4 to 95.1 US gal) with buffer tank, filtration pump and oil skimmer, so oil and swarf leave the bath.

SF-225 · SF-310 · SF-360

See the series
UMX Pro 88L — left view

Industrial ultrasonic · 50–255 L (13.2–67.4 US gal)

UMX Pro compact industrial cleaners

Compact industrial ultrasonic cleaners from 50 to 255 L (13.2 to 67.4 US gal) at 28/40 kHz, heated to 100 °C (212 °F), digital control with degas and sweep, filtration optional.

UMX Pro 50L · UMX Pro 62L · UMX Pro 88L · UMX Pro 162L · UMX Pro 255L

See the series

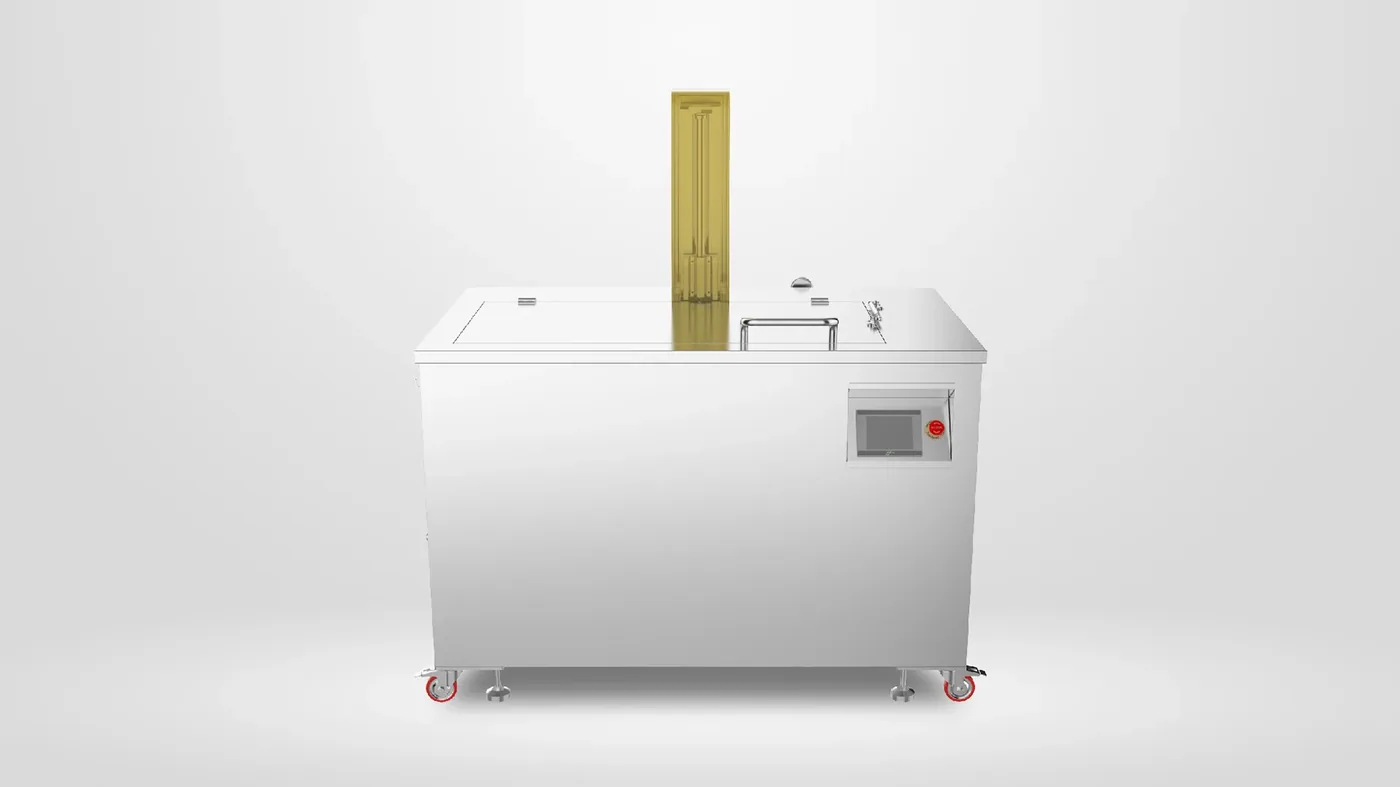

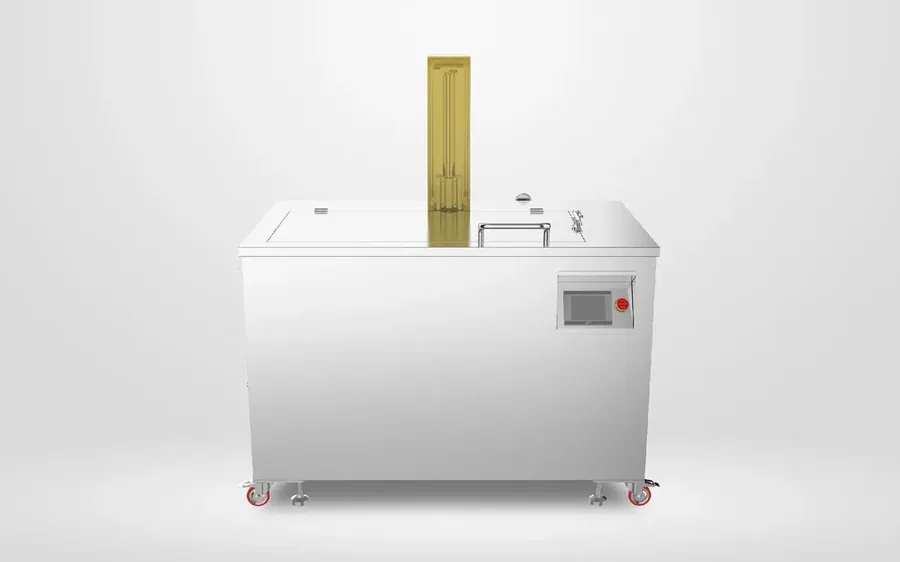

AL-400 — front view

Industrial ultrasonic · 75–2000 L (20–528 US gal)

AL ultrasonic cleaners with lift

Single-tank industrial ultrasonic cleaners of 75 to 2000 L (20 to 528 US gal) with an automatic lift that lowers, agitates and raises the basket on a PLC cycle.

AL-75 · AL-150 · AL-300 · AL-400 · AL-600 · AL-1000 · …

See the series

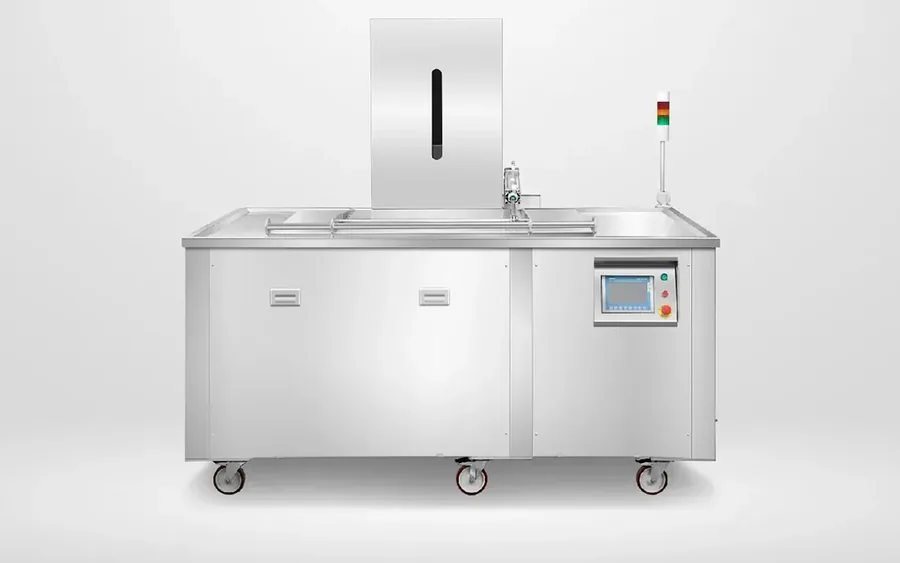

AU-800 — front view

Industrial ultrasonic · 400–8000 L (106–2,113 US gal)

AU Advanced industrial cleaners

AU Advanced: single-tank automatic ultrasonic cleaners of 400 to 8000 L (106 to 2,113 US gal) with servo platform, PLC programmes, double filtration and oil skimmer.

AU-400 · AU-600 · AU-800 · AU-1000 · AU-2000 · AU-3000 · …

See the series
SPR-500 — right view

Spray washers · 250–780 L (66–206 US gal)

SPR rotating spray washers

Rotating spray washers of 250 to 780 L (66 to 206 US gal) for heavy, greasy parts: heated closed-loop wash at up to 3.3 bar (48 psi), front loading, all stainless steel.

SPR-250 · SPR-500 · SPR-780

See the series
DT-206 — front view

Drying tanks · 96–300 L (25.4–79.3 US gal)

DT hot-air drying tanks

Hot-air drying tanks of 96 to 300 L (25.4 to 79.3 US gal) for the ST cleaners; the DT-96 and DT-206 take the ST-96 and ST-206 basket without repacking.

DT-96 · DT-206 · DT-300

See the series
MT-75 — front view

Multi-tank lines

Multi-tank cleaning lines

Multi-tank ultrasonic cleaning lines built to order: wash, rinse, passivate and dry with automatic basket handling; MT-75 is a reference configuration.

MT-75

See the series

Custom machines

Not in the standard range? We build it.

Every industrial machine is made to order, so the tank size, material, heating, filtration, lid, lift and controls follow your parts and your process. If the machine you need is not on this page, describe the parts and the soil and we design it around them.

Benchtop

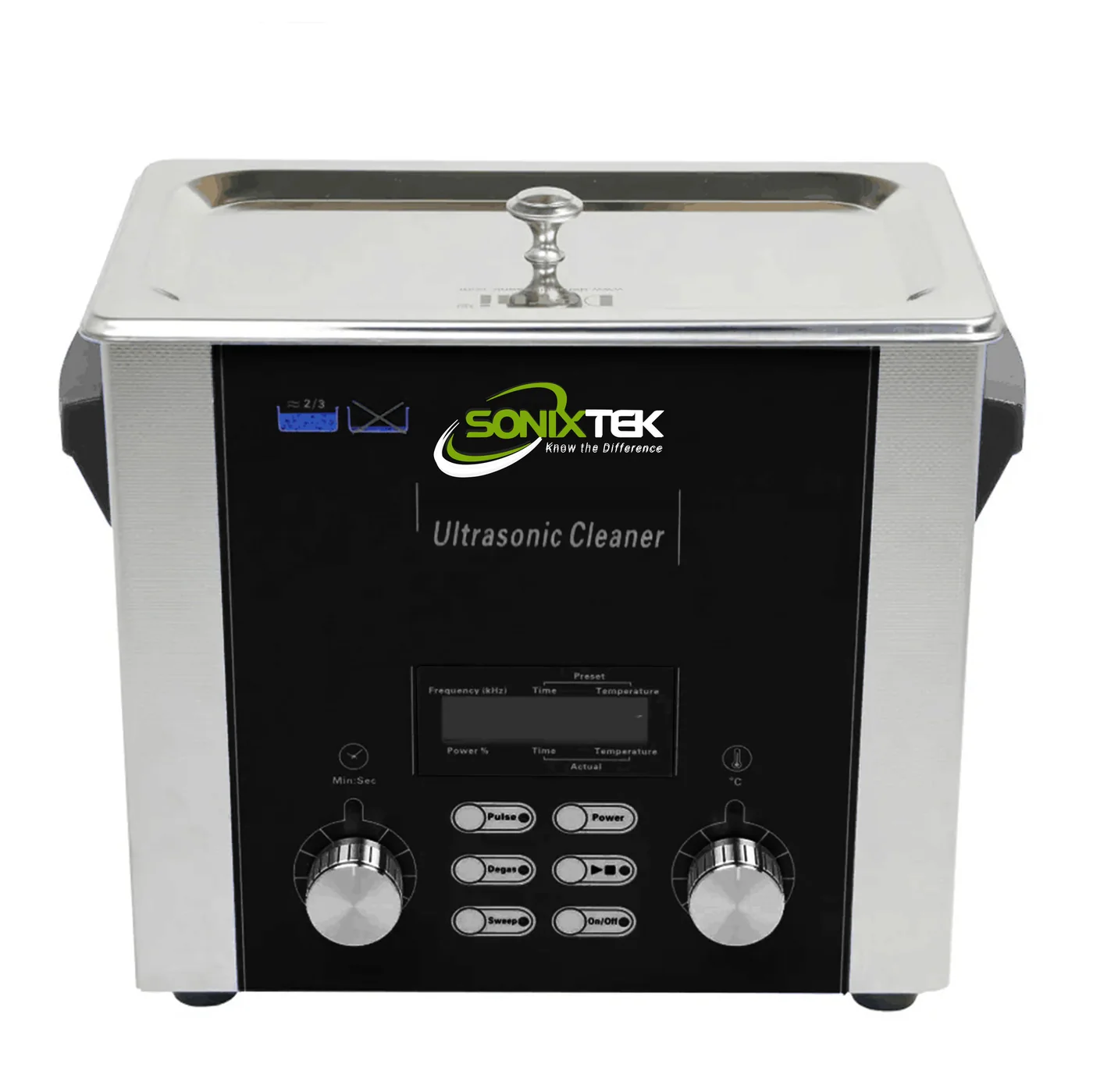

SX benchtop cleaners

SX heated benchtop cleaners, 3 to 28 L (0.8 to 7.4 US gal) at 37 kHz, degas, sweep and pulse; drain valve standard from 6 L (1.6 US gal), on request for the SX-3L.

The Sonixtek SX series is the second benchtop range: five sizes from 3 to 28 litres (0.8 to 7.4 US gal) at 37 kHz, with a stainless steel tank and housing. Four functions set it apart for daily bench work: degas drives dissolved air out of a fresh bath, sweep shifts the frequency slightly so no part sits in a dead spot, pulse lifts the power to 120 % in bursts for stubborn soil, and the power setting runs the bath at 40, 70 or 100 % for delicate or robust parts.

Benchtop

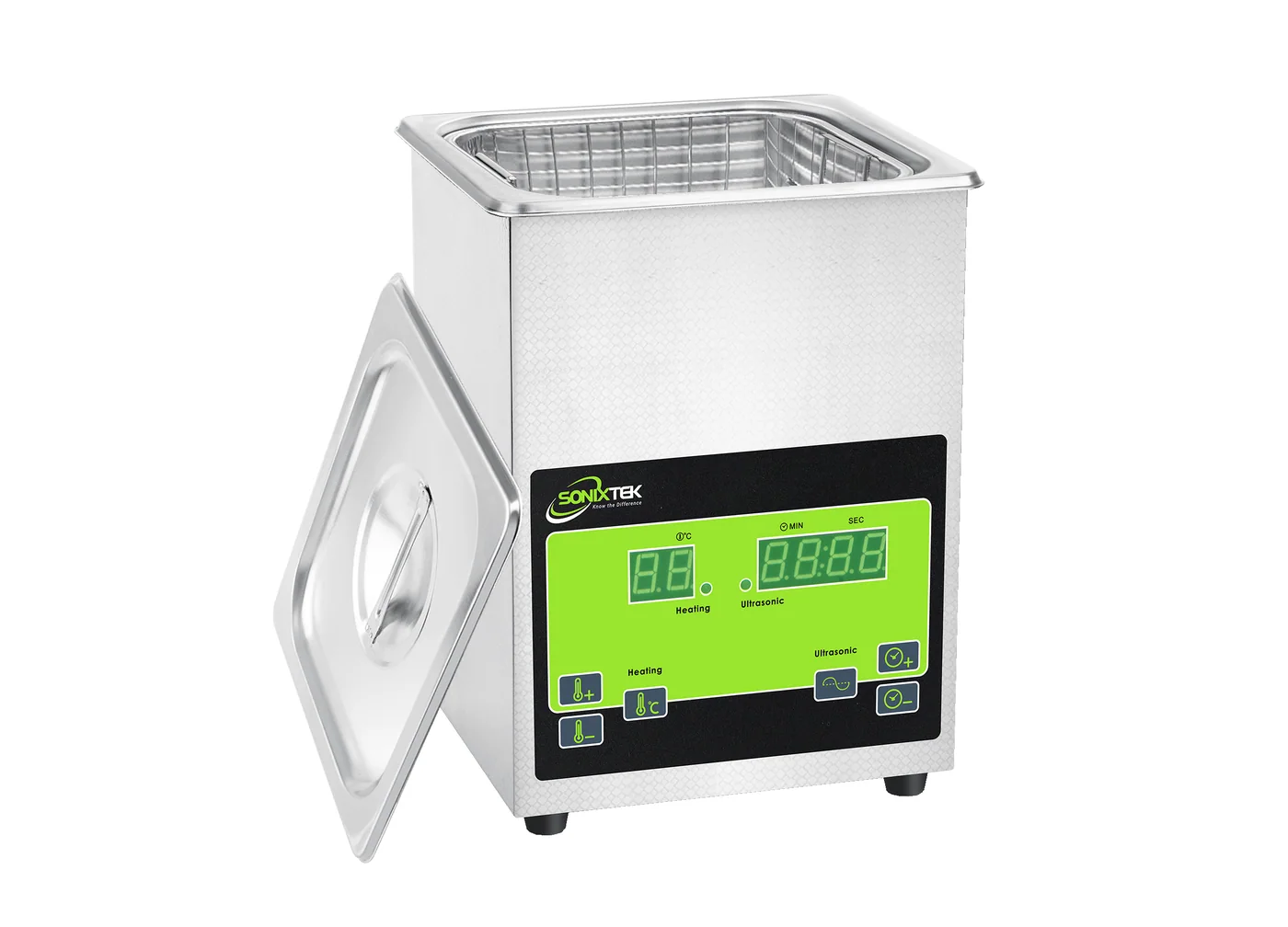

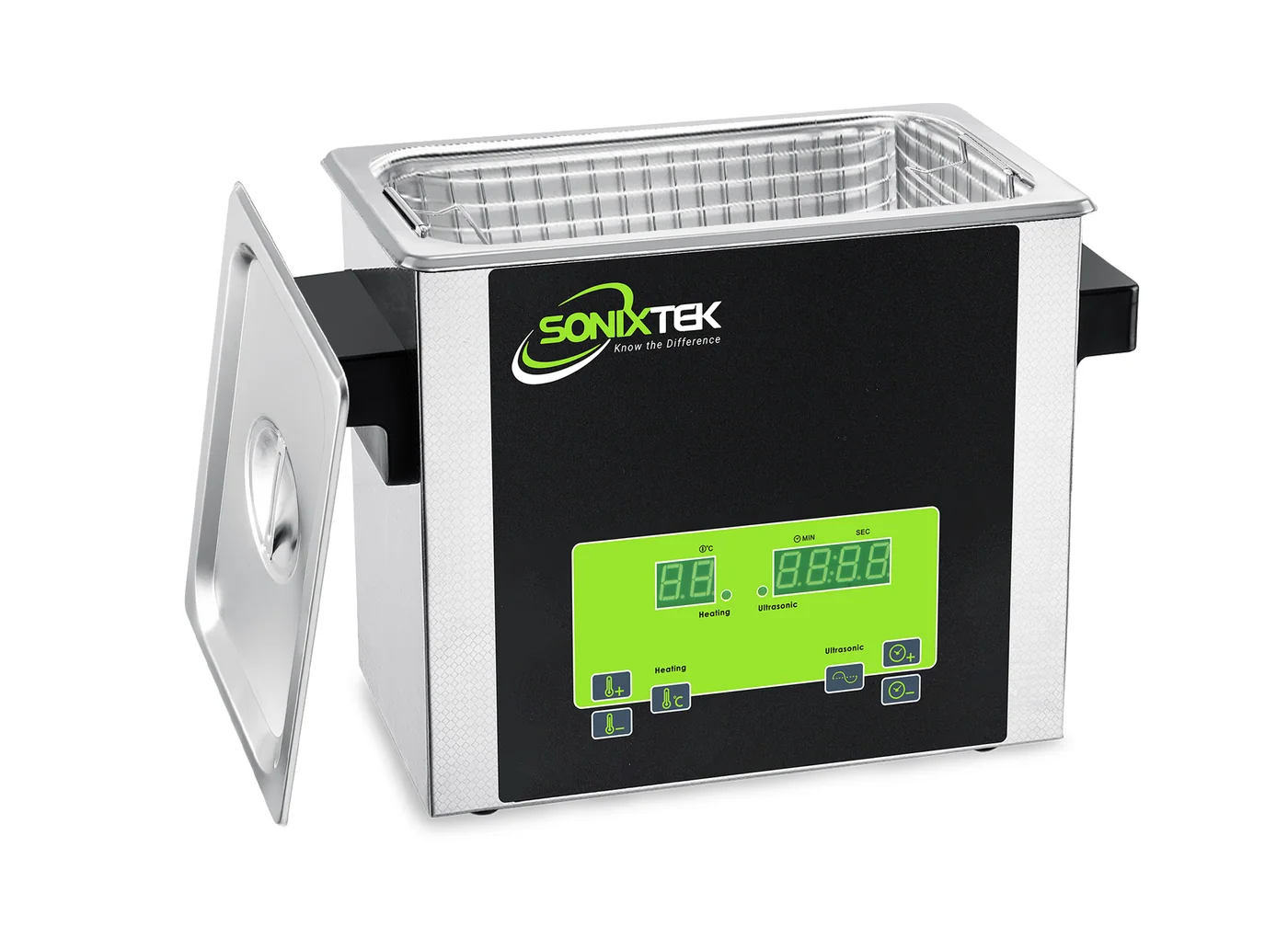

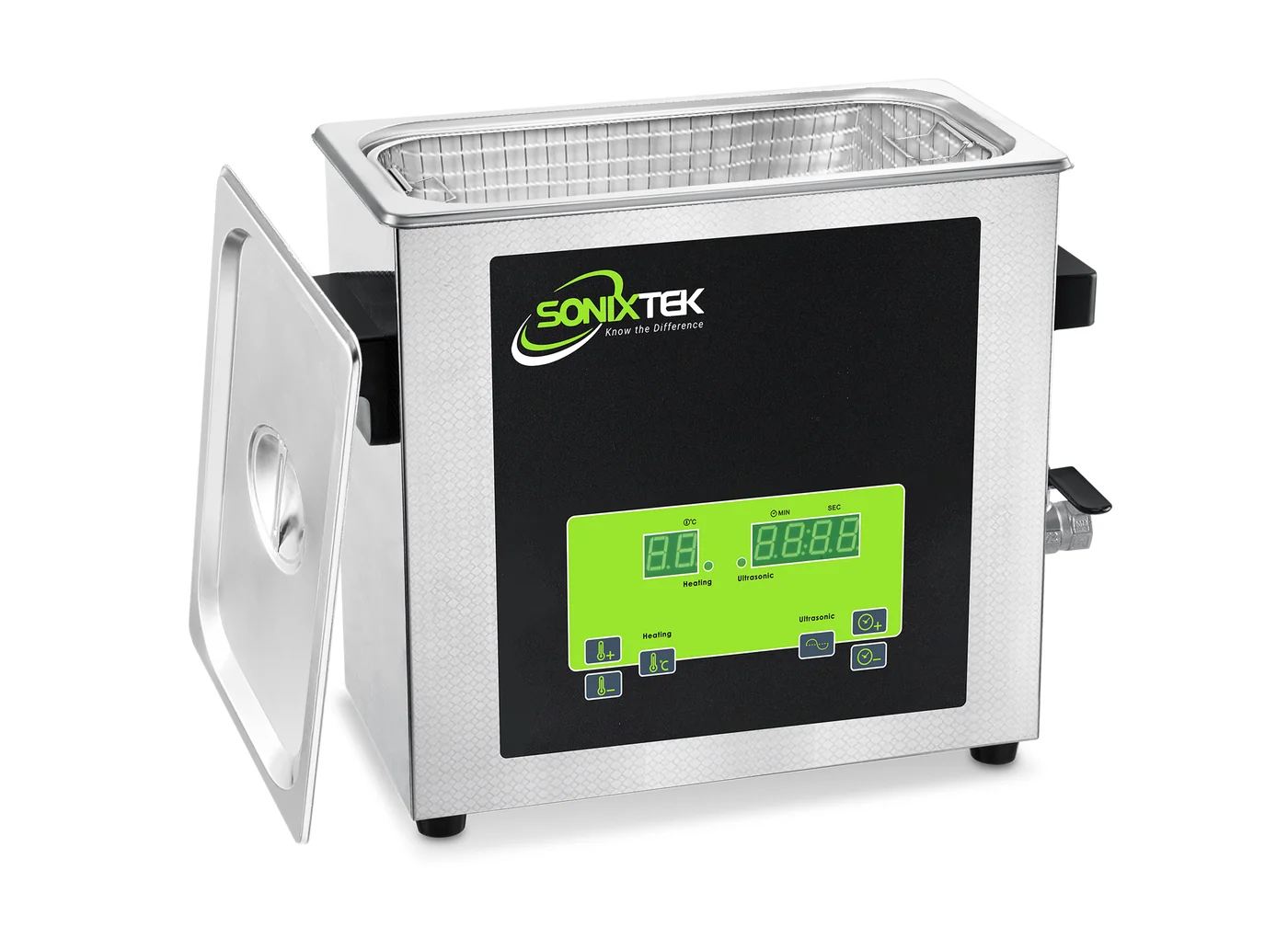

STB basic benchtop cleaners

Basic benchtop ultrasonic cleaners from 2 to 27 L (0.5 to 7.1 US gal): 40 kHz, digital timer and heating up to 80 °C (176 °F), without degas or sweep. A simple, robust unit for routine cleaning.

The STB series is the basic benchtop range: 2 to 27 litres (0.5 to 7.1 US gal), a seamless SUS304 stainless steel tank, 40 kHz ultrasound, heating up to 80 °C (176 °F) and a digital timer from 1 to 99 minutes. It has no degas, no sweep and no power steps: fill the tank, set time and temperature, and start.

Benchtop

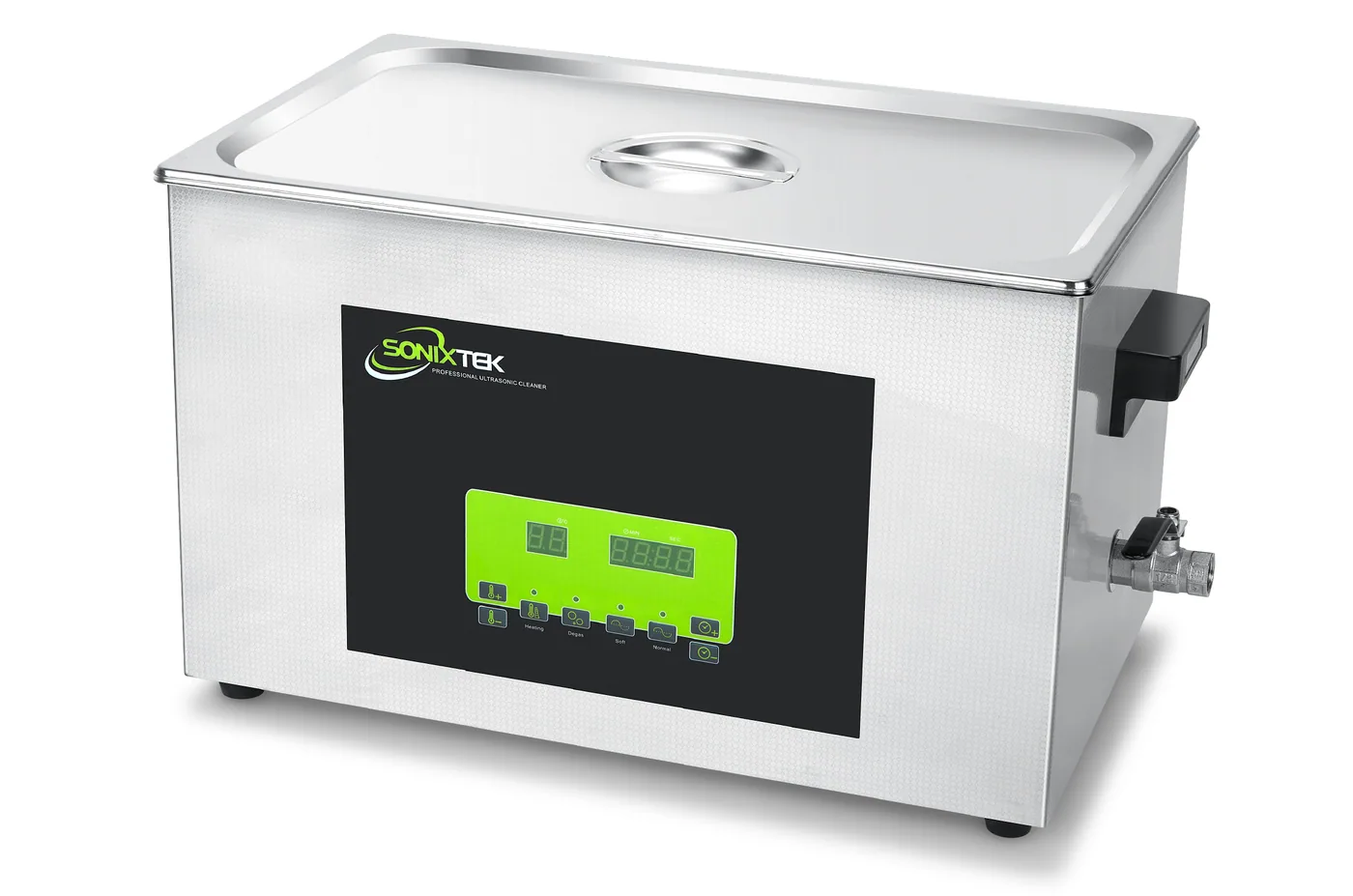

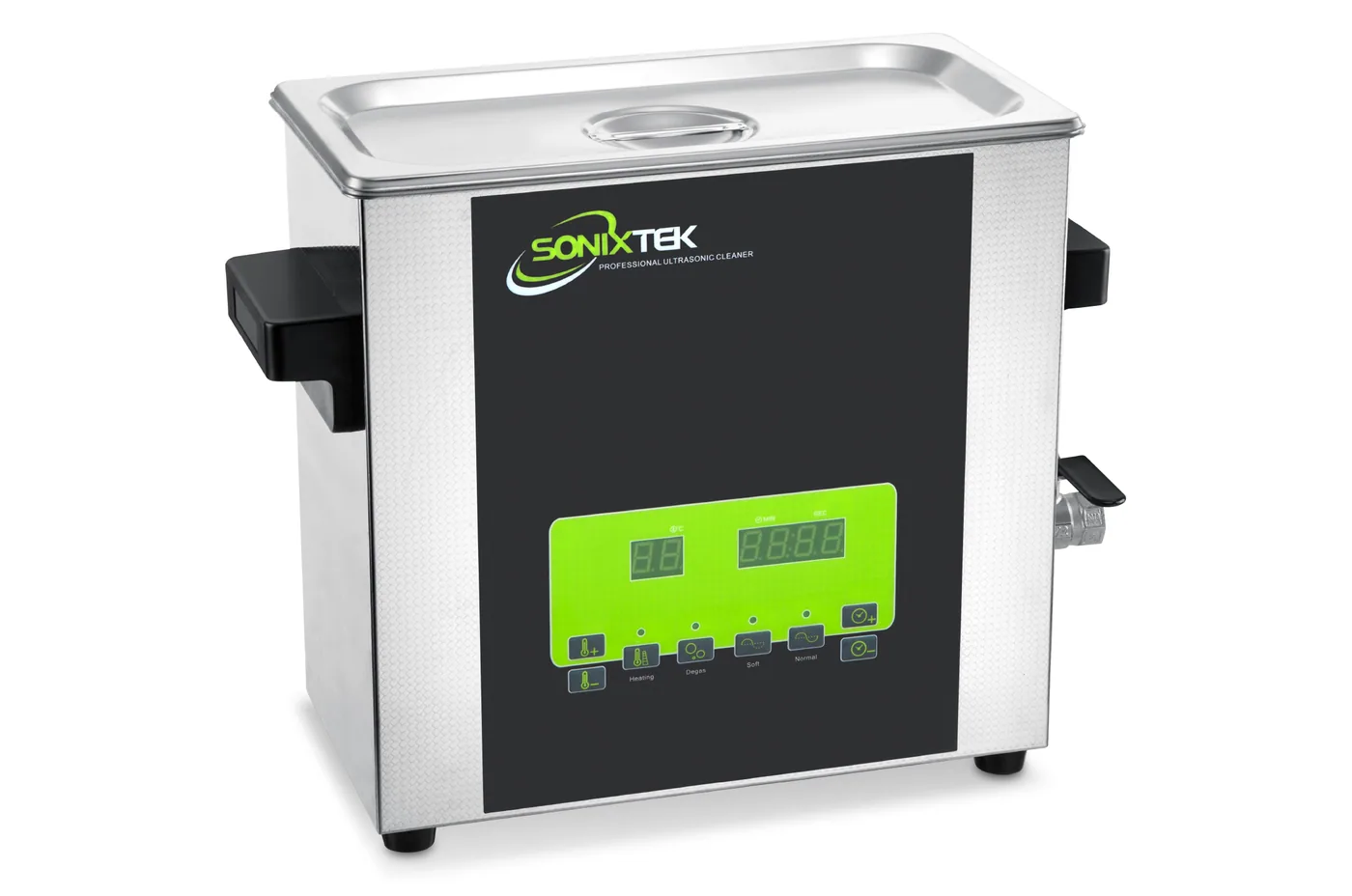

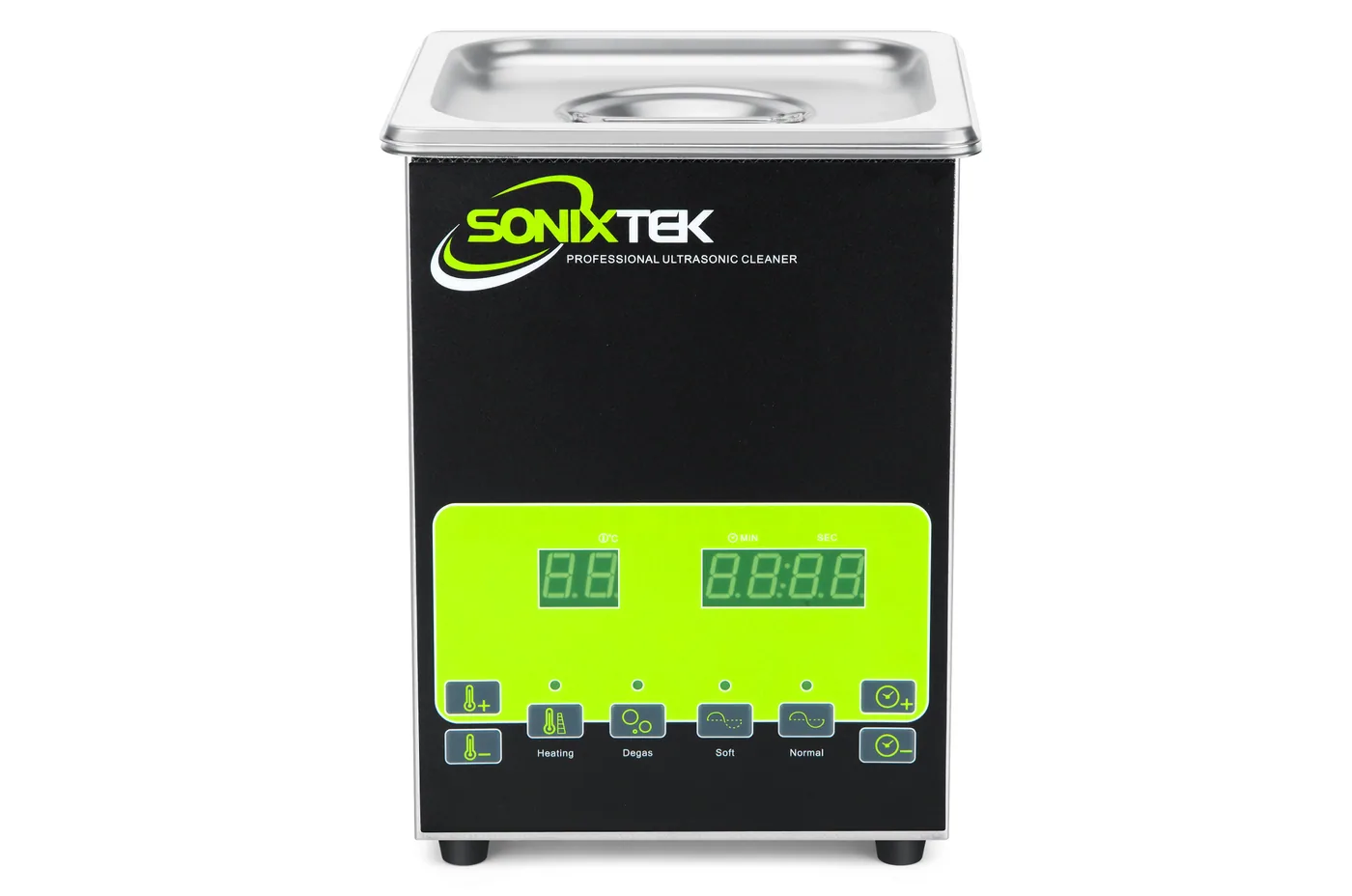

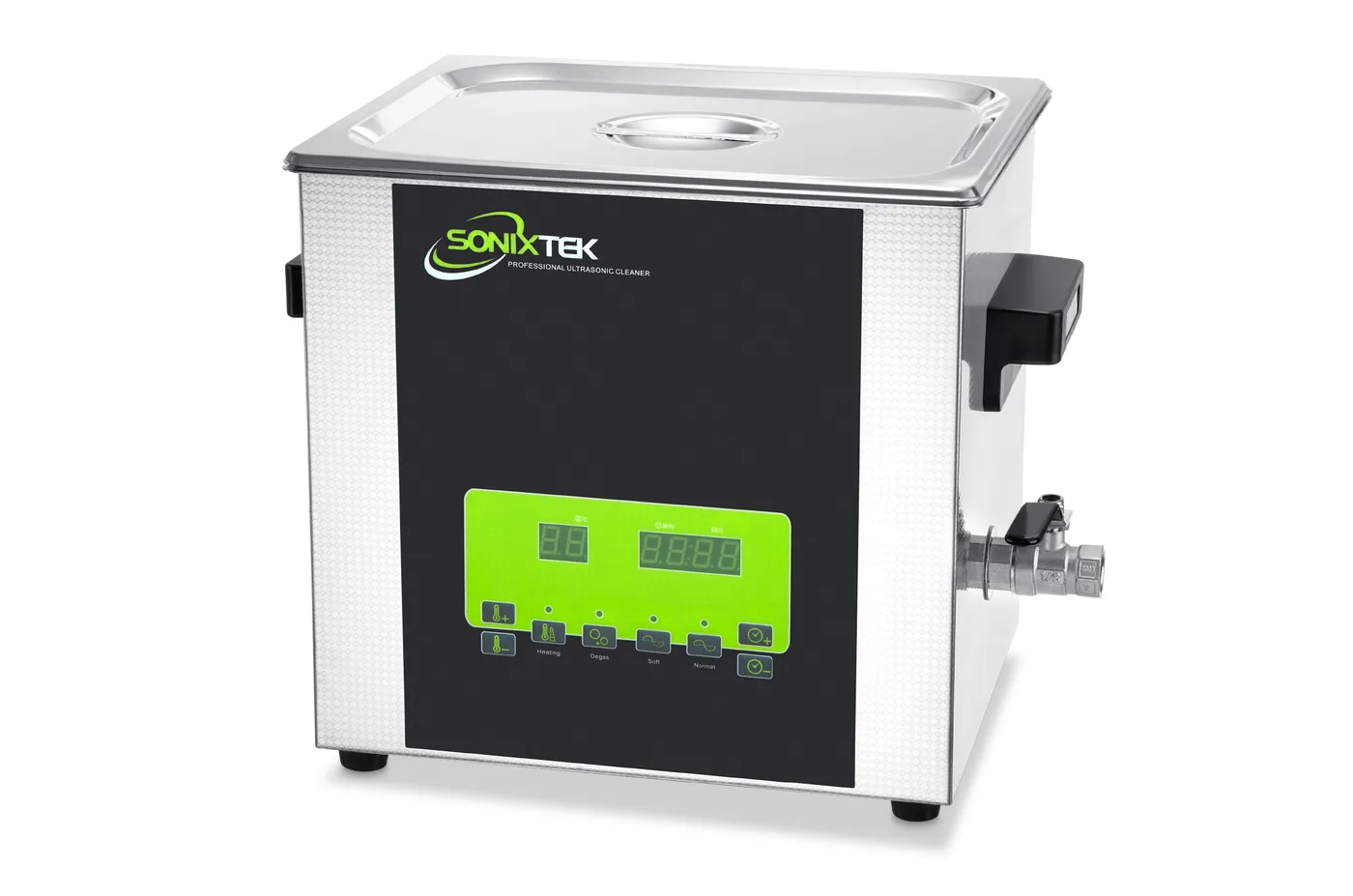

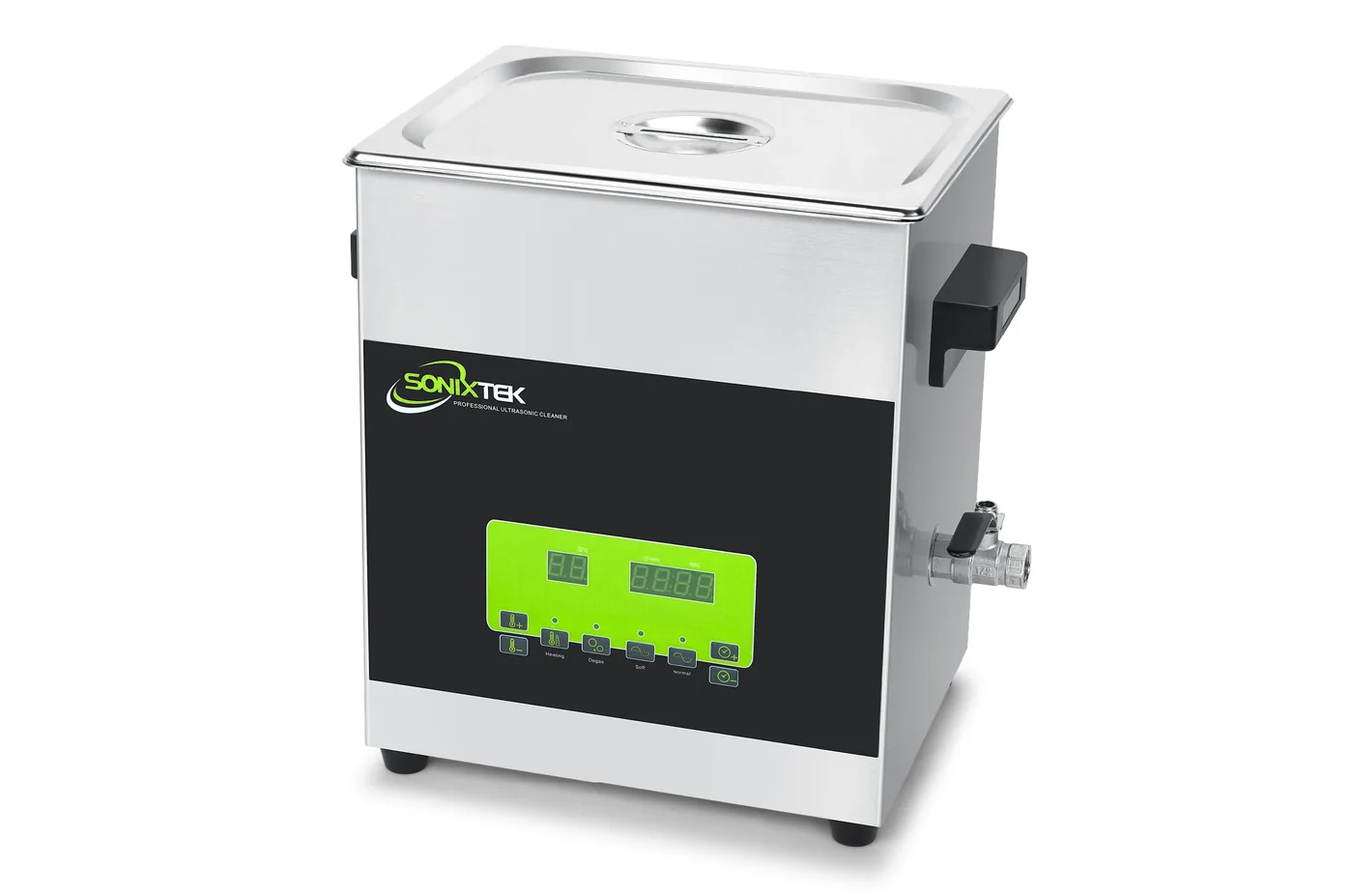

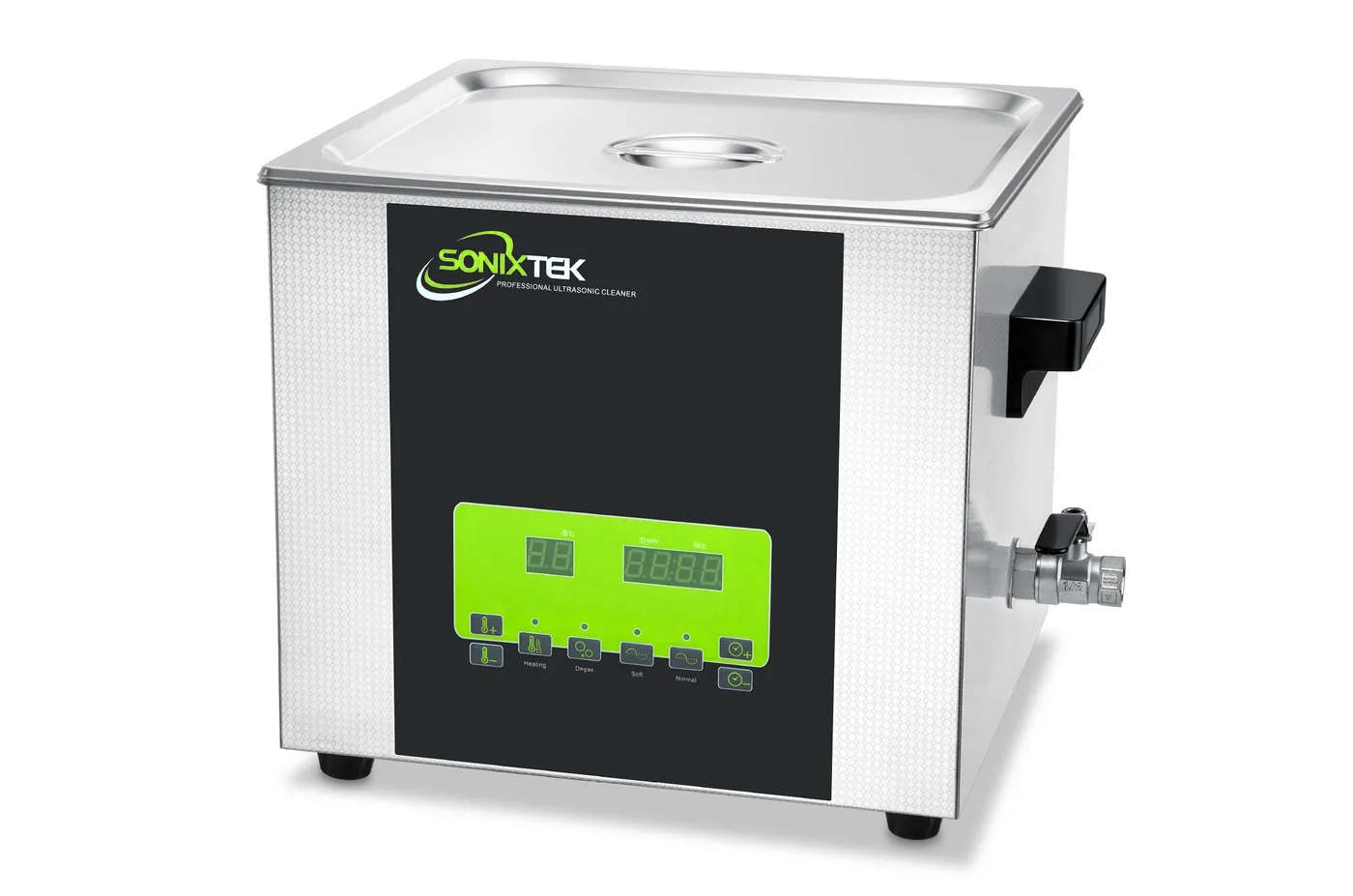

STS benchtop cleaners

Benchtop ultrasonic cleaners from 2 to 30 L (0.5 to 7.9 US gal) with heating, 40 kHz, degas and sweep, for the lab, the workshop and the service counter.

The STS benchtop range covers 2 to 30 litres (0.5 to 7.9 US gal) at 40 kHz. The SUS304 stainless steel tank is intended for aqueous alkaline and neutral cleaners; check acidic chemistry with us first. A digital panel controls heating up to 80 °C (176 °F), a 1–99 minute timer, degas and sweep.

Industrial ultrasonic

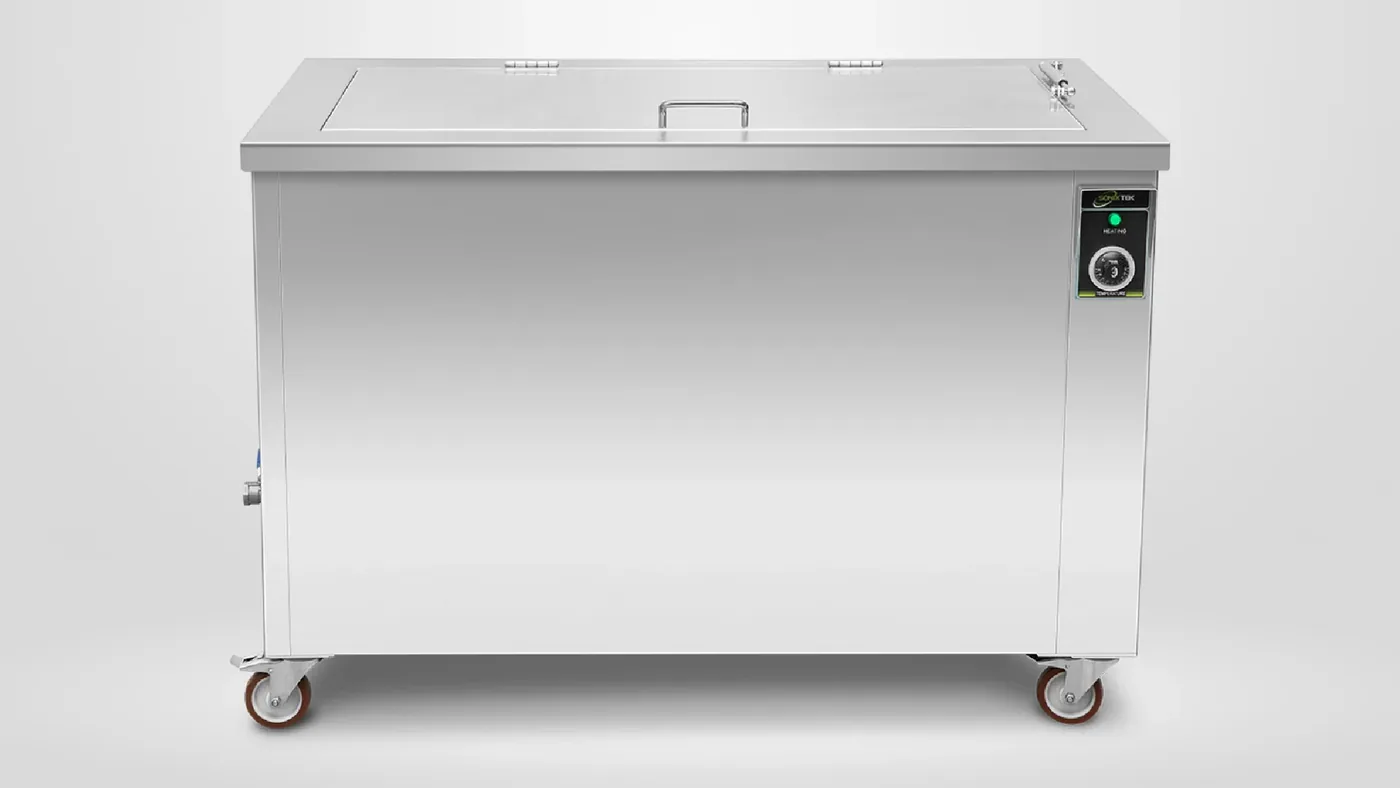

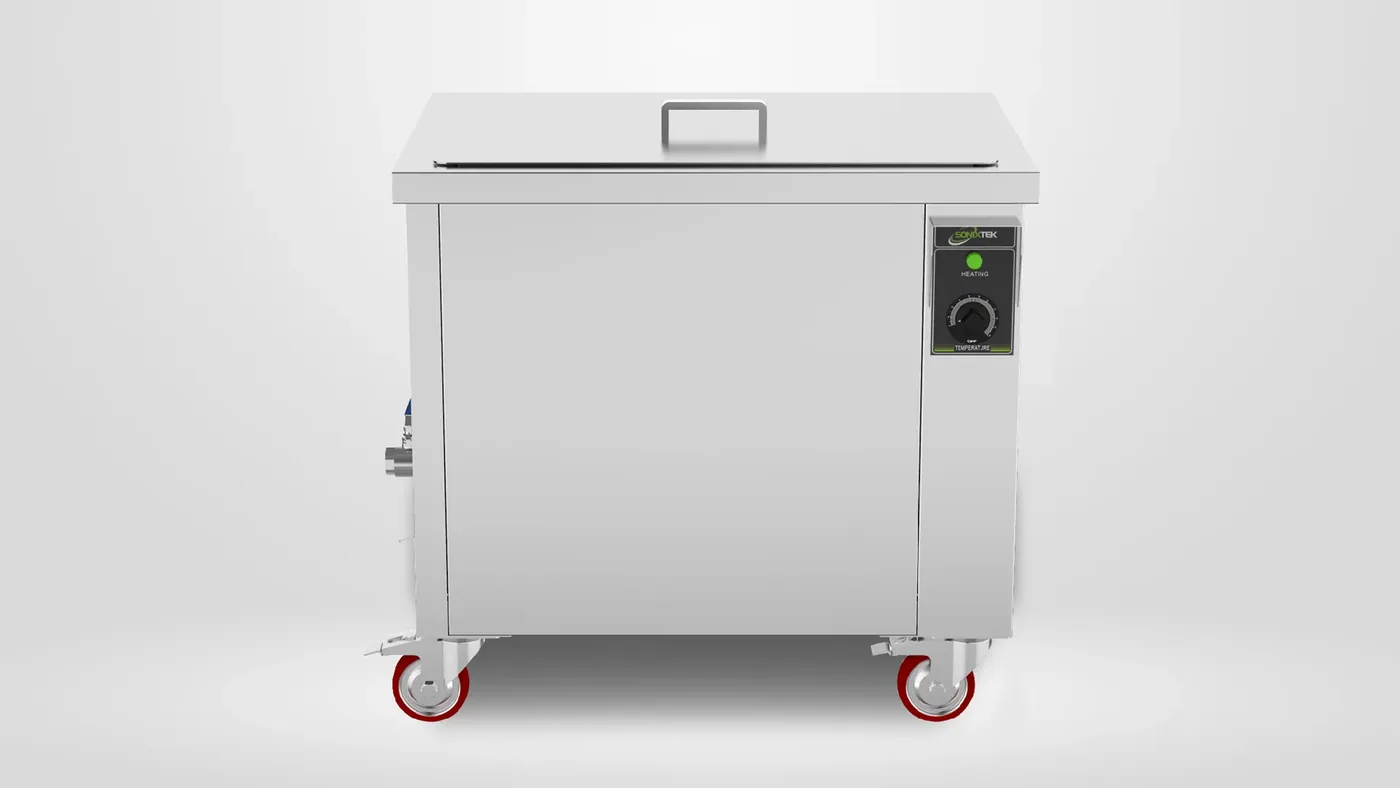

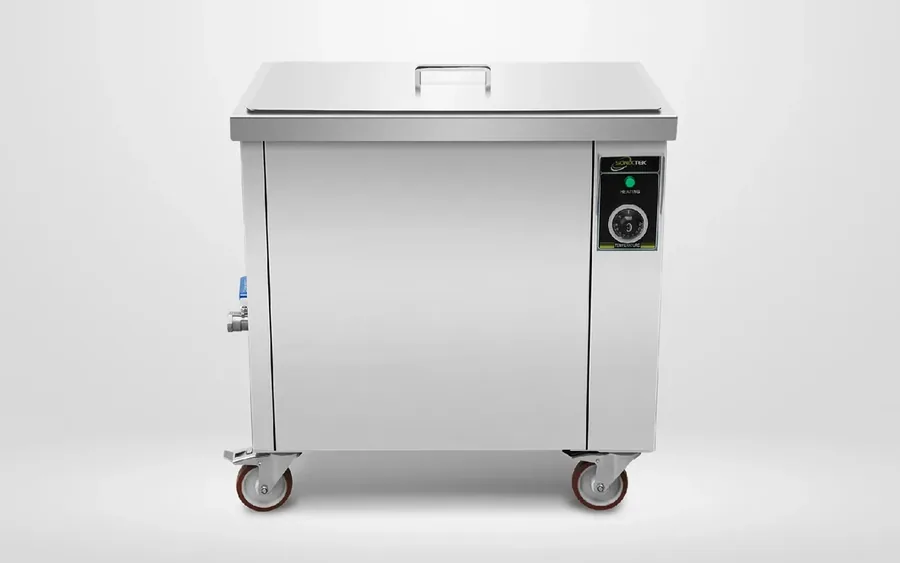

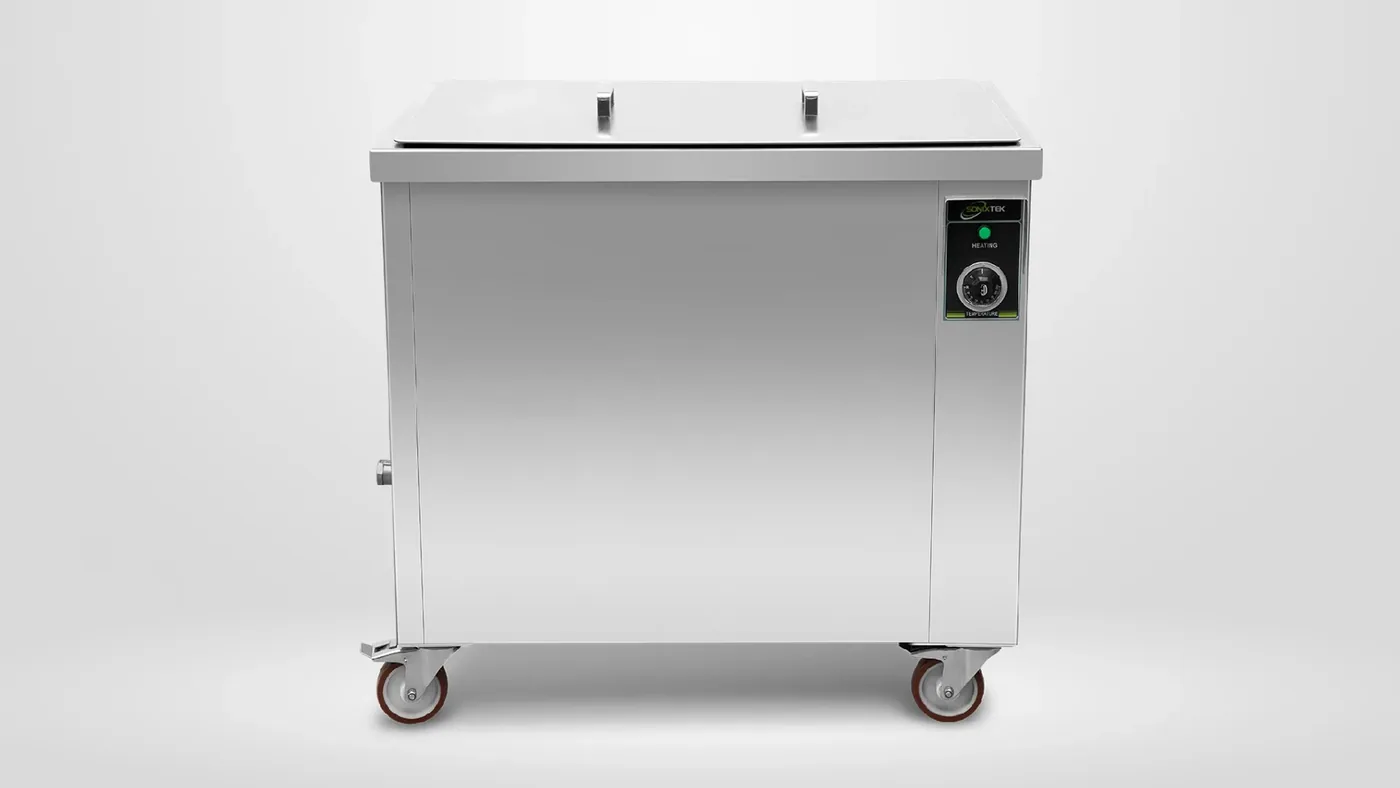

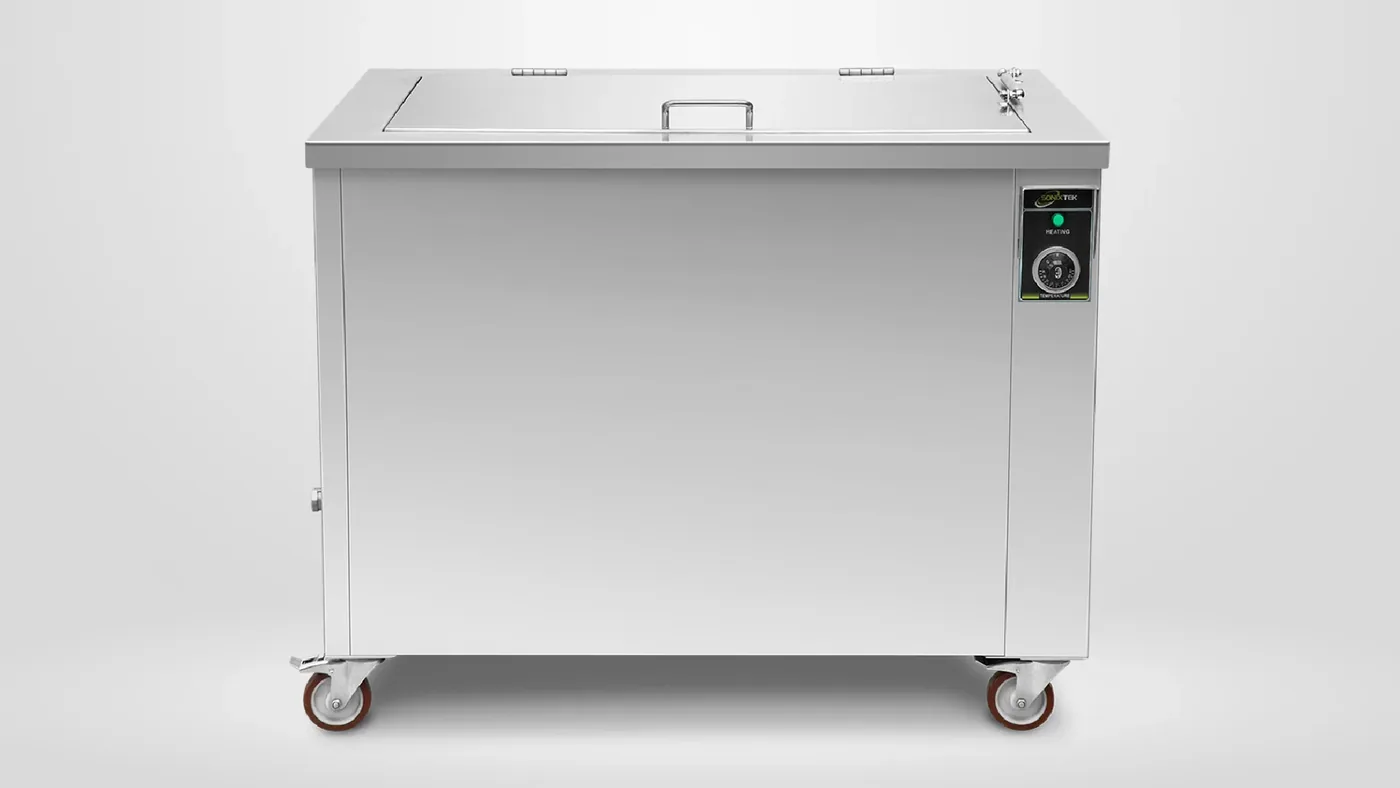

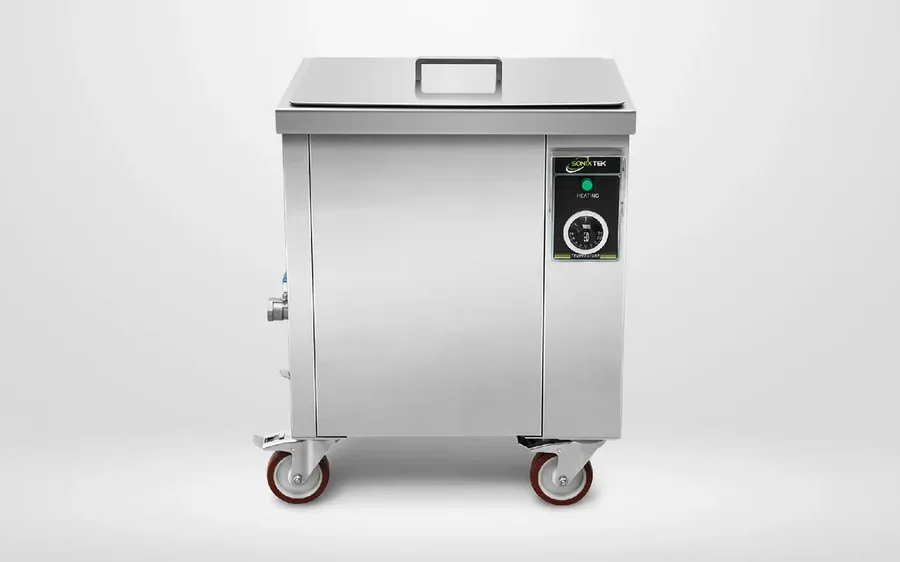

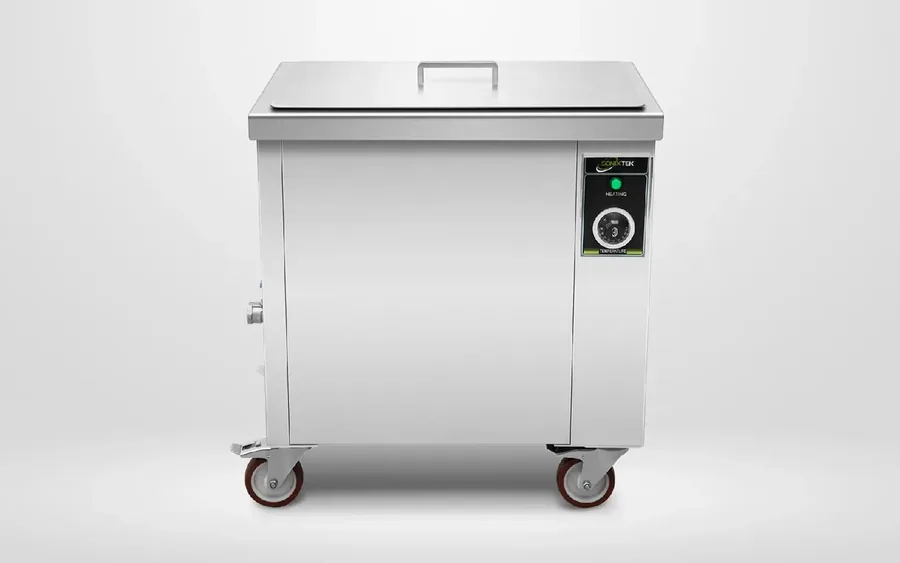

ST industrial ultrasonic tanks

Single-tank industrial ultrasonic cleaners from 40 to 400 L (11 to 106 US gal) in stainless steel, adjustable heating room temperature to 100 °C (212 °F), at 28 or 40 kHz, in standard sizes or built to your specification.

The ST series is a stainless steel heated ultrasonic tank in sizes from 40 to 400 litres (11 to 106 US gal). Ultrasound reaches blind holes, threads and crevices that a wash cabinet cannot, so carburettors, injectors and turbocharger housings need little or no hand work afterwards.

Industrial ultrasonic

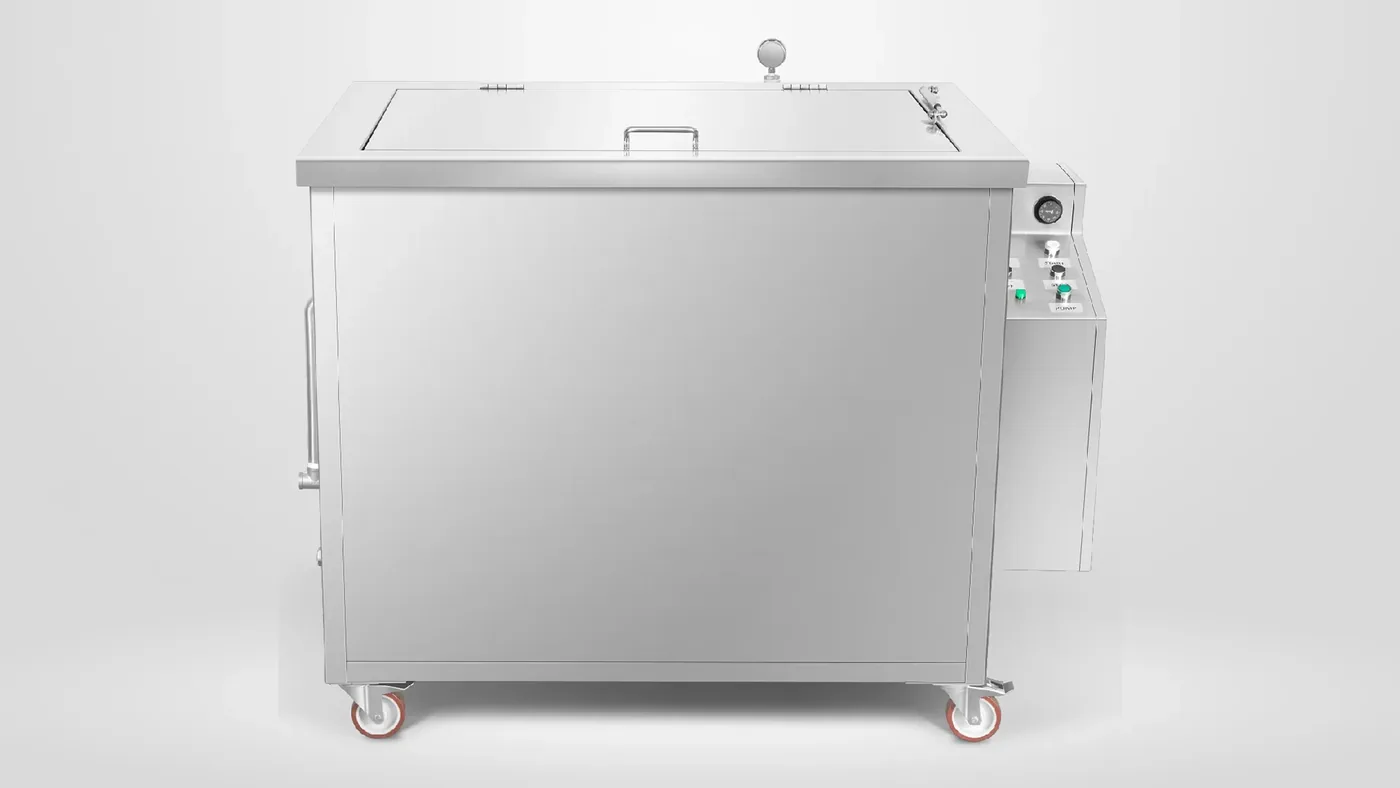

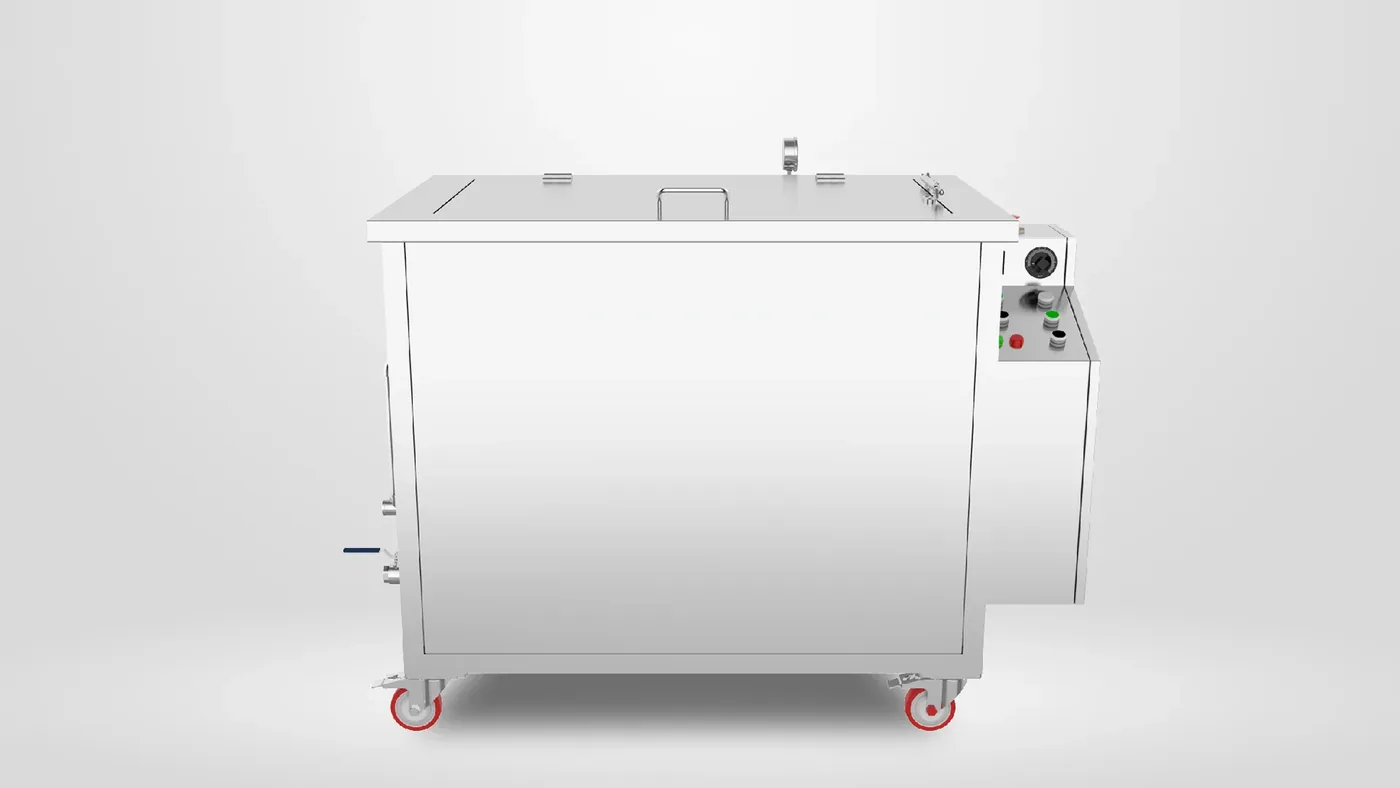

SF cleaners with filtration

Heated industrial ultrasonic cleaners of 225 to 360 L (59.4 to 95.1 US gal) with buffer tank, filtration pump and oil skimmer, so oil and swarf leave the bath.

The SF series has a buffer tank, filtration pump and oil skimmer alongside its ultrasonic cleaning tank. Oil and swarf leave the bath instead of settling on the next batch. Bath life depends on the soil load and chemistry.

Industrial ultrasonic

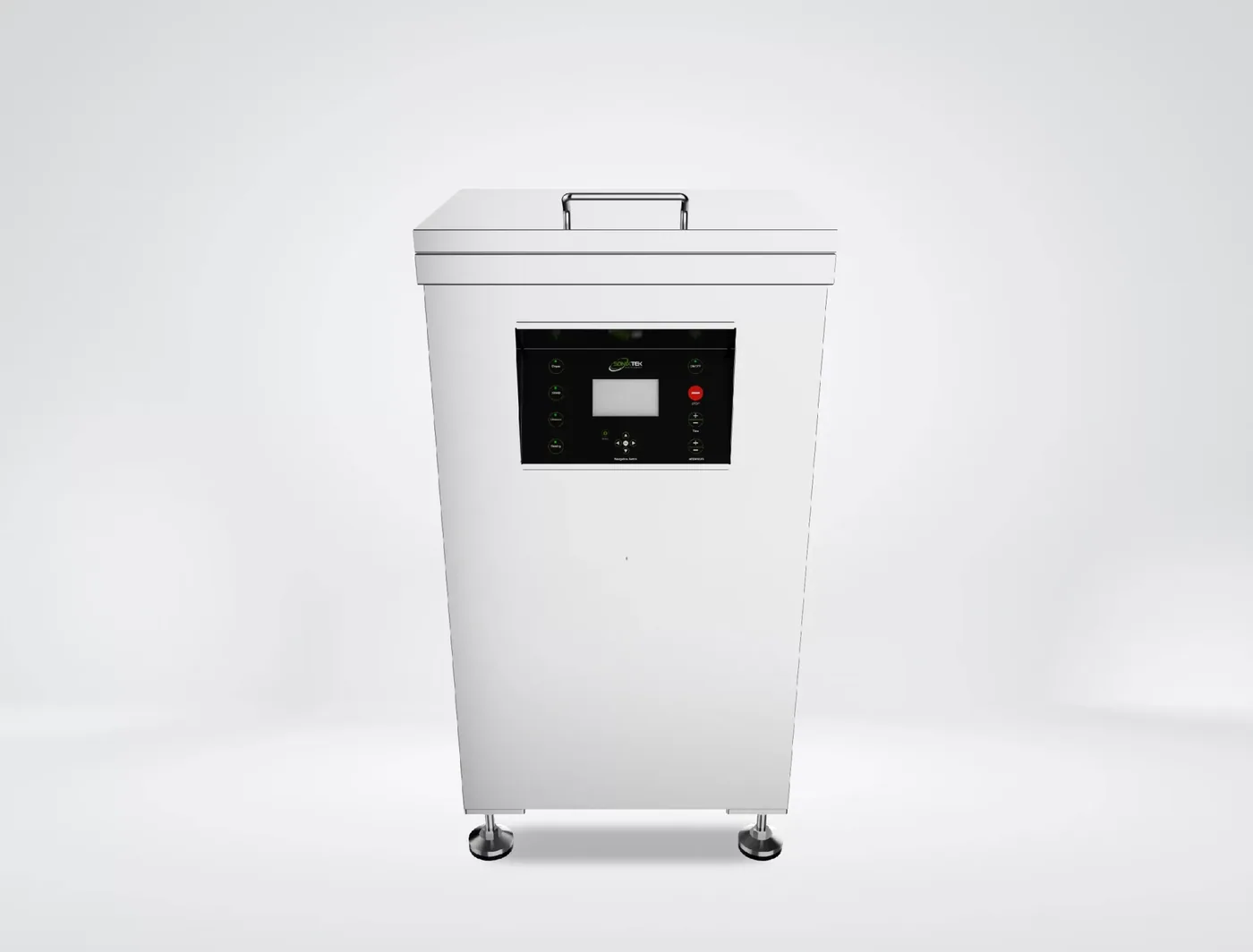

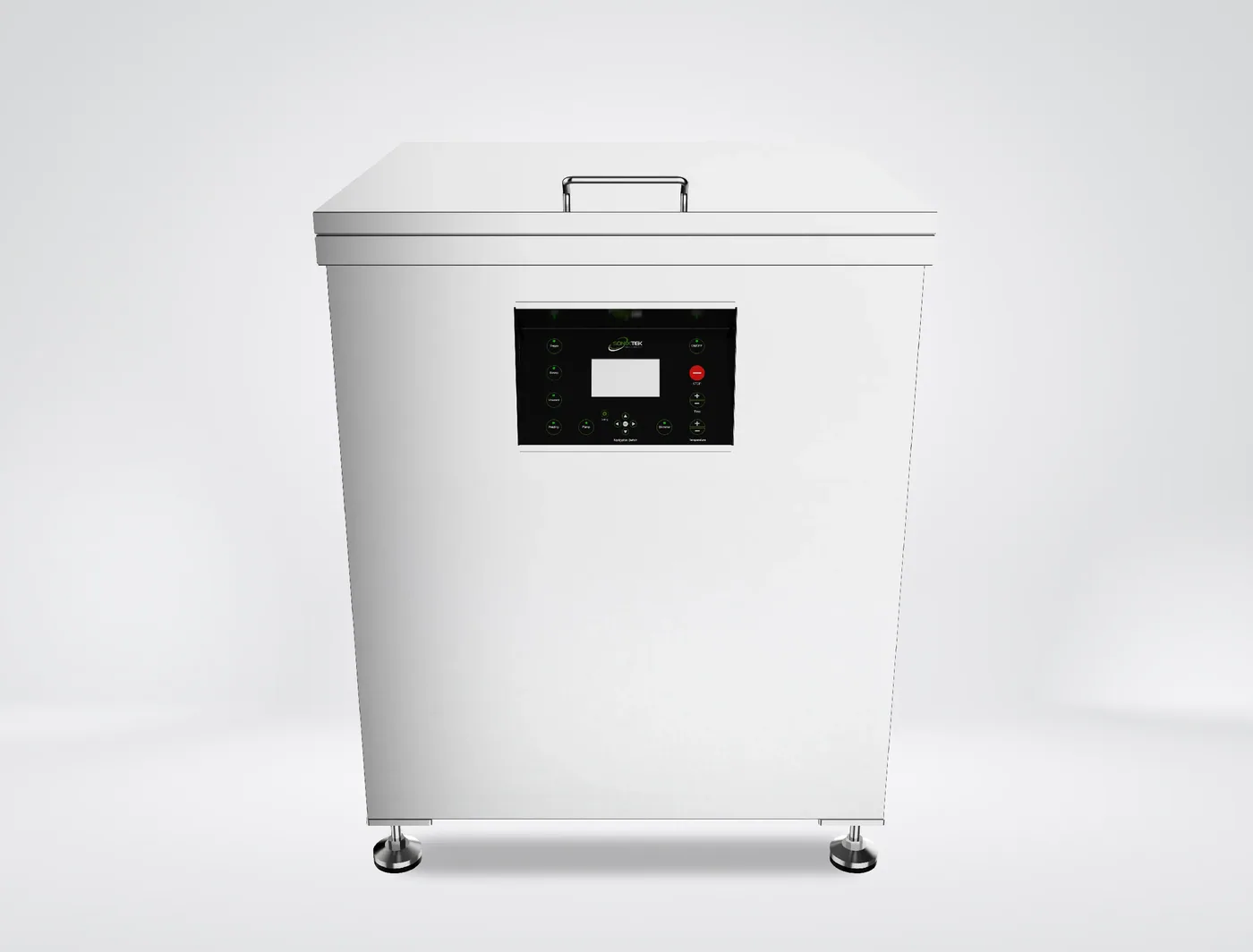

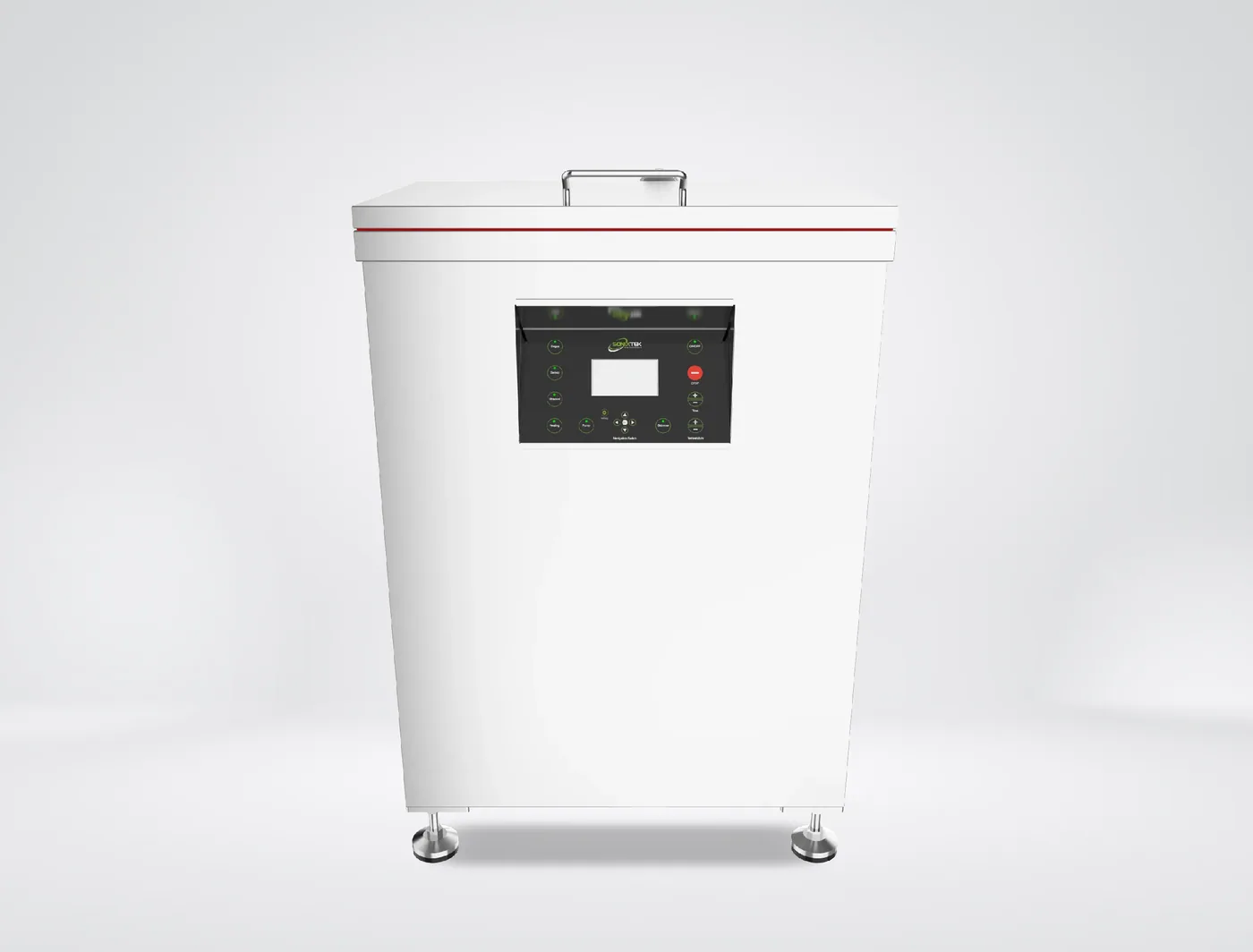

UMX Pro compact industrial cleaners

Compact industrial ultrasonic cleaners from 50 to 255 L (13.2 to 67.4 US gal) at 28/40 kHz, heated to 100 °C (212 °F), digital control with degas and sweep, filtration optional.

The UMX Pro series is a compact industrial ultrasonic cleaner in 50, 62, 88, 162 and 255 litres (13.2, 16.4, 23.2, 42.8 and 67.4 US gal), with the digital end of the range's controls: single or dual frequency at 28 and 40 kHz, ultrasonic power adjustable from 0 to 100 %, five programmable cycles and a 4.3-inch colour display. Degas and sweep are both standard.

Industrial ultrasonic

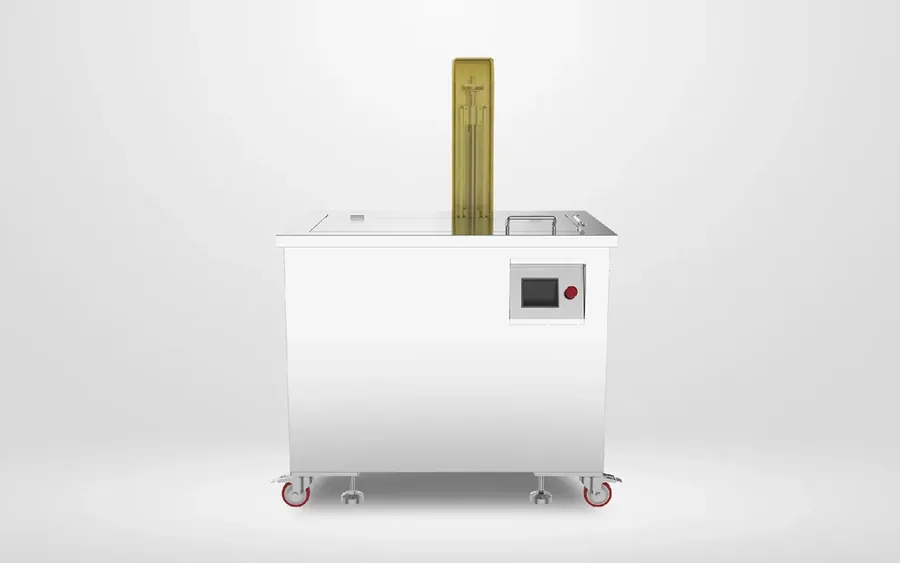

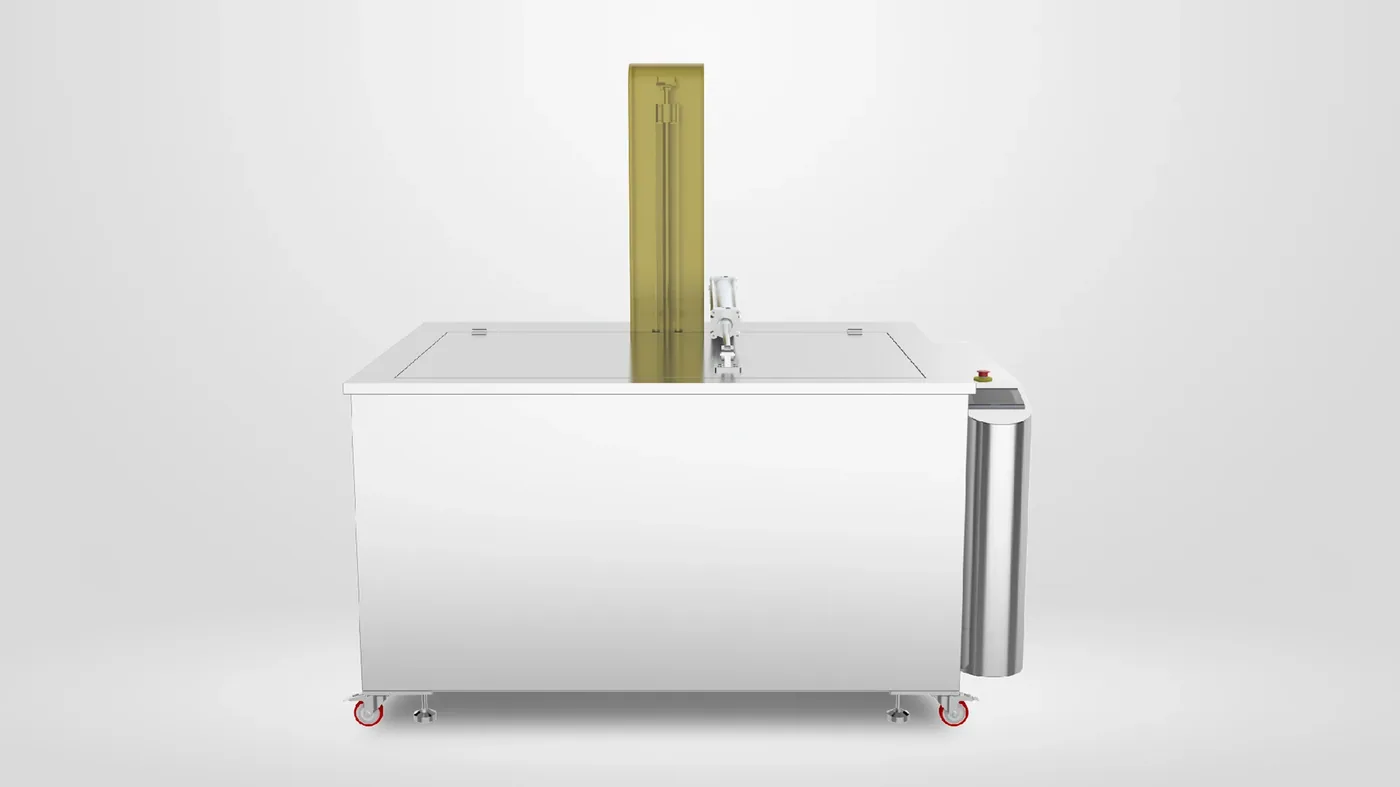

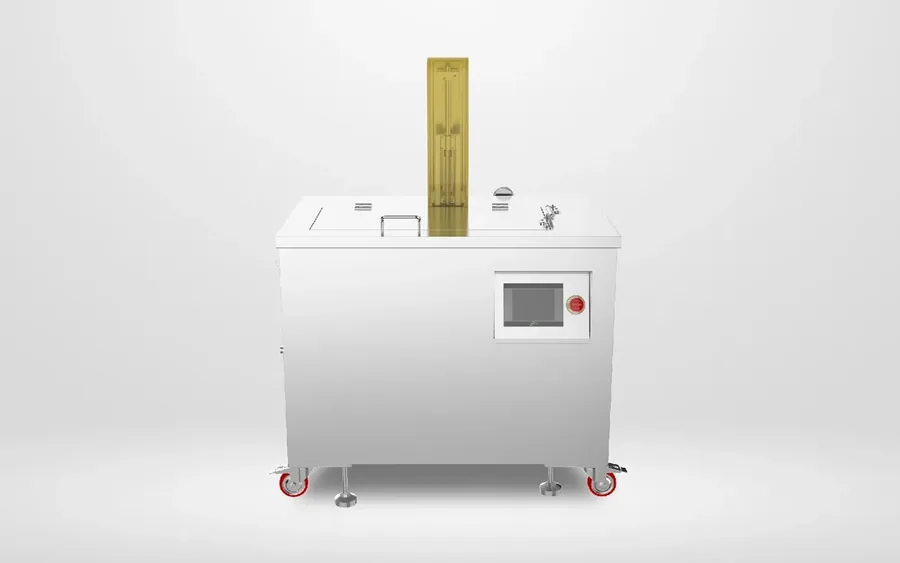

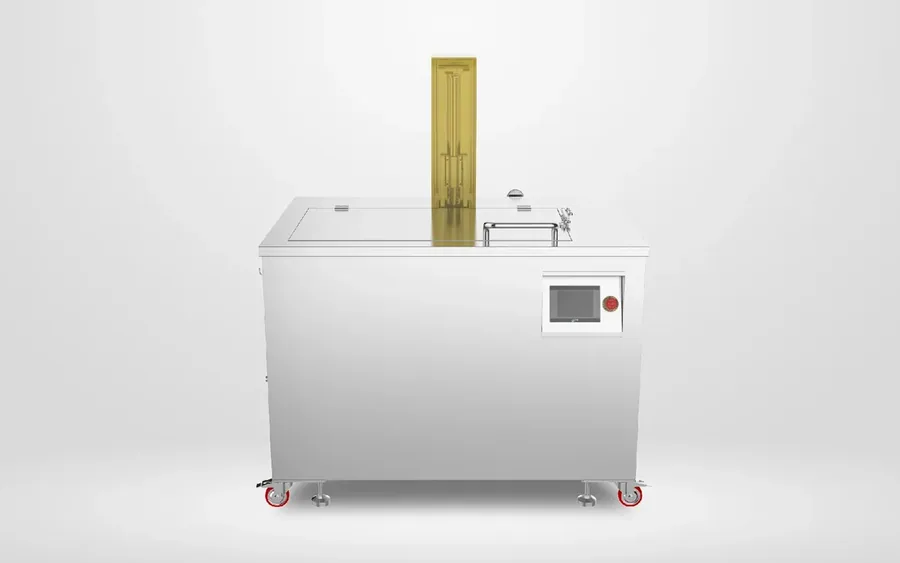

AL ultrasonic cleaners with lift

Single-tank industrial ultrasonic cleaners of 75 to 2000 L (20 to 528 US gal) with an automatic lift that lowers, agitates and raises the basket on a PLC cycle.

The AL series adds an automatic lift to the ultrasonic tank, so the basket is lowered, agitated and raised on a programmed cycle instead of by hand. That matters from about 75 litres (19.8 US gal) upward, where a loaded basket is too heavy to handle safely and where agitation is what carries loosened soil away from the part.

Industrial ultrasonic

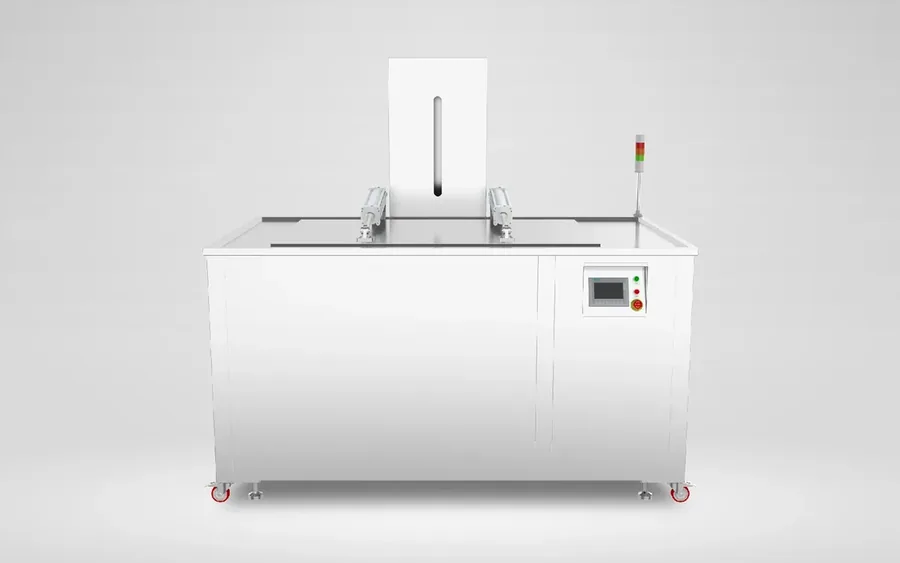

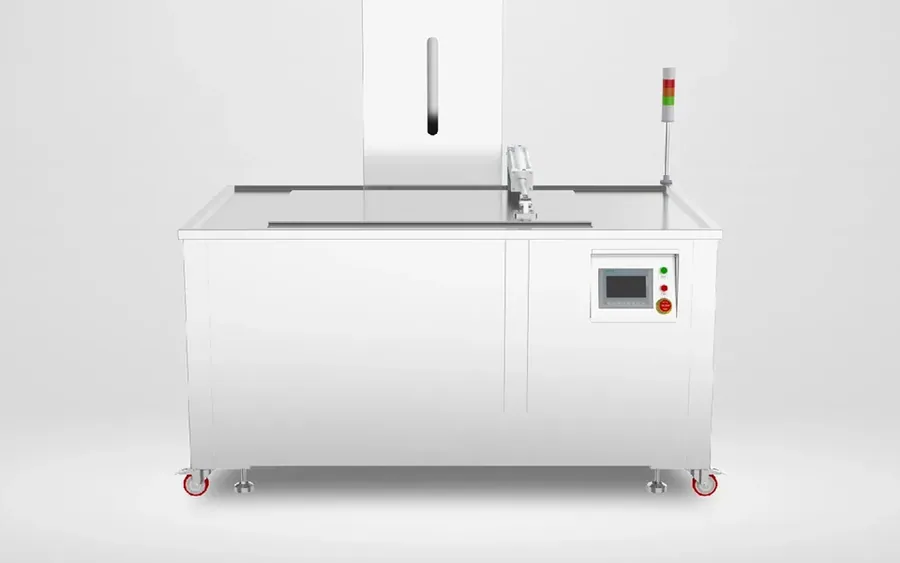

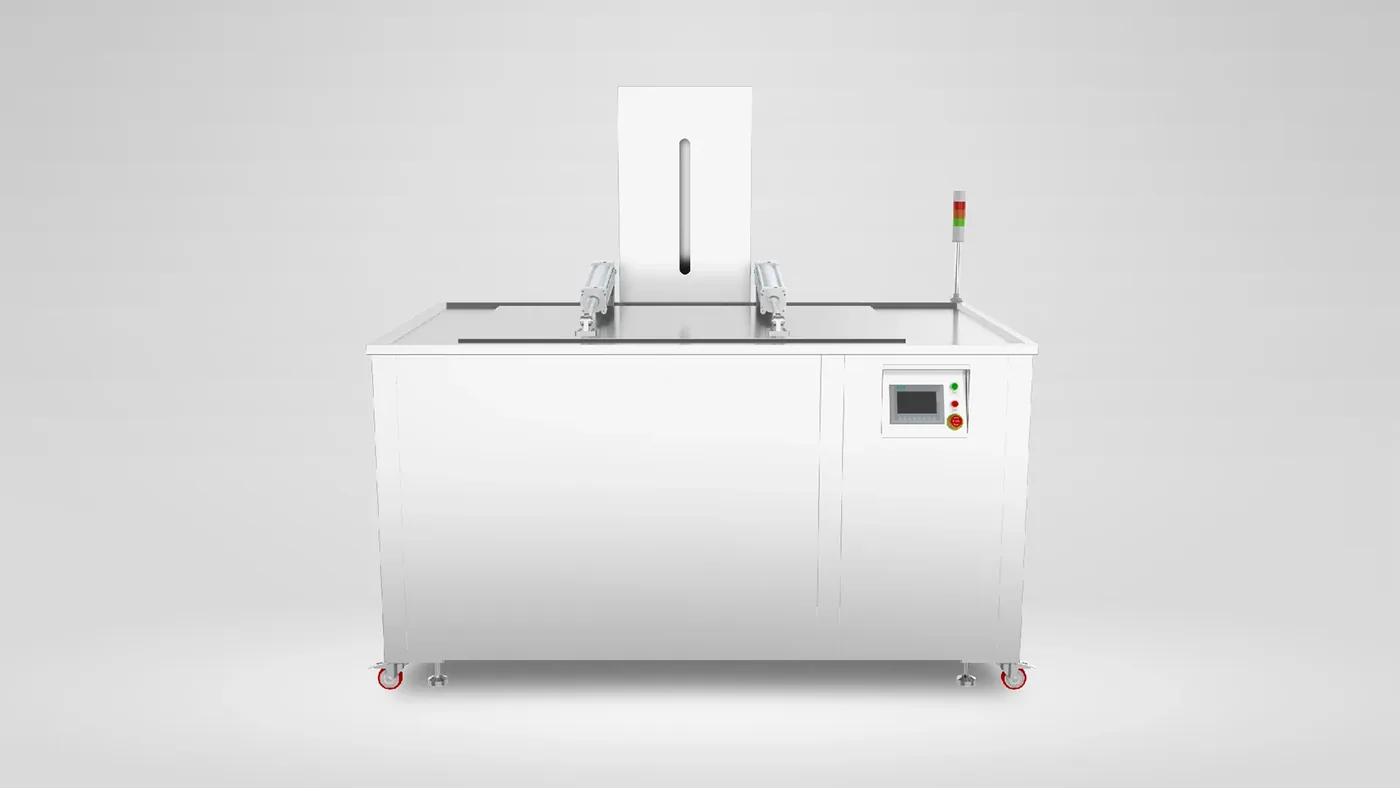

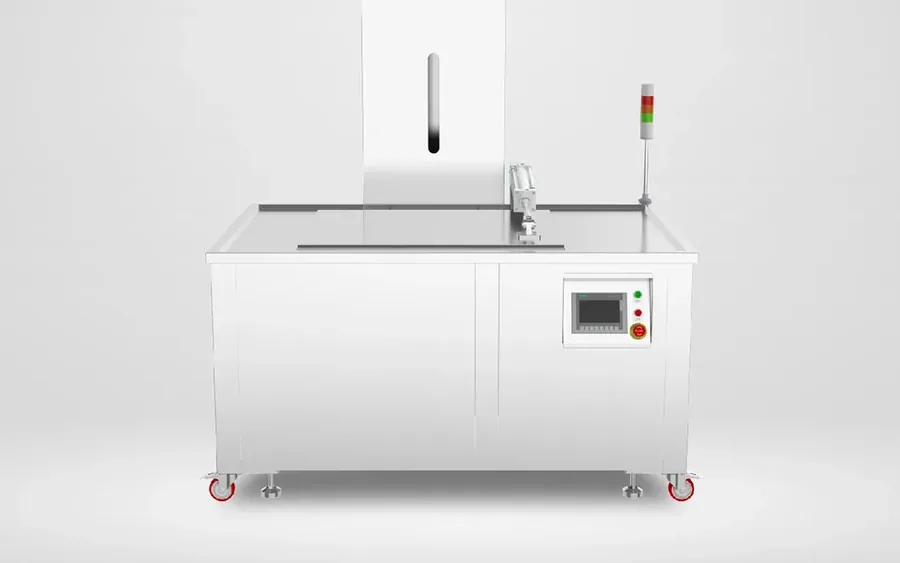

AU Advanced industrial cleaners

AU Advanced: single-tank automatic ultrasonic cleaners of 400 to 8000 L (106 to 2,113 US gal) with servo platform, PLC programmes, double filtration and oil skimmer.

The AU series is a full automatic cleaning system for high-volume production: from 400 to 8000 litres (106 to 2,113 US gal), with a servo-controlled platform up to 2000 kg (4,409 lb), eight programmable cycles and a Siemens PLC behind a 7-inch touchscreen with memory buttons. Load the basket, choose the programme, and the machine handles immersion, agitation and temperature itself.

Spray washers

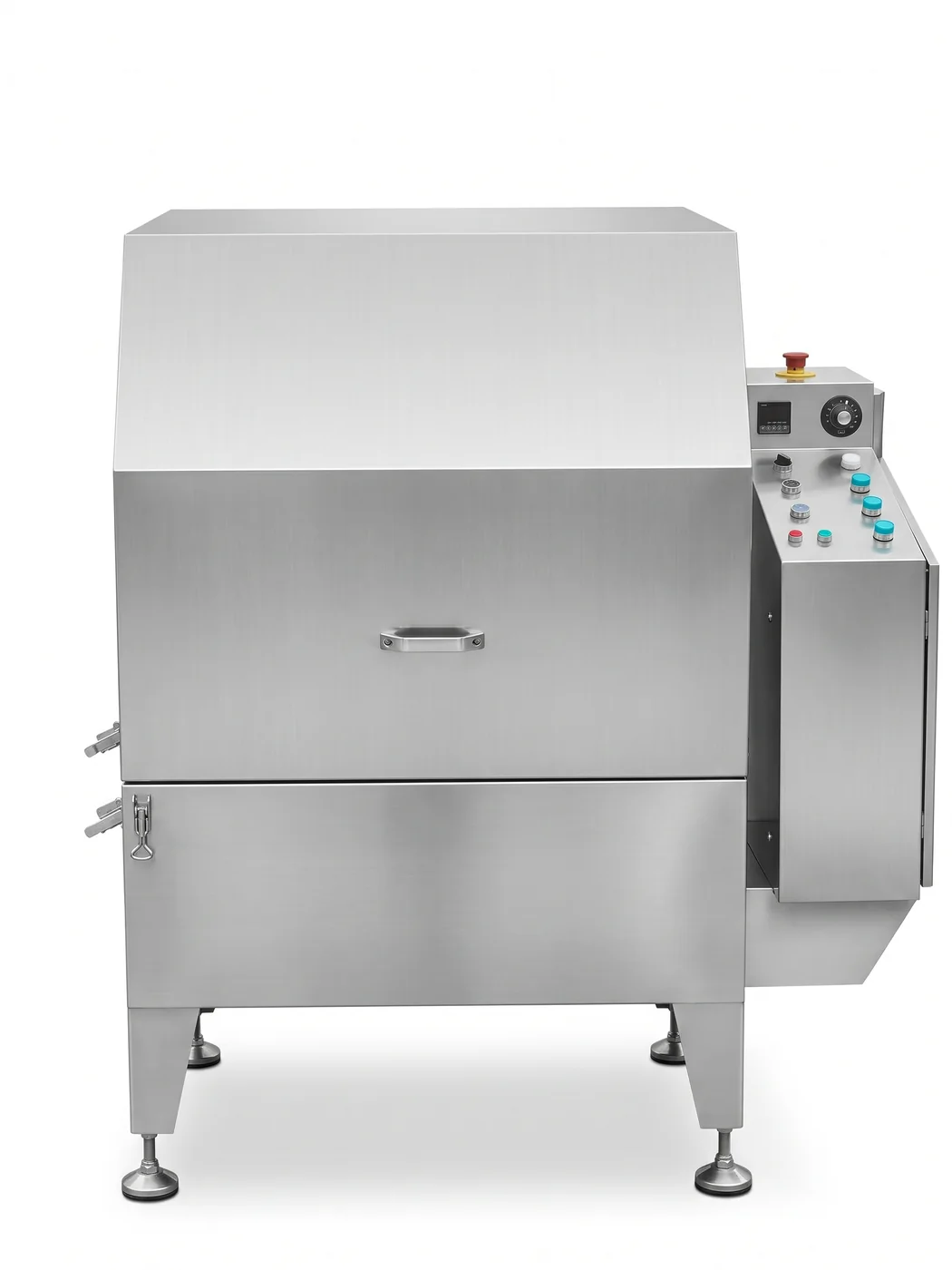

SPR rotating spray washers

Rotating spray washers of 250 to 780 L (66 to 206 US gal) for heavy, greasy parts: heated closed-loop wash at up to 3.3 bar (48 psi), front loading, all stainless steel.

The SPR series is a rotating spray washer, not an ultrasonic tank: the basket turns while spray jets wash the load at up to 3.3 bar (48 psi), in a closed-loop water circuit with heating and an oil skimmer. It is the right machine for heavy, greasy, open geometry — gearbox housings, engine blocks, castings — where the job is bulk soil removal rather than reaching into blind holes.

Drying tanks

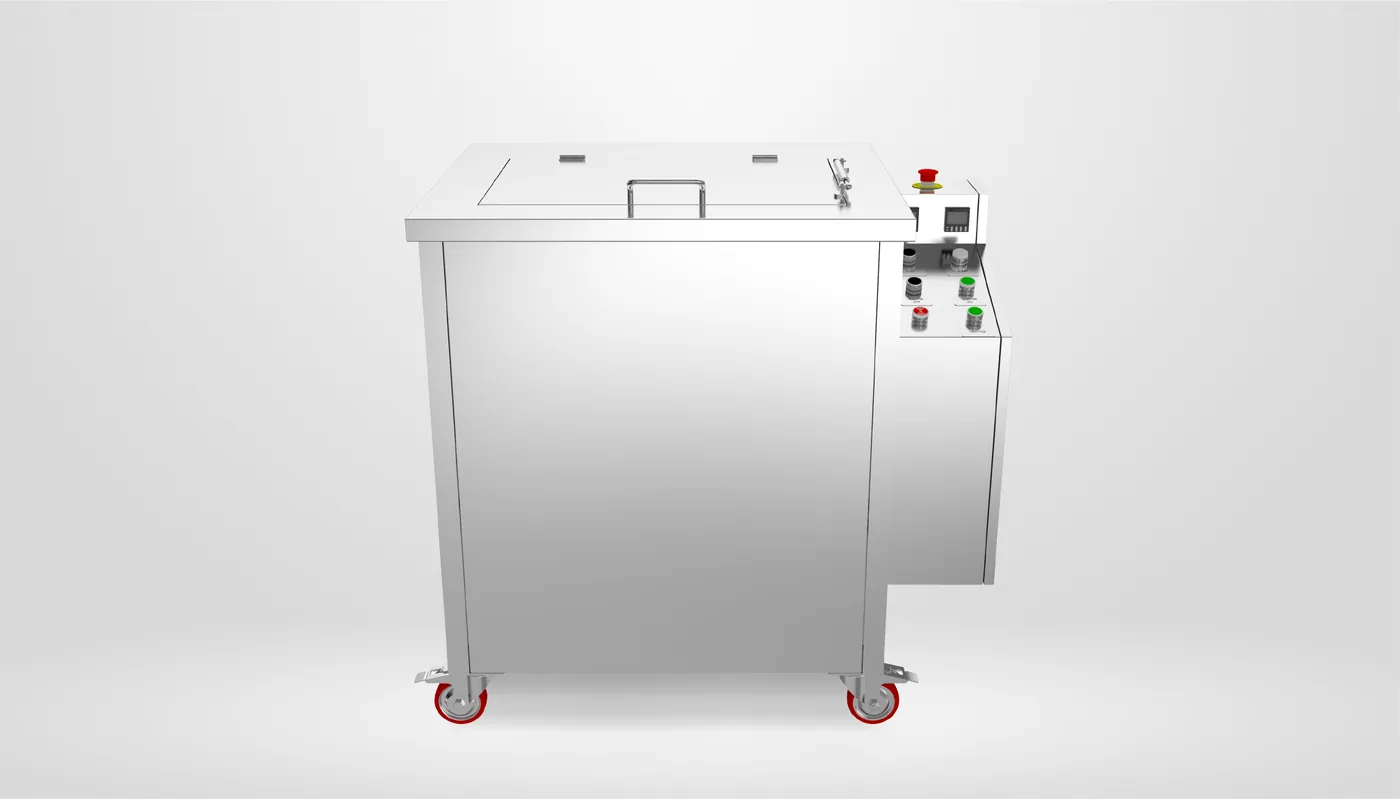

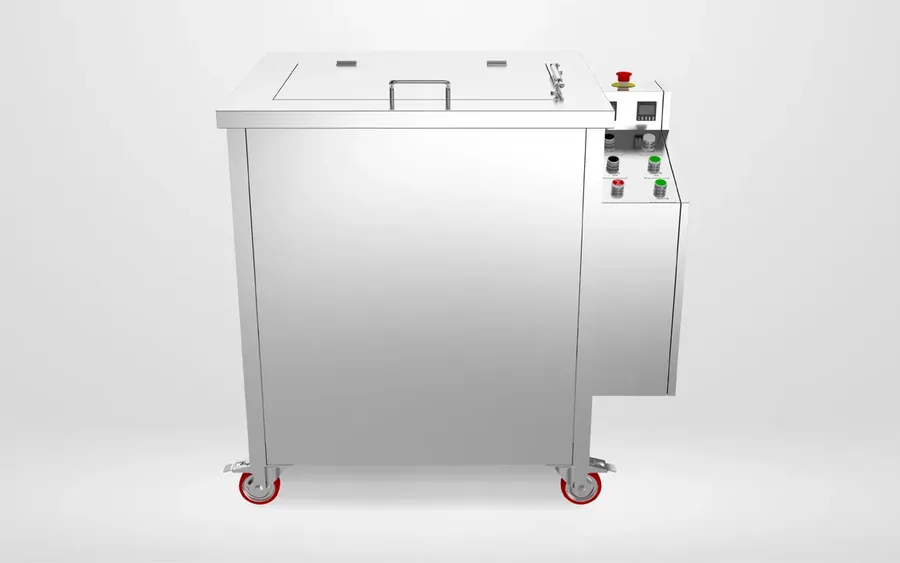

DT hot-air drying tanks

Hot-air drying tanks of 96 to 300 L (25.4 to 79.3 US gal) for the ST cleaners; the DT-96 and DT-206 take the ST-96 and ST-206 basket without repacking.

The DT series dries what the cleaner has just washed. A heating turbine moves hot air through the load, so water is off the part before it can flash-rust or carry spots into assembly. The DT-96 and DT-206 match the ST-96 and ST-206, so their basket comes out of the cleaner and goes straight into the dryer without being repacked; the DT-300 takes baskets up to 820 × 520 mm (32.3 × 20.5 in).

Multi-tank lines

Multi-tank cleaning lines

Multi-tank ultrasonic cleaning lines built to order: wash, rinse, passivate and dry with automatic basket handling; MT-75 is a reference configuration.

A multi-tank line is built around your process rather than chosen from a table: several tanks in sequence — wash, rinse, passivate, dry — with the baskets moved between them by a servo-controlled handling system, each tank independently set for cycle time and temperature, and the whole line run from a 7- to 19-inch touchscreen, sized to the line, on a multi-IO Siemens PLC.

Become a distributor

Sell and service Sonixtek in your country

We are looking for distributors with their own service team. You get the full range from 2 to 8,000 litres (0.5 to 2,113 US gal), custom builds in your own brand, worldwide engineering support and protected territories.

Let's find the right fit

Not sure which size you need?

Send us the part, the quantity per hour and the soil you are removing. We will size the tank and the frequency with you.

Discuss your process
