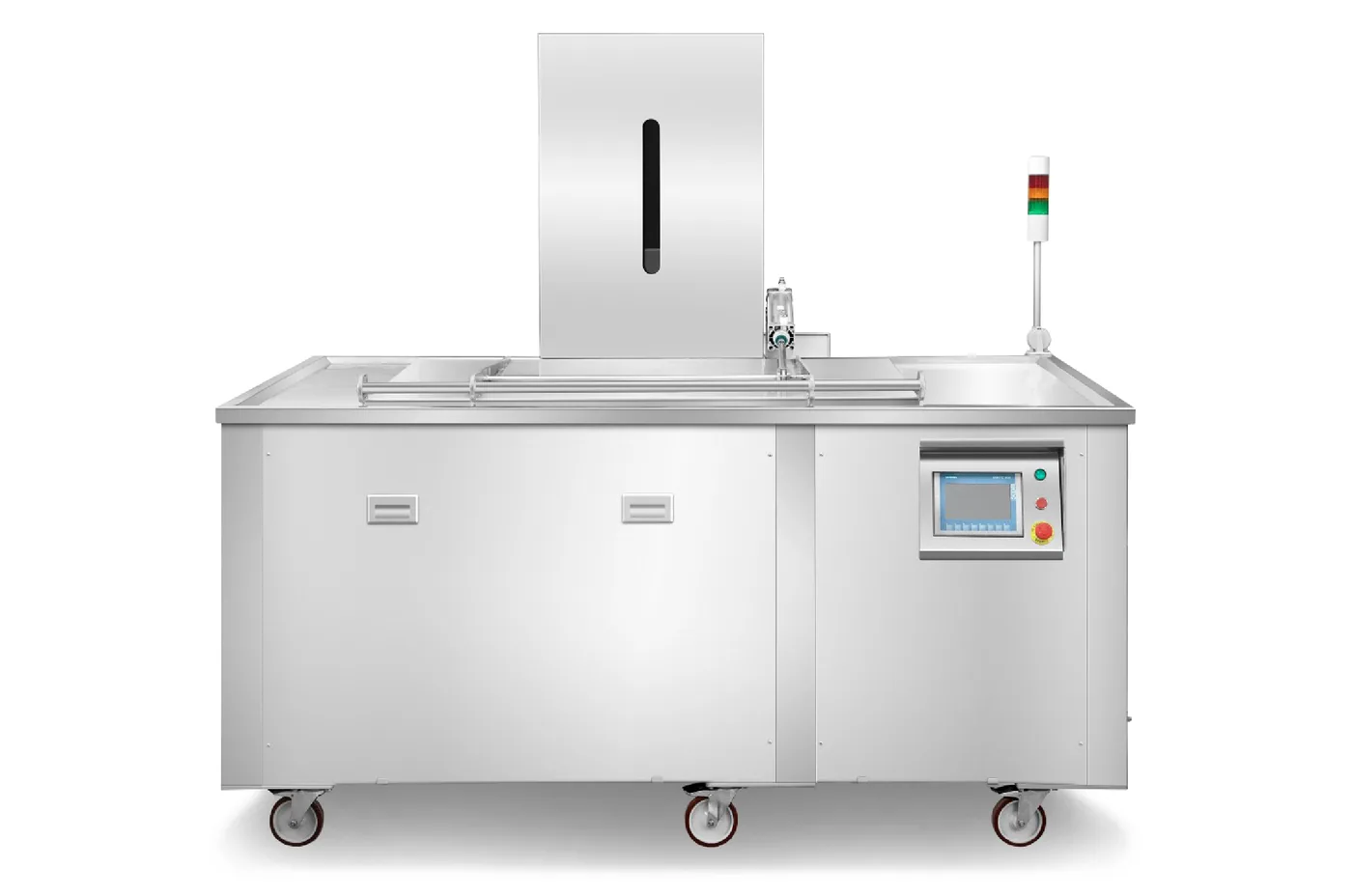

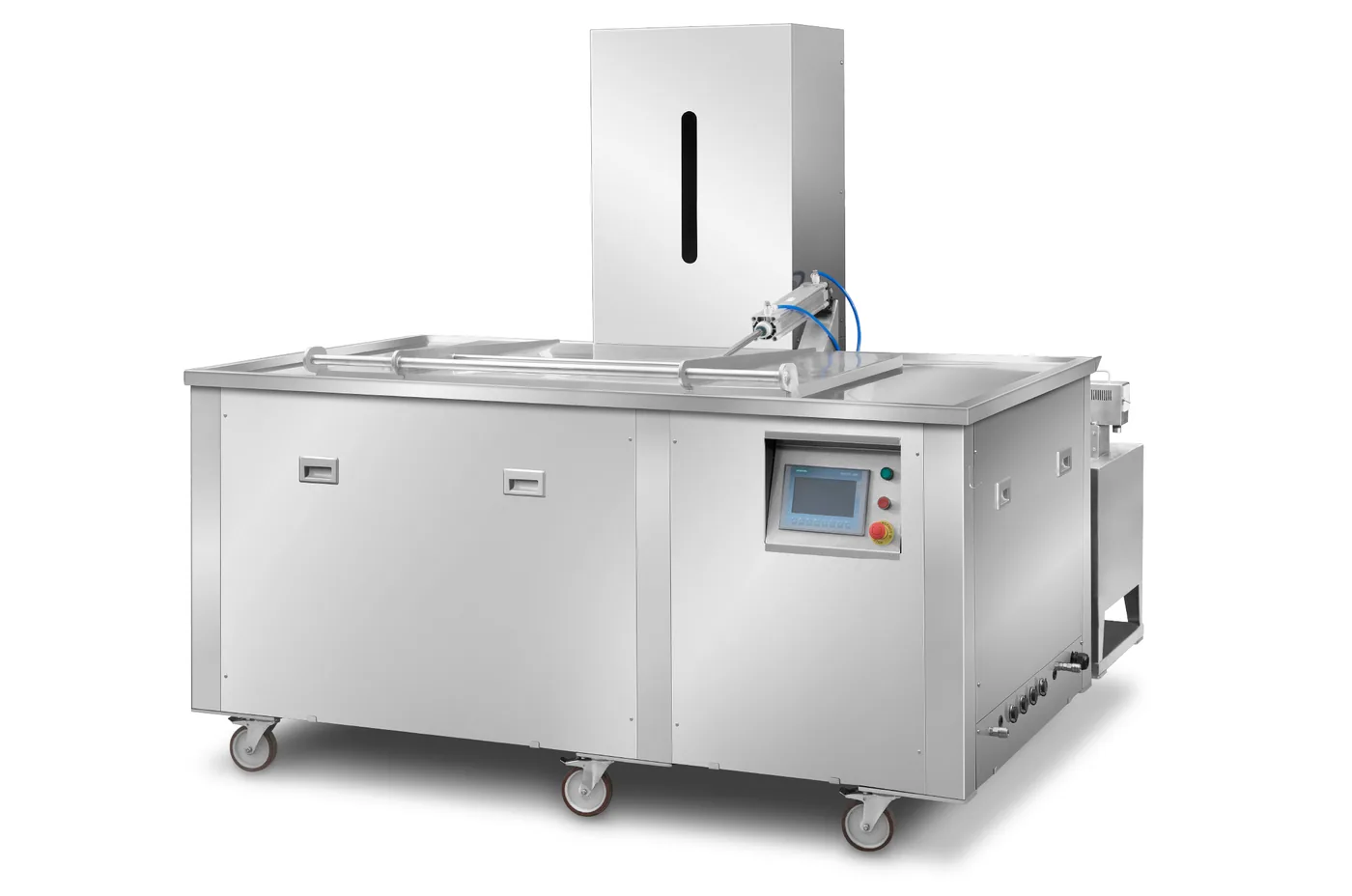

AU Advanced industrial cleaners
800 L
Explore the machine, check the working dimensions and discuss the configuration for your process.
Price on request
Price on request
Technical documentation is available on request.
About this series
The AU series is a full automatic cleaning system for high-volume production: from 400 to 8000 litres
Features
Every option can be combined and configured to your process.

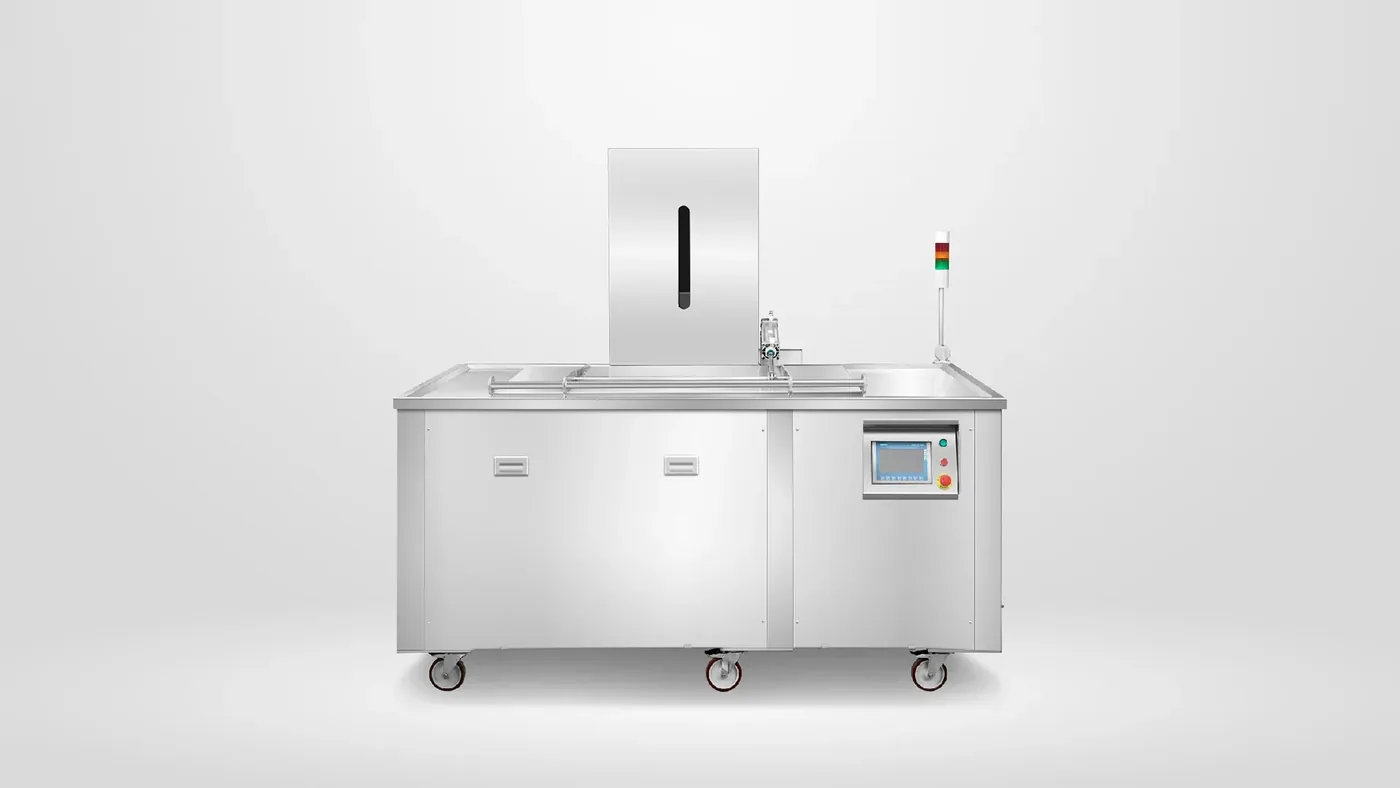

AU Advanced industrial cleaners
One large ultrasonic tank, from 400 to 8000 litres
Select a function for the details.

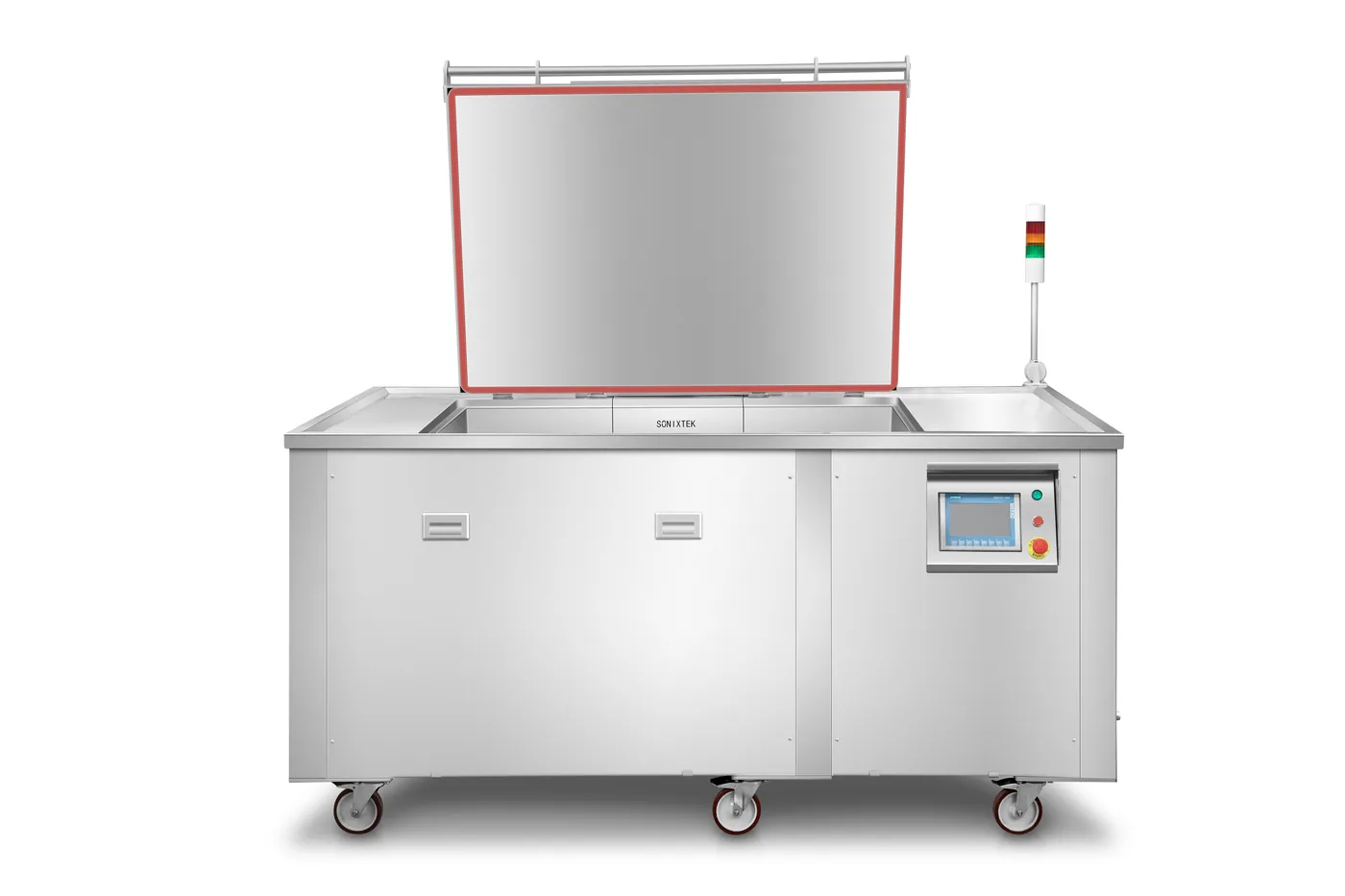

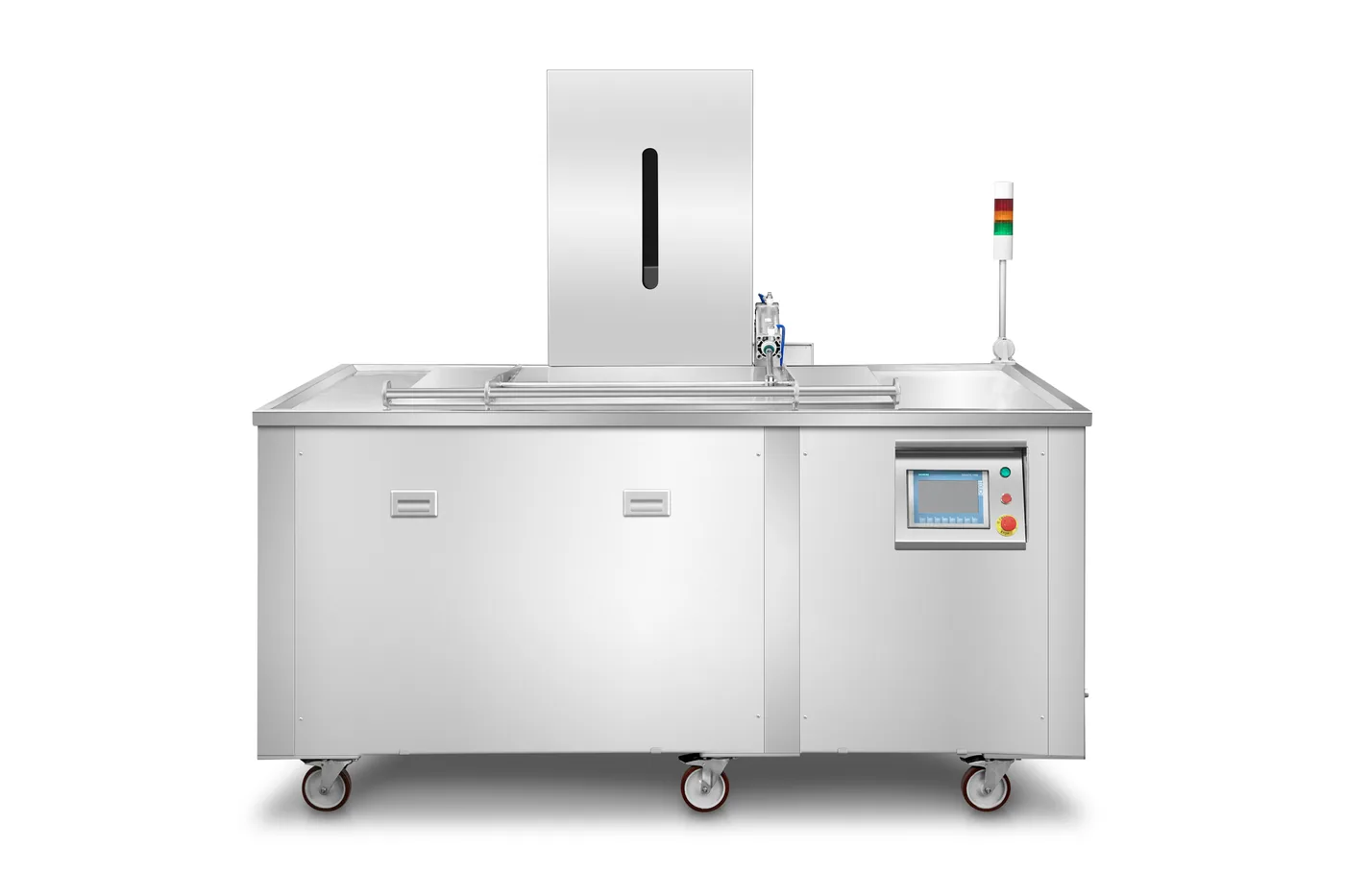

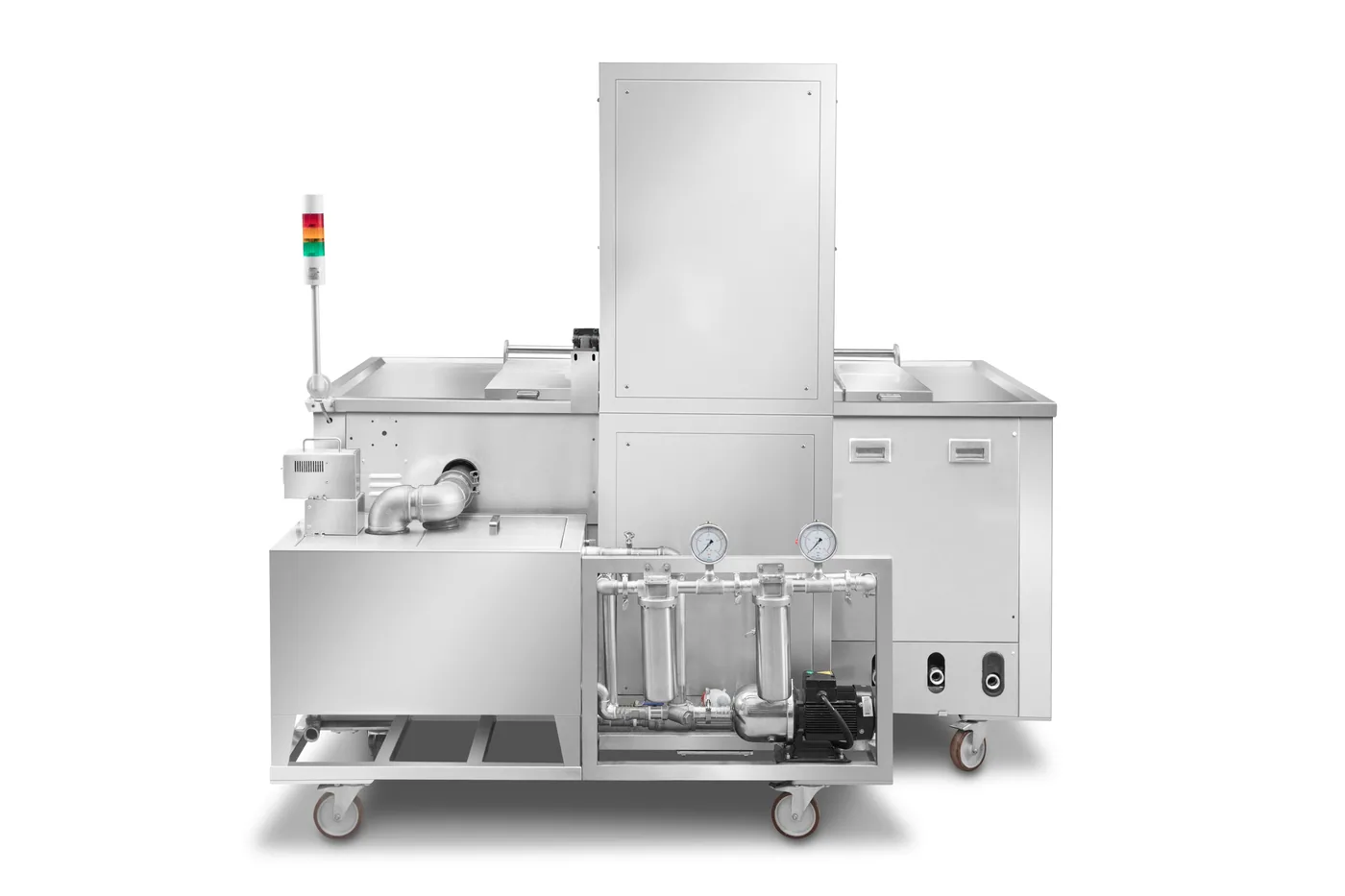

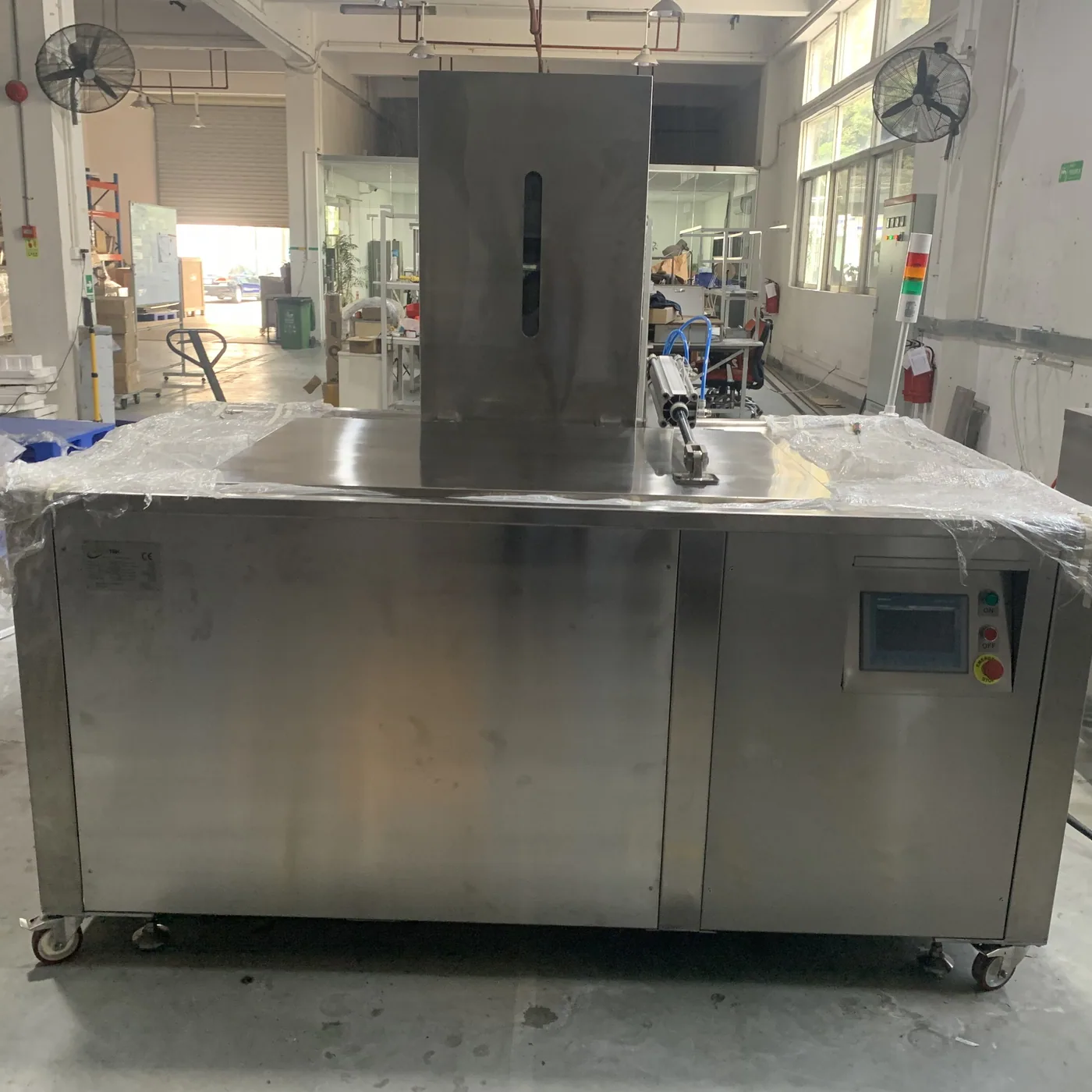

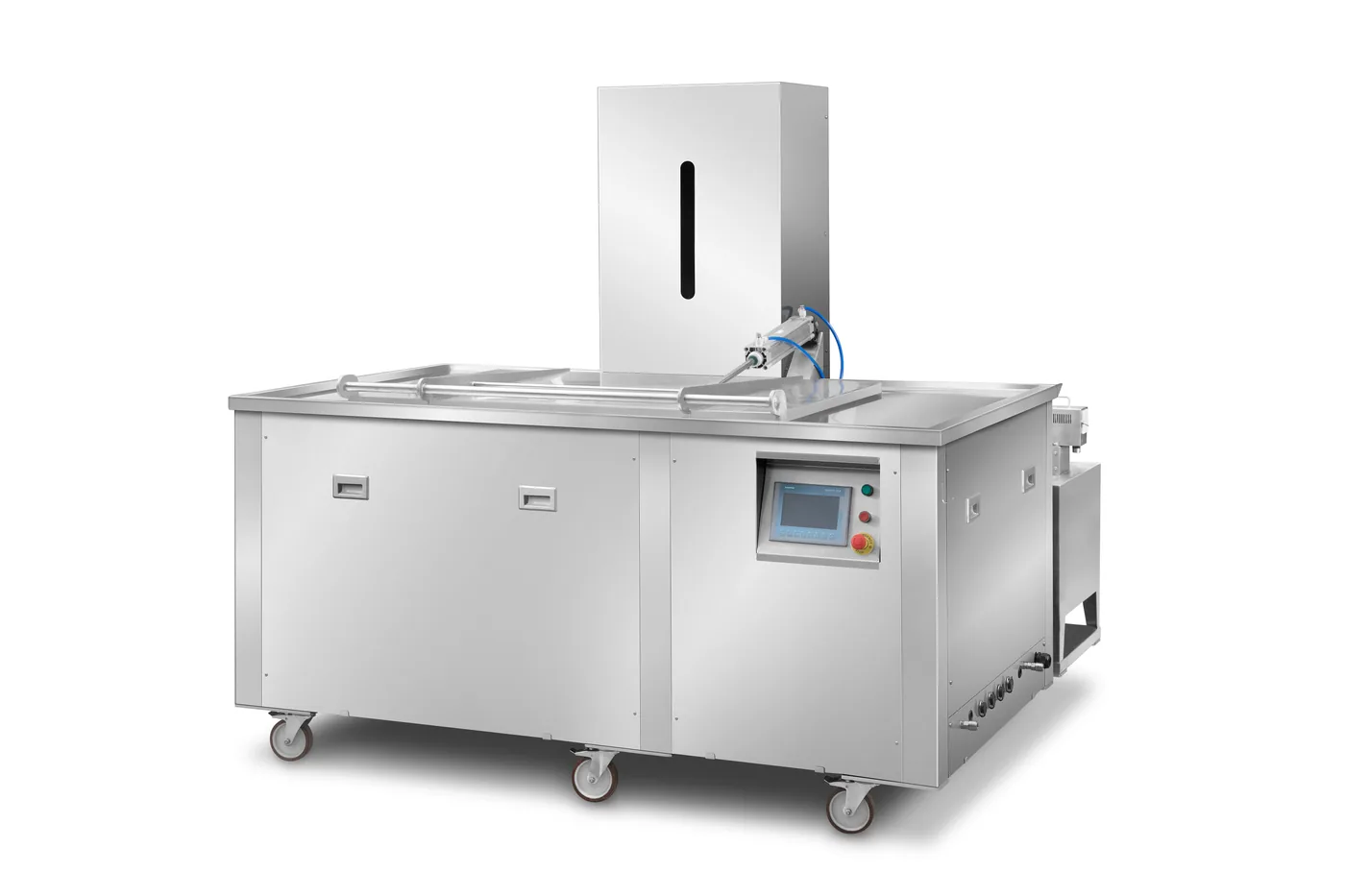

AU-800
Figures from the Sonixtek data sheet. For a layout or installation plan we confirm the exact values for your machine.
| Tank and dimensions | |
|---|---|
| Nominal volume* | 800 L |
| Tank size | 1300 × |

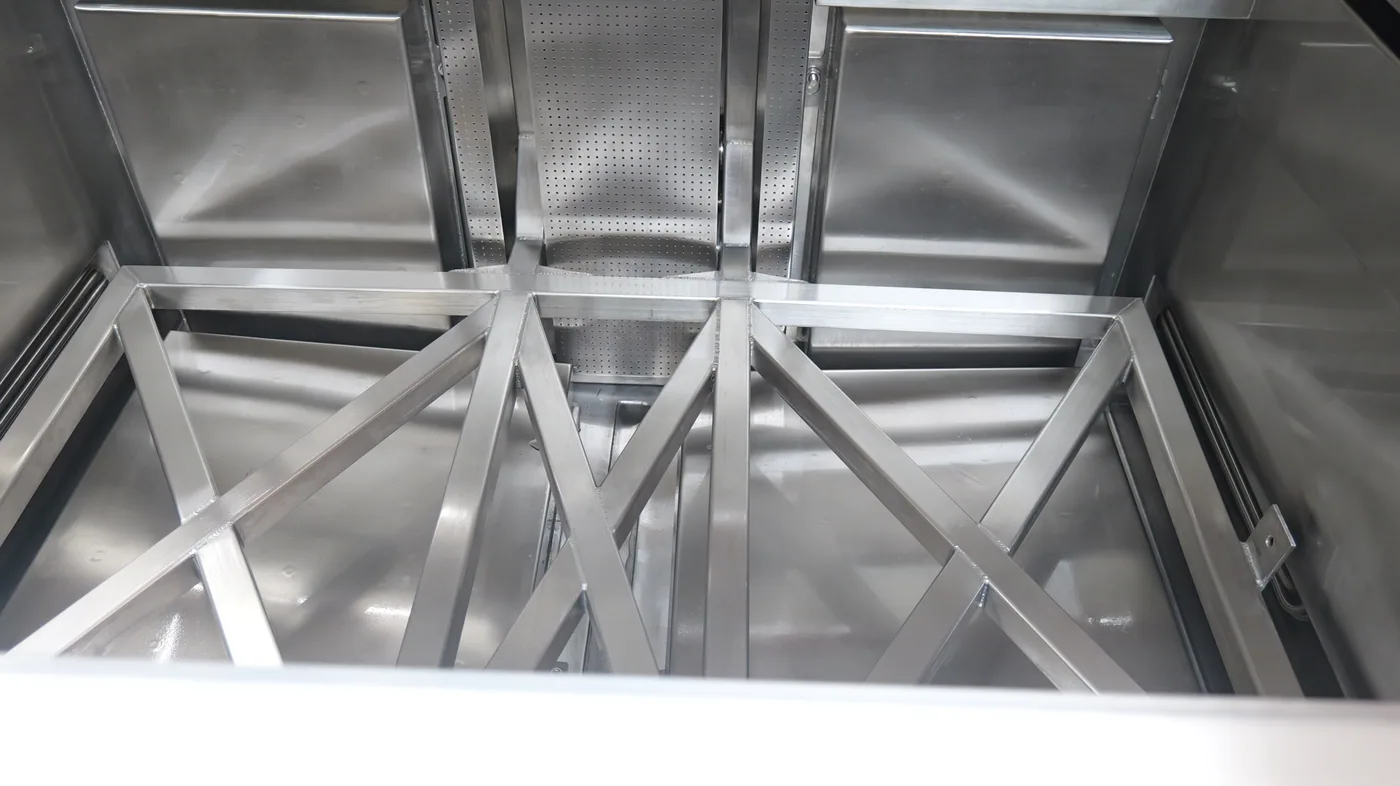

| Useful tank size | 1230 × |
| Machine size | 2300 × |
| Basket size | 1240 × |
| Load capacity | 500 kg |
| Ultrasonics | |
| Ultrasonic power | 9600 W |
| Frequency | 28 kHz / 40 kHz |
| Transducers | 160 |
| Generator | 4 × 2400 W |
| Generator functions | Digital: sweep, degas, pulse, dynamic |
| Heating and pump | |
| Heating power | 18000 W |
| Temperature range | room temperature to 100 °C |
| Electrical and control | |
| Power supply | 400 V/63 AUS versions on request: 480 V or 208–240 V three-phase, 60 Hz, with 60 Hz motors and pumps; current and plug are confirmed in the quote. |
| Power consumption | 29620 W |
| Rated current | 60 A |

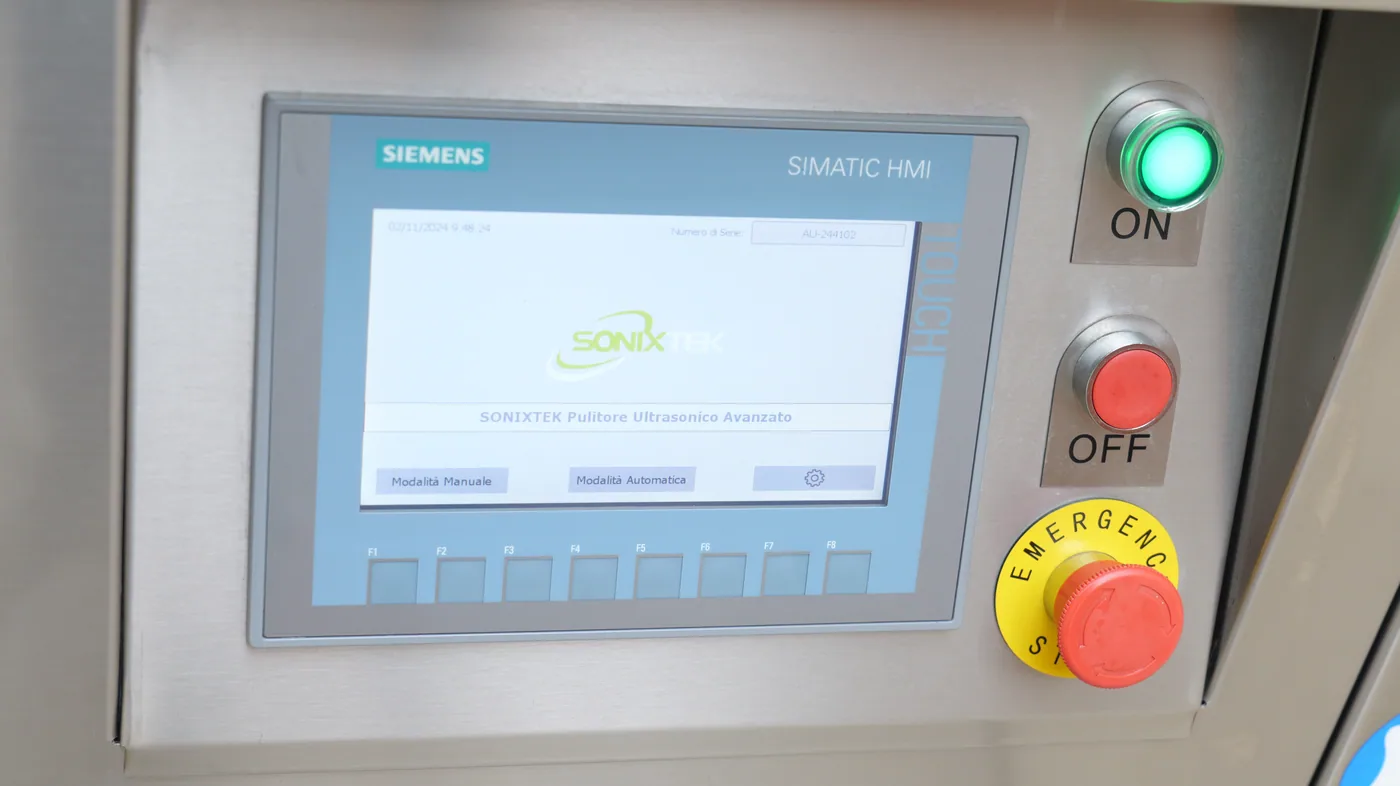

| Timer | PLC |
| Construction, weight and packing | |
| Tank material | Stainless steel AISI304 (from 2 mm |
| Net weight | 1000 kg |
| Gross weight | 1480 kg |
| Packing size | 2400 × |
* Nominal volume: calculated from the inner tank dimensions (length × width × height). Rounded corners, the tank's construction and the maximum fill line mean the amount of liquid in use is lower.
Documentation
Ask for the current datasheet, manual and installation requirements for this exact model.
Request model documents ↗Talk to an engineer
The usable basket space, part geometry and load matter as much as the nominal tank capacity. Share your parts and cleaning requirements with us.
