A compact ultrasonic cleaner for small parts, laboratory work and workshop cleaning. Compare the tank dimensions and settings with the parts you need to clean.
A compact ultrasonic cleaner for small parts, laboratory work and workshop cleaning. Compare the tank dimensions and settings with the parts you need to clean.
Features
Ultrasonics
Degas function: efficient degassing of the cleaning solution
Sweep function: shifts the frequency slightly for even cleaning without dead spots
Control and monitoring
Digital display with touch-button operation
Adjustable timer from 1-99 minutes
Heating and drying
Adjustable temperature from 0°C (32 °F) to 80°C (176 °F)
Construction
Thick acid- and corrosion-resistant stainless-steel tank

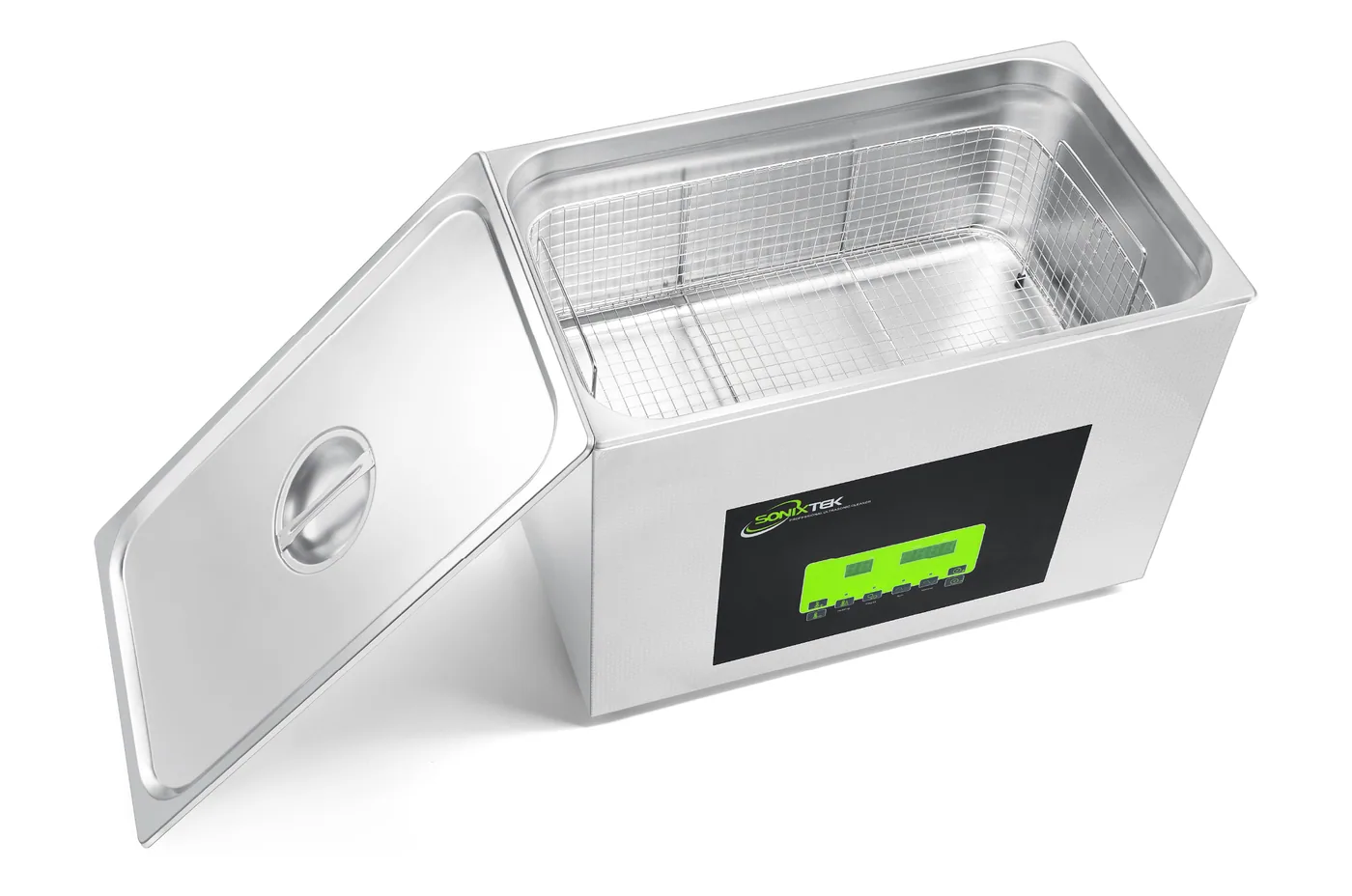

Include stainless steel lid and basket
Every option can be combined and configured to your process.
STS benchtop cleaners
What the STS offers
The straightforward benchtop range: a stainless tank, heating, degas and sweep on a simple digital panel, from 2 to 30 litres (0.5 to 7.9 US gal): our most economical range with degas and sweep.
Select a function for the details.
STS benchtop cleaners · SX benchtop cleaners
STS or SX?
Both are benchtop ranges with a stainless steel tank, heating, degas and sweep, and a digital timer. The STS is the proven, simple unit. The SX adds a digitally controlled generator with pulse and power steps, a memory and an IP54 housing, for benches where cleaning is daily work and noise matters.
A microcontroller manages degas, sweep, pulse, power steps, time, temperature and memory. Indicative operating noise is about 60 dB(A), from our own check rather than a standard measurement.
Ultrasonic power (range)
60 to 600 W
160 to 640 W
Heating power (range)
100 to 800 W
300 to 750 W
Bath functions
Degas, sweep
degas, sweep, pulse
Power setting
—
40 / 70 / 100 %
Memory of last settings
—
Yes
Controls
Digital panel, touch buttons
Two knobs, touch buttons, LED display
Temperature
room temperature to 80 °C (176 °F)
room temperature to 80 °C (176 °F)
Timer
1–99 min
1–99 min
Housing protection
—
IP54
Drain valve
From 6 L (1.6 US gal)
From 6 L (1.6 US gal)
Included
Lid, basket
Lid, basket
Size for size
The nearest sizes of the two ranges side by side, taken from the specification tables.
— = not stated for this model. Figures from Sonixtek data sheets.
* Nominal volume: calculated from the inner tank dimensions (length × width × height). Rounded corners, the tank's construction and the maximum fill line mean the amount of liquid in use is lower.

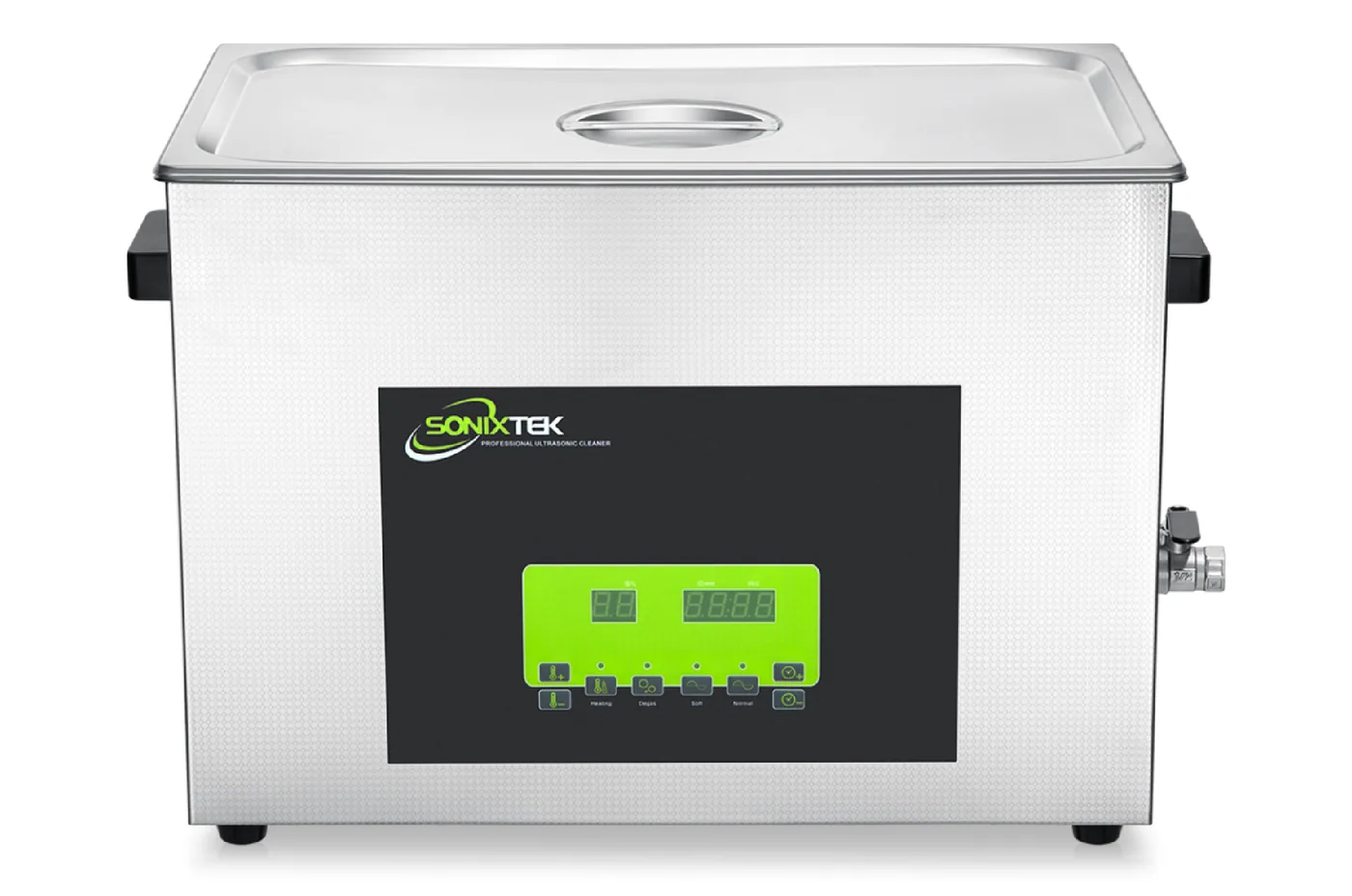

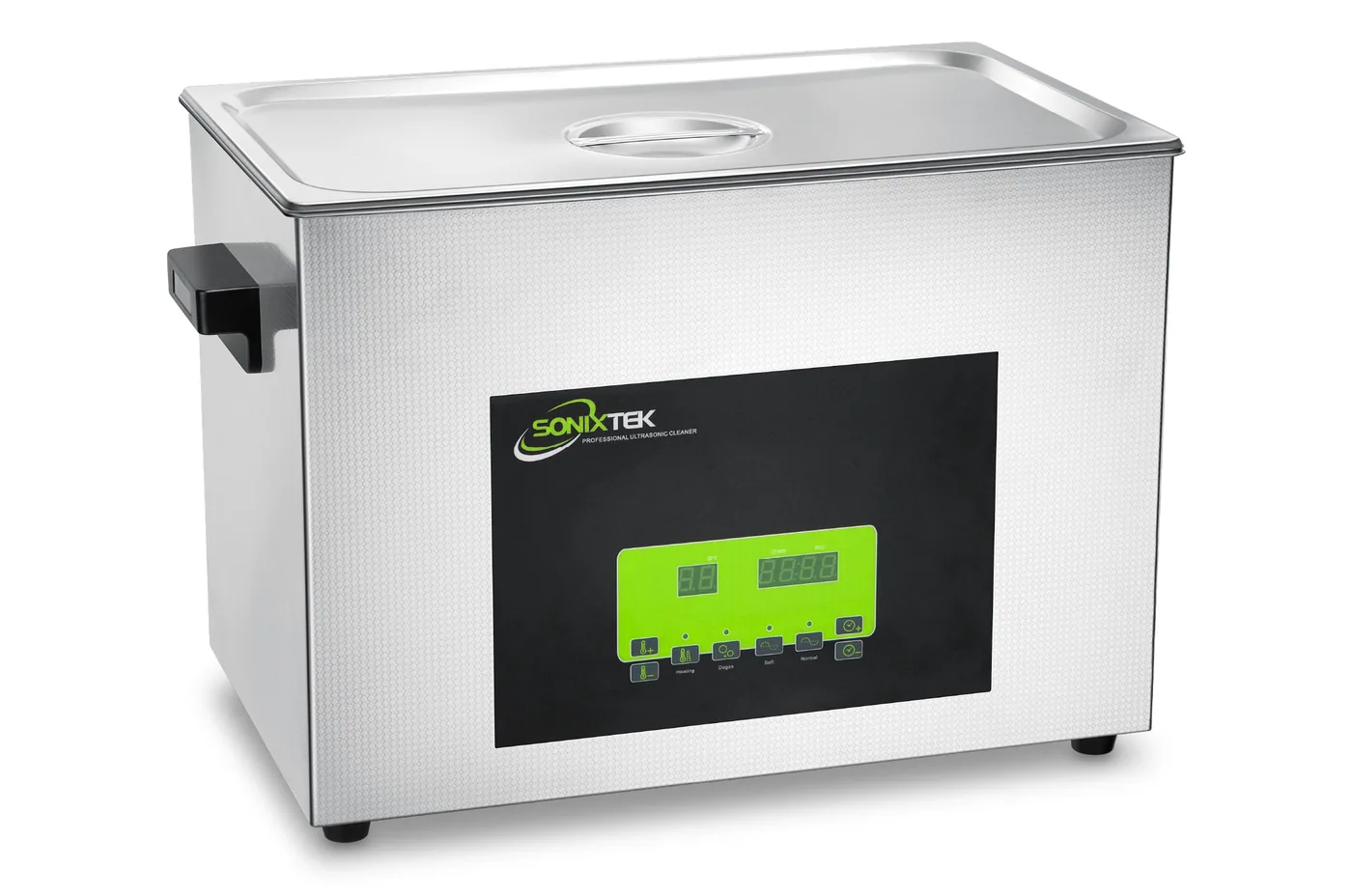

STS-300
Specifications
Figures from the Sonixtek data sheet. For a layout or installation plan we confirm the exact values for your machine.
Tank and dimensions
Nominal volume*
30 L (7.9 US gal)
Tank size
500 × 300 × 200 mm (19.7 × 11.8 × 7.9 in)
Machine size
550 × 330 × 380 mm (21.7 × 13.0 × 15.0 in)
Ultrasonics
Ultrasonic power
600 W
Frequency
40 kHz
Transducers
10
Heating and pump
Heating power
800 W
Temperature range
room temperature to 80 °C (176 °F)
Electrical and control
Power supply
220 V LN + PE
Timer
Digital, 1-99 min
Construction, weight and packing
Drain
Drain valve
* Nominal volume: calculated from the inner tank dimensions (length × width × height). Rounded corners, the tank's construction and the maximum fill line mean the amount of liquid in use is lower.
Documentation
Request model documents
Ask for the current datasheet, manual and installation requirements for this exact model.
