SX benchtop cleaners

SX-10L

10 L (2.6 US gal) · SX benchtop cleaners

Explore the machine, check the working dimensions and discuss the configuration for your process.

Nominal volume*
10 L (2.6 US gal)
Ultrasonic power
320 W
Heating power
450 W
Frequency
37 kHz

Price on request

Talk to an engineer

Price on request

Technical documentation is available on request.

About this series

The Sonixtek SX series is the second benchtop range: five sizes from 3 to 28 litres (0.8 to 7.4 US gal) at 37 kHz, with a stainless steel tank and housing. Four functions set it apart for daily bench work: degas drives dissolved air out of a fresh bath, sweep shifts the frequency slightly so no part sits in a dead spot, pulse lifts the power to 120 % in bursts for stubborn soil, and the power setting runs the bath at 40, 70 or 100 % for delicate or robust parts.

In daily use

Temperature is set room temperature to 80 °C (176 °F) and the timer from 1 to 99 minutes; the last settings are remembered for the next cycle. Models from 6 litres (1.6 US gal) have a drain valve. A stainless steel basket and lid are included, and the series is meant for places where low noise matters, such as laboratories and service counters.

SX benchtop cleaners

What sets the SX apart

A digital generator, degas, sweep, pulse and power steps, with heating and a digital timer on one panel. Settings are kept for the next cycle.

Select a function for the details.

SX benchtop cleaners

37 kHz, 80 W transducers

Every tank runs at 37 kHz on industrial transducers rated 80 W each: two under the 3 L (0.79 US gal) tank, eight under the 28 L (7.4 US gal).

37 kHz sits between the classic 28 kHz, strong and coarse for heavy soil, and 40 kHz, fine and gentle for delicate parts. It is strong enough for oil, polishing paste and carbon on small parts, and gentle enough for instruments, jewellery and electronics.

Each transducer is bonded under the tank floor and rated 80 W. The count grows with the tank: 2 on the SX-3L, 3 on the SX-6L, 4 on the SX-10L, 6 on the SX-15L and 8 on the SX-28L. That gives between about 23 and 53 W of ultrasound per litre of bath.

Read more in the knowledge base

SX benchtop cleaners

Degas

Drives the dissolved air out of a fresh bath. Without it, the air damps the cavitation during the first minutes of every new fill.

Fresh tap water and freshly mixed chemistry hold dissolved air. Under ultrasound that air forms bubbles that cushion the implosions, so the first minutes of a new bath clean poorly and sound loud and hissing.

Degas runs the ultrasound in an on-off rhythm: the bubbles grow, rise and leave the liquid. Use it after every fresh fill or change of chemistry, for a few minutes before the first load. A degassed bath sounds quieter and more even.

Read more in the knowledge base

SX benchtop cleaners

Sweep

Shifts the frequency slightly around 37 kHz so the sound field keeps moving: no standing waves and no dead spots in the basket.

At one fixed frequency the sound forms standing waves: zones of strong and weak cavitation about 2 cm (0.8 in) apart at 37 kHz. Parts in a weak zone clean slower; delicate parts in a strong zone can be marked.

Sweep moves the frequency up and down by a small amount, many times a second, so the zones keep moving and every surface gets the same treatment. Leave it on for mixed loads and for parts with flat or polished surfaces.

Read more in the knowledge base

SX benchtop cleaners

Pulse: 120 % bursts

Raises the output to 120 % in bursts for stubborn soil, and drops back to the set power when switched off.

Pulse adds bursts of extra power, up to 120 % of the rated output, on top of the set power. The peaks break off soil that a steady bath only loosens: dried polishing paste, baked-on residue, scale.

Use it for the first minutes of a heavy-soil cycle, then switch back to normal power. Do not use it on soft metals, coated parts or fine electronics.

SX benchtop cleaners

Power 40 · 70 · 100 %

Three power steps: gentle for plated, polished or delicate parts, full power for castings and tools.

40 % for delicate, plated or polished parts and electronics; 70 % for everyday mixed loads; 100 % for castings, tools and heavy oil. Lower power also means a quieter bath.

On a new kind of part, start low and raise the power only if the result is not clean.

Read more in the knowledge base

SX benchtop cleaners

Heating room temperature to 80 °C (176 °F)

The thermostat holds the set temperature. Heating runs independently of the ultrasound, so the bath can warm up before the cycle starts.

Most cleaners work best warm: oils and greases soften from about 40 to 60 °C (104 to 140 °F), and the chemistry acts faster.

Switch it on early: a full SX-10L takes about 45 to 50 minutes to go from 20 to 50 °C (68 to 122 °F) with its 450 W heater. During long cycles the ultrasound itself also warms the bath a few degrees.

Read more in the knowledge base

SX benchtop cleaners

Memory

Time, temperature and power setting are kept from the last cycle: one touch on Start repeats it.

Time, temperature and power setting stay stored when a cycle ends. For routine work, the same instruments or the same parts every day, one touch on Start repeats the cycle exactly, without setting the knobs again.

That keeps results the same from one operator and one shift to the next.

SX benchtop cleaners

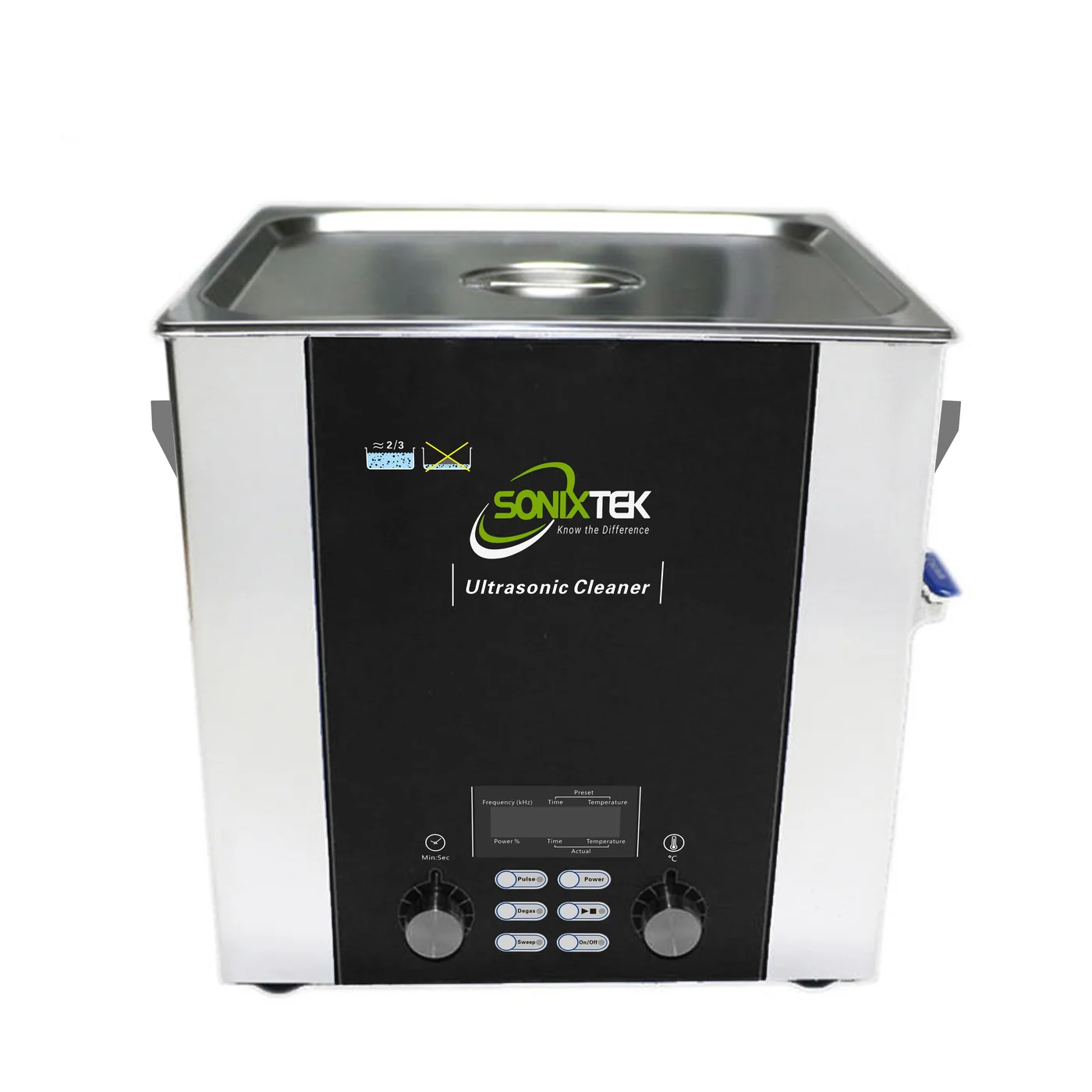

Touch controls, LED display

Two knobs for time and temperature, touch-sensitive buttons for the functions, and a display that shows set and actual values side by side.

The display shows set and actual values side by side: time remaining, bath temperature, power percentage and frequency. Indicator lights show when the ultrasound and the heater are active.

Time and temperature are set with two knobs; the functions sit on touch-sensitive buttons that wipe clean.

SX benchtop cleaners

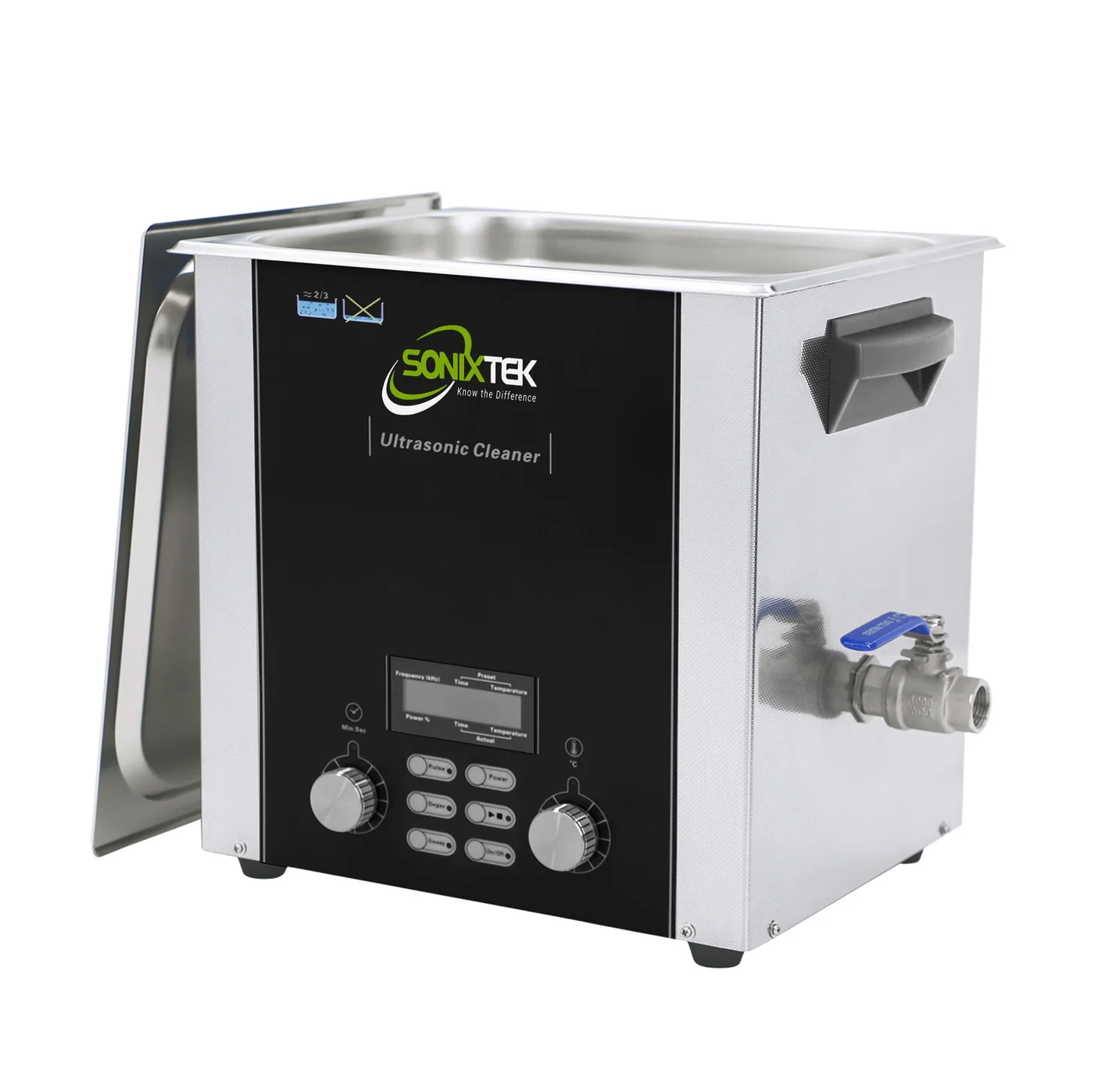

Drain valve from 6 L (1.6 US gal)

Models from 6 litres (1.6 US gal) have a ball valve at the back for emptying the bath as standard; the 3 litre (0.79 US gal) tank is emptied by pouring.

The SX-6L, SX-10L, SX-15L and SX-28L have a stainless steel ball valve at the back. The SX-3L can be emptied by hand; a valve is available on request.

SX benchtop cleaners

Stainless steel, IP54

Tank and housing in SUS304 stainless steel, protected against dust and splashing water (IP54), with carrying handles on both sides.

Tank and housing are SUS304 stainless steel. The housing is rated IP54: protected against dust and against splashing water from any direction, which suits a wet bench. Carrying handles sit on both sides.

Never immerse the unit or spray it with water; wipe the housing with a damp cloth.

SX benchtop cleaners

Digital generator, quiet running

A microcontroller manages degas, sweep, pulse, power steps, time, temperature and memory. Indicative operating noise is about 60 dB(A), from our own check rather than a standard measurement.

A microcontroller manages degas, sweep, pulse, power steps, time, temperature and memory. Indicative operating noise is about 60 dB(A), from our own check rather than a standard measurement.

SX benchtop cleaners

Basket and lid included

A stainless steel basket, a stainless steel lid and the power cord come in the box.

Every unit comes with a stainless steel basket, a stainless steel lid and the power cord.

Use the basket: parts must not lie on the tank floor, where they damp the ultrasound and wear the tank. The lid keeps heat and vapour in and lowers the noise.

STS benchtop cleaners · SX benchtop cleaners

STS or SX?

Both are benchtop ranges with a stainless steel tank, heating, degas and sweep, and a digital timer. The STS is the proven, simple unit. The SX adds a digitally controlled generator with pulse and power steps, a memory and an IP54 housing, for benches where cleaning is daily work and noise matters.

STS benchtop cleanersSTSSX benchtop cleanersSX
Sizes2 to 30 L (0.5 to 7.9 US gal), 8 models3 to 28 L (0.8 to 7.4 US gal), 5 models
Frequency40 kHz37 kHz
Transducer rating60 W80 W
GeneratorConventional generatorDigital generator under microcontroller control
Noise in operationNormal for a benchtop unitA microcontroller manages degas, sweep, pulse, power steps, time, temperature and memory. Indicative operating noise is about 60 dB(A), from our own check rather than a standard measurement.
Ultrasonic power (range)60 to 600 W160 to 640 W
Heating power (range)100 to 800 W300 to 750 W
Bath functionsDegas, sweepdegas, sweep, pulse
Power setting—40 / 70 / 100 %
Memory of last settings—Yes
ControlsDigital panel, touch buttonsTwo knobs, touch buttons, LED display
Temperatureroom temperature to 80 °C (176 °F)room temperature to 80 °C (176 °F)
Timer1–99 min1–99 min
Housing protection—IP54
Drain valveFrom 6 L (1.6 US gal)From 6 L (1.6 US gal)
IncludedLid, basketLid, basket

Size for size

The nearest sizes of the two ranges side by side, taken from the specification tables.

Nominal volume*Ultrasonic powerTransducersHeating power
STS-0303 L (0.79 US gal)120 W2100 W
SX-3L3 L (0.79 US gal)160 W2300 W
STS-0606 L (1.6 US gal)180 W3300 W
SX-6L6 L (1.6 US gal)240 W3450 W
STS-0909 L (2.4 US gal)240 W4300 W
SX-10L10 L (2.6 US gal)320 W4450 W
STS-15015 L (4.0 US gal)360 W6400 W
SX-15L15 L (4.0 US gal)480 W6600 W
STS-30030 L (7.9 US gal)600 W10800 W
SX-28L28 L (7.4 US gal)640 W8750 W

— = not stated for this model. Figures from Sonixtek data sheets.

* Nominal volume: calculated from the inner tank dimensions (length × width × height). Rounded corners, the tank's construction and the maximum fill line mean the amount of liquid in use is lower.

SX-10L

Specifications

Figures from the Sonixtek data sheet. For a layout or installation plan we confirm the exact values for your machine.

Tank and dimensions
Nominal volume*10 L (2.6 US gal)
Tank size302 × 239 × 150 mm (11.9 × 9.4 × 5.9 in)
Ultrasonics
Ultrasonic power320 W
Frequency37 kHz
Transducers4
Heating and pump
Heating power450 W
Temperature rangeroom temperature to 80 °C (176 °F)
Electrical and control
TimerDigital, 1-99 min
Construction, weight and packing
Tank materialStainless steel SUS304 tank and housing
Gross weight8.58 kg (19 lb)
DrainDrain valve
Protection ratingIP54
Packing size430 × 350 × 410 mm (16.9 × 13.8 × 16.1 in)

* Nominal volume: calculated from the inner tank dimensions (length × width × height). Rounded corners, the tank's construction and the maximum fill line mean the amount of liquid in use is lower.
