Drying tanks
96 L
Explore the machine, check the working dimensions and discuss the configuration for your process.
Price on request
Price on request
Technical documentation is available on request.
About this series
The DT series dries what the cleaner has just washed. A heating turbine moves hot air through the load, so water is off the part before it can flash-rust or carry spots into assembly. The DT-96 and DT-206 match the ST-96 and ST-206, so their basket comes out of the cleaner and goes straight into the dryer without being repacked; the DT-300 takes baskets up to 820 ×
Features
Every option can be combined and configured to your process.

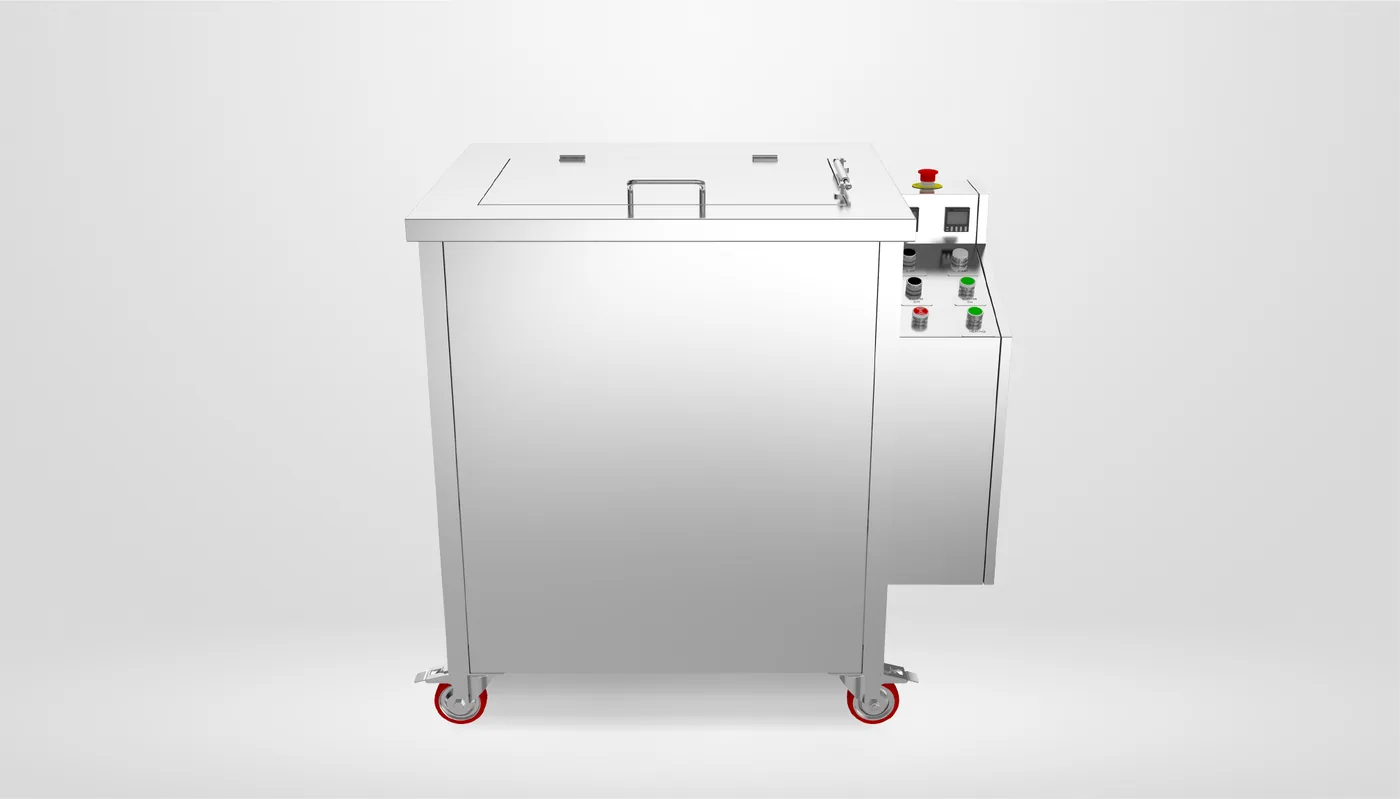

DT hot-air drying tanks

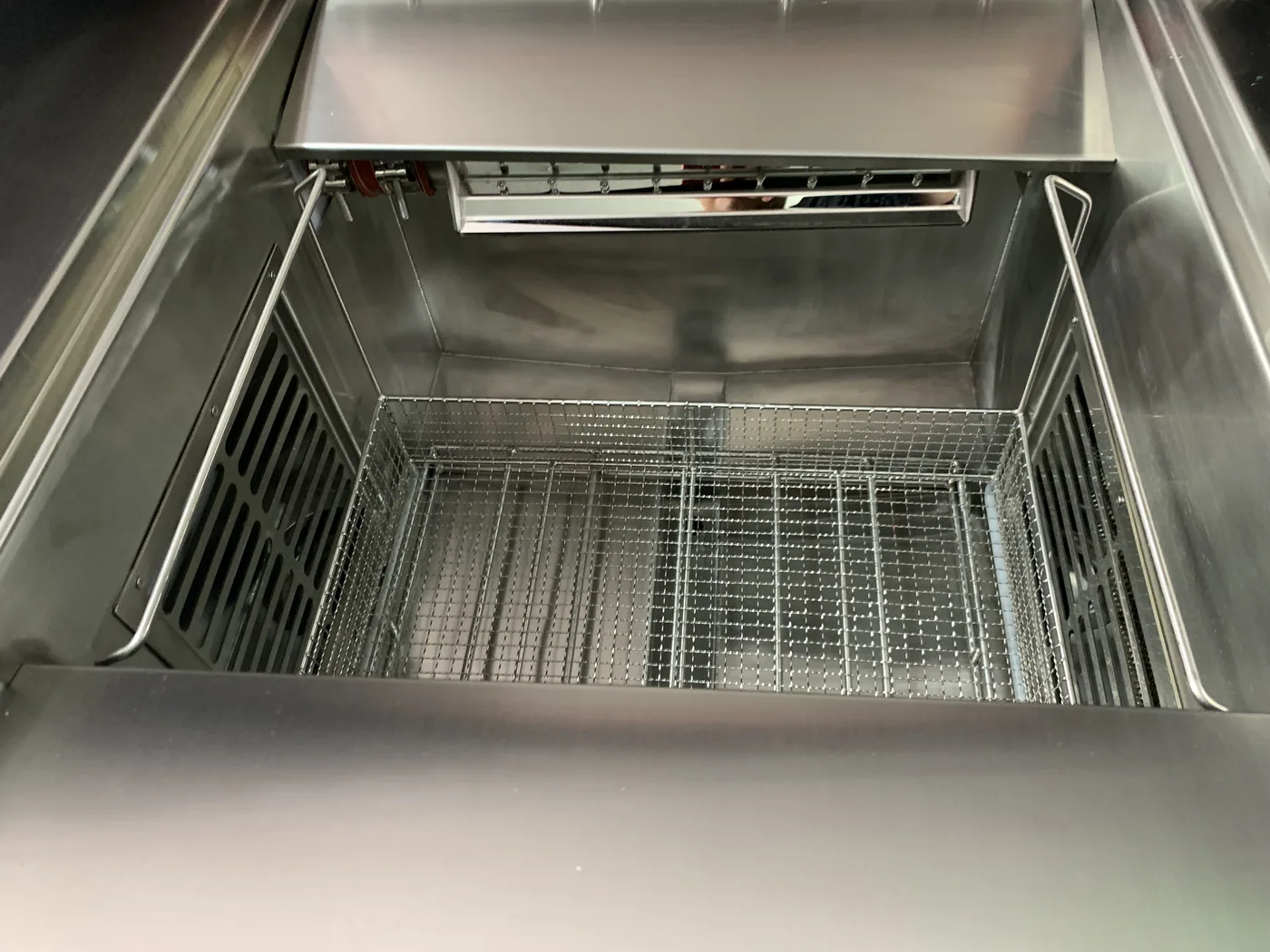

A hot-air drying tank for the end of the wash and rinse: a heating turbine drives warm air through the basket, so parts leave dry, without water spots or flash rust. Three sizes, 96 L
Select a function for the details.

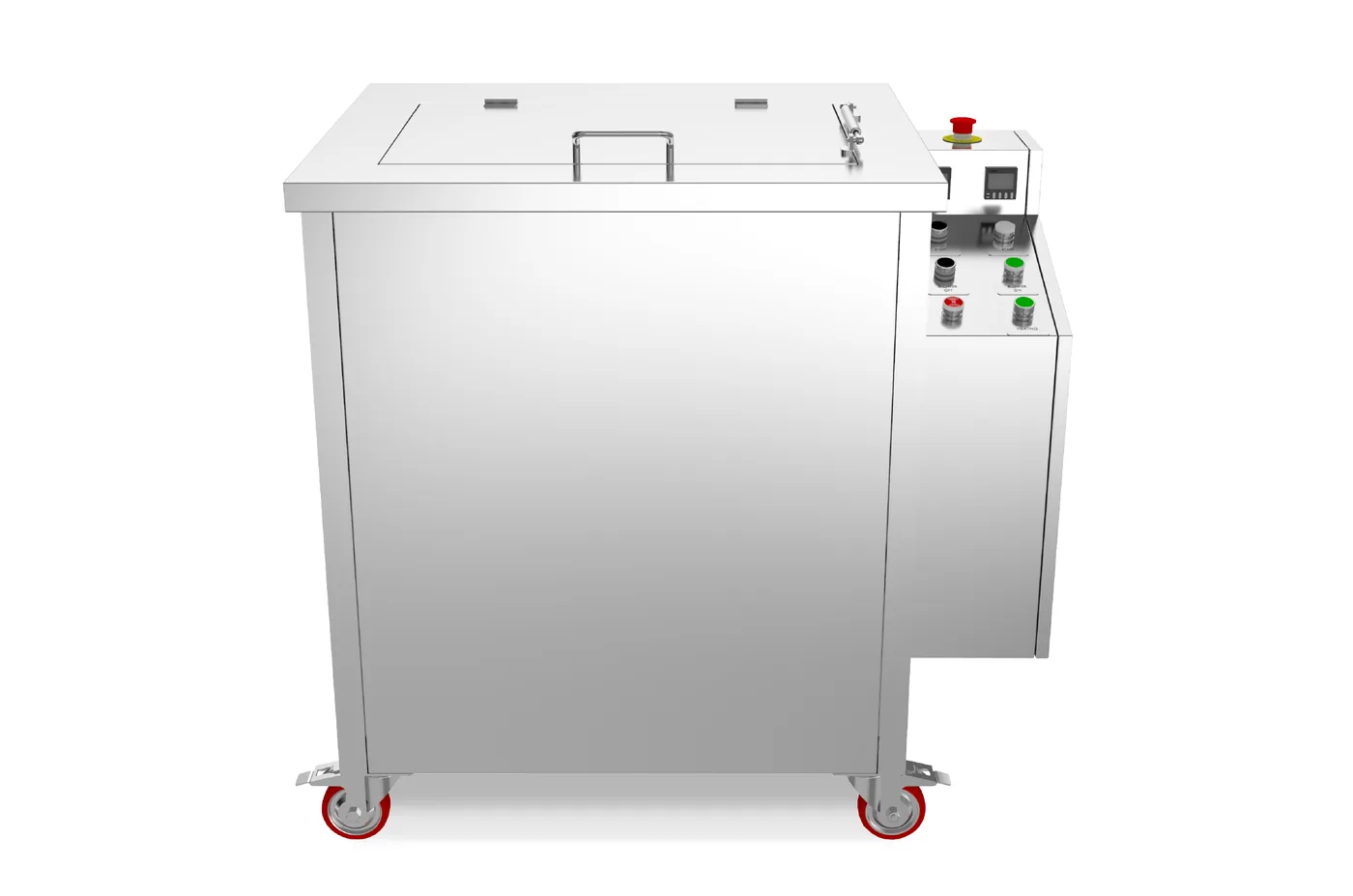

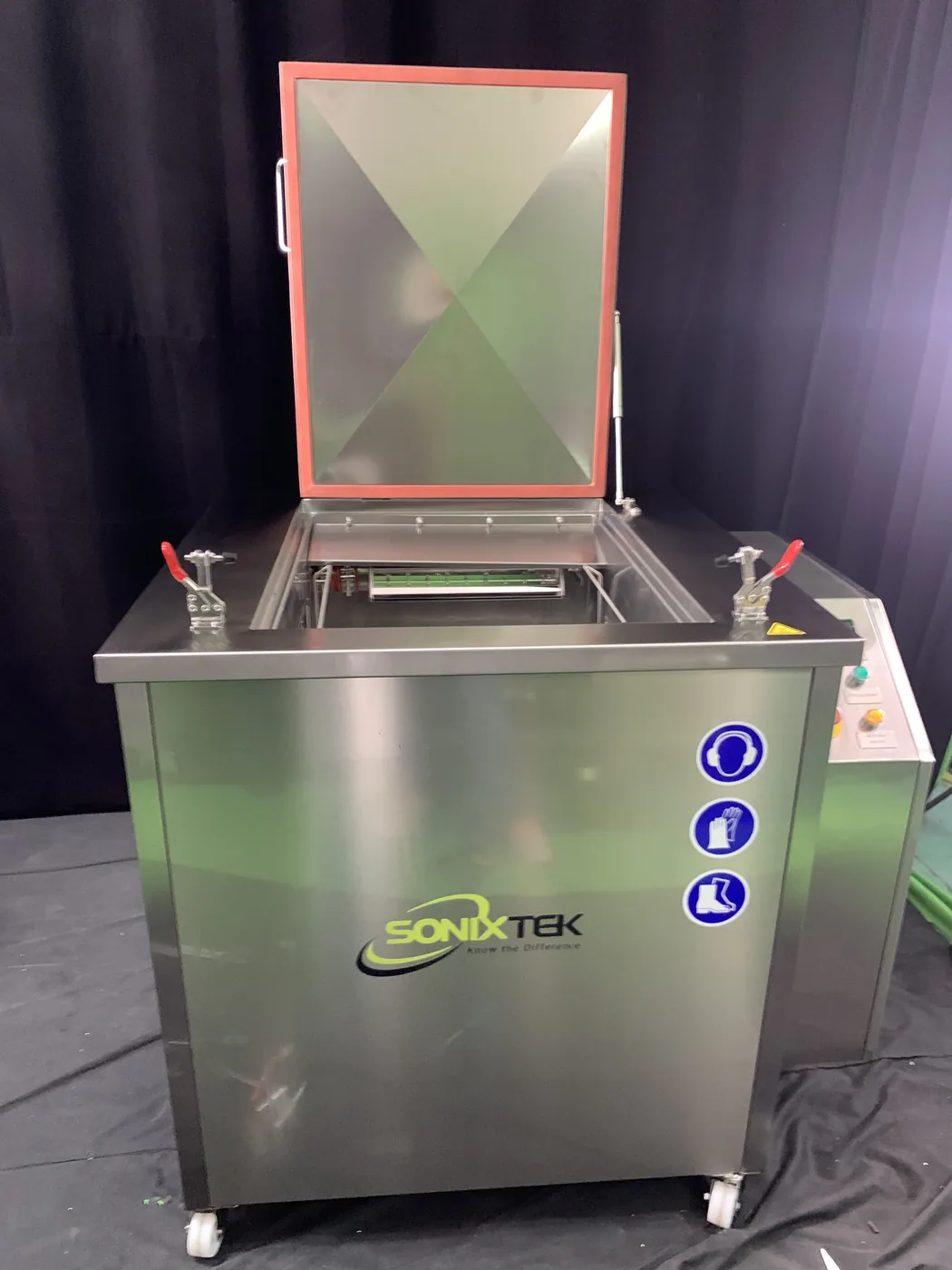

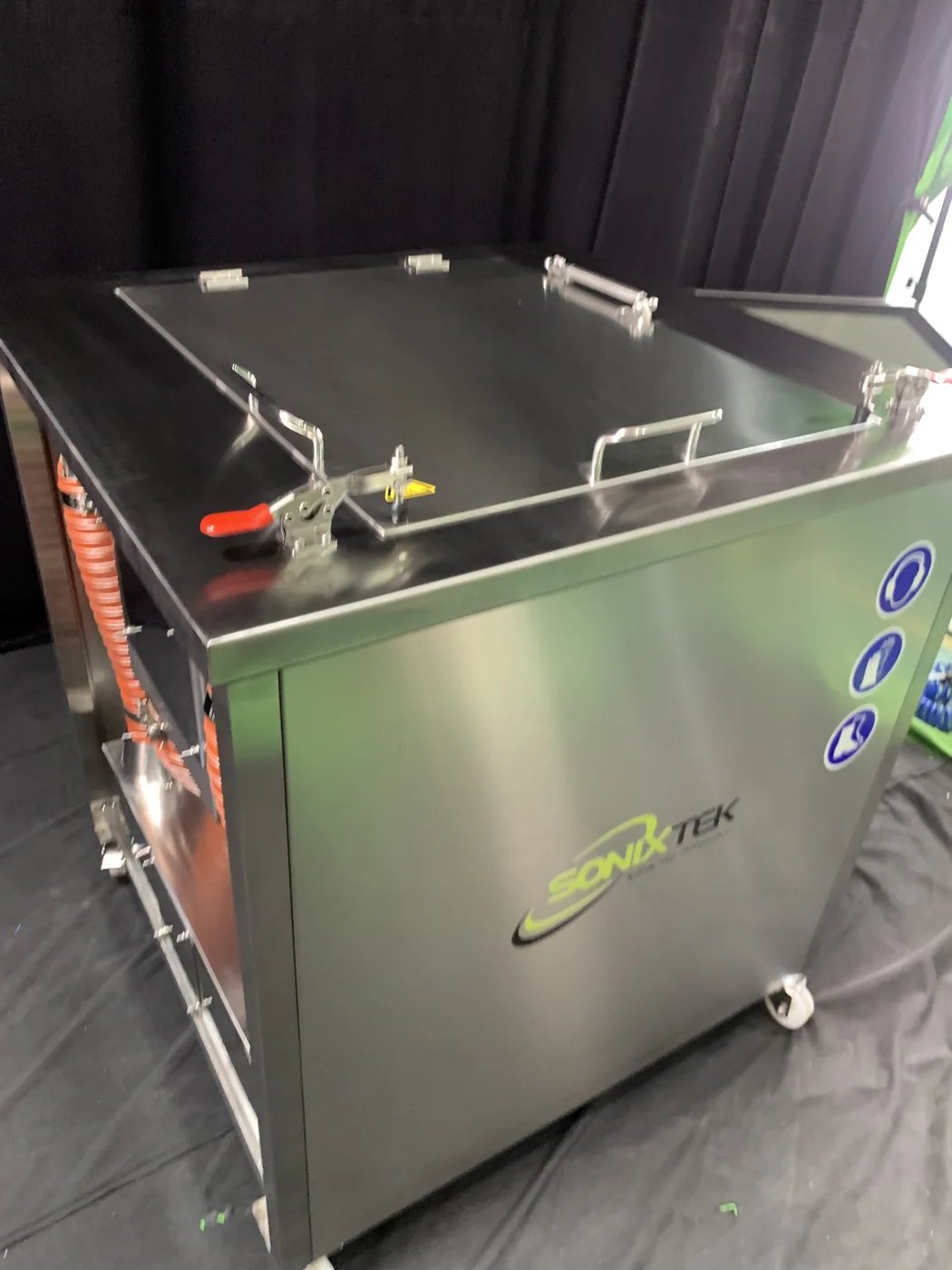

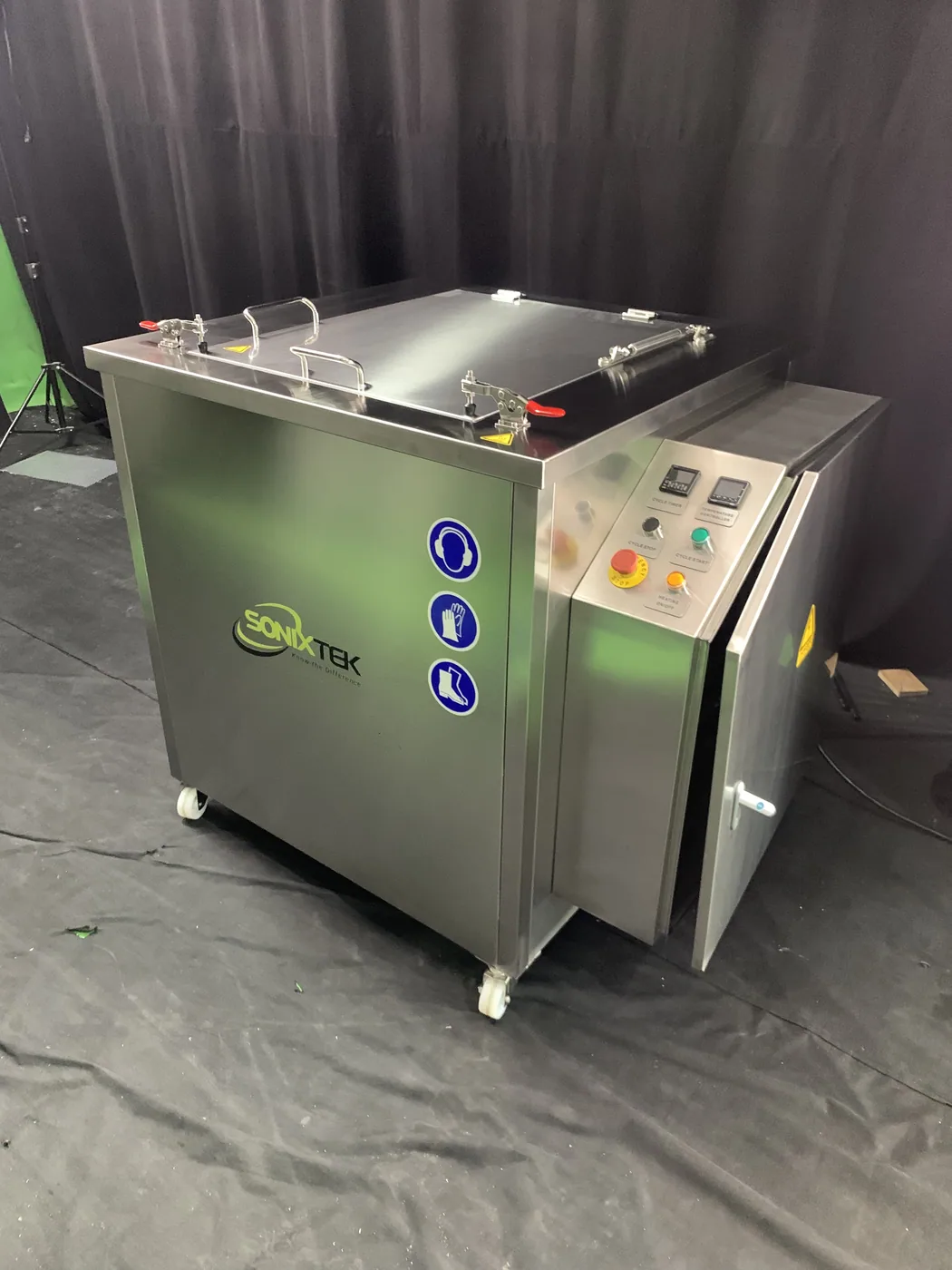

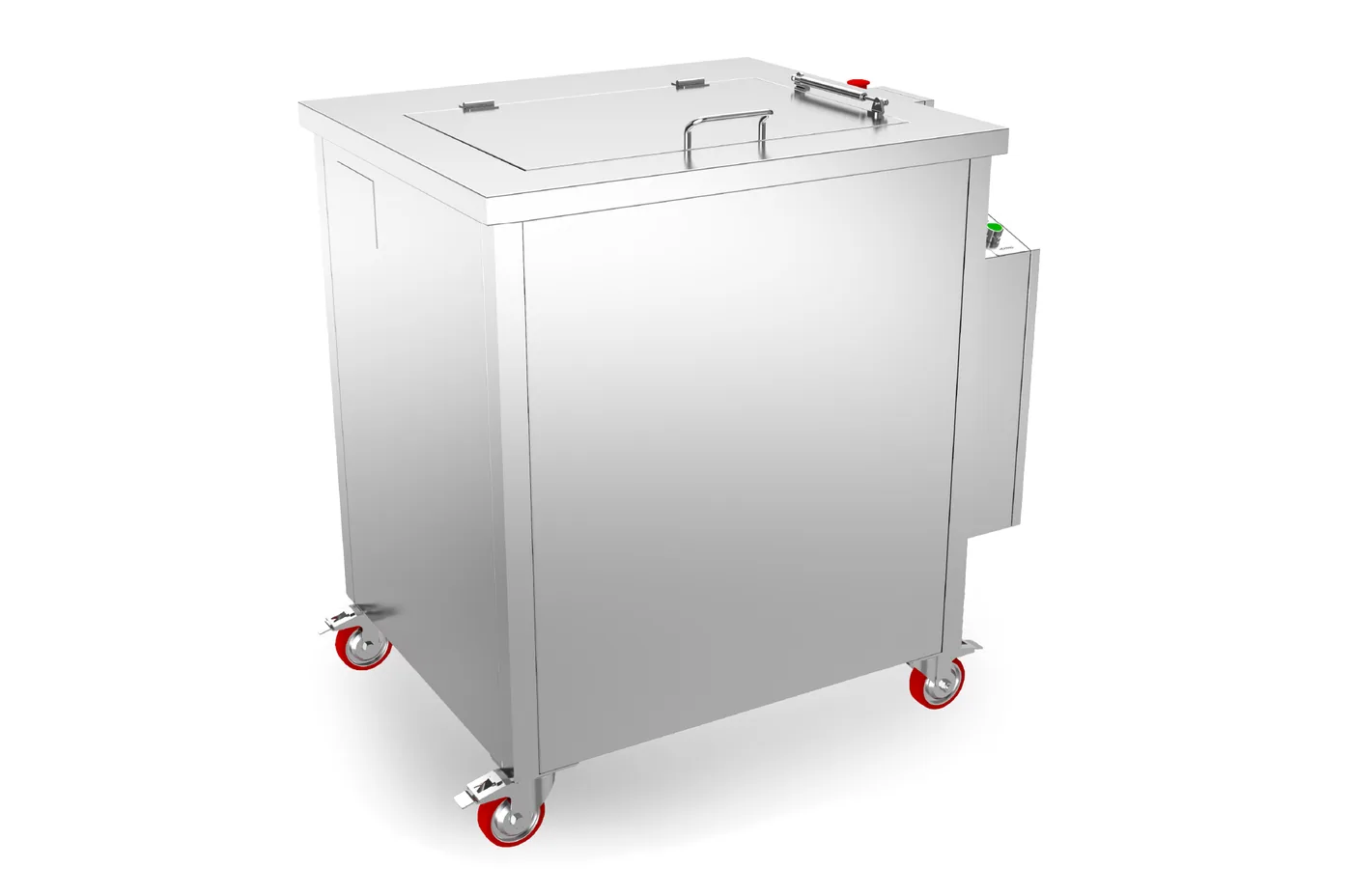

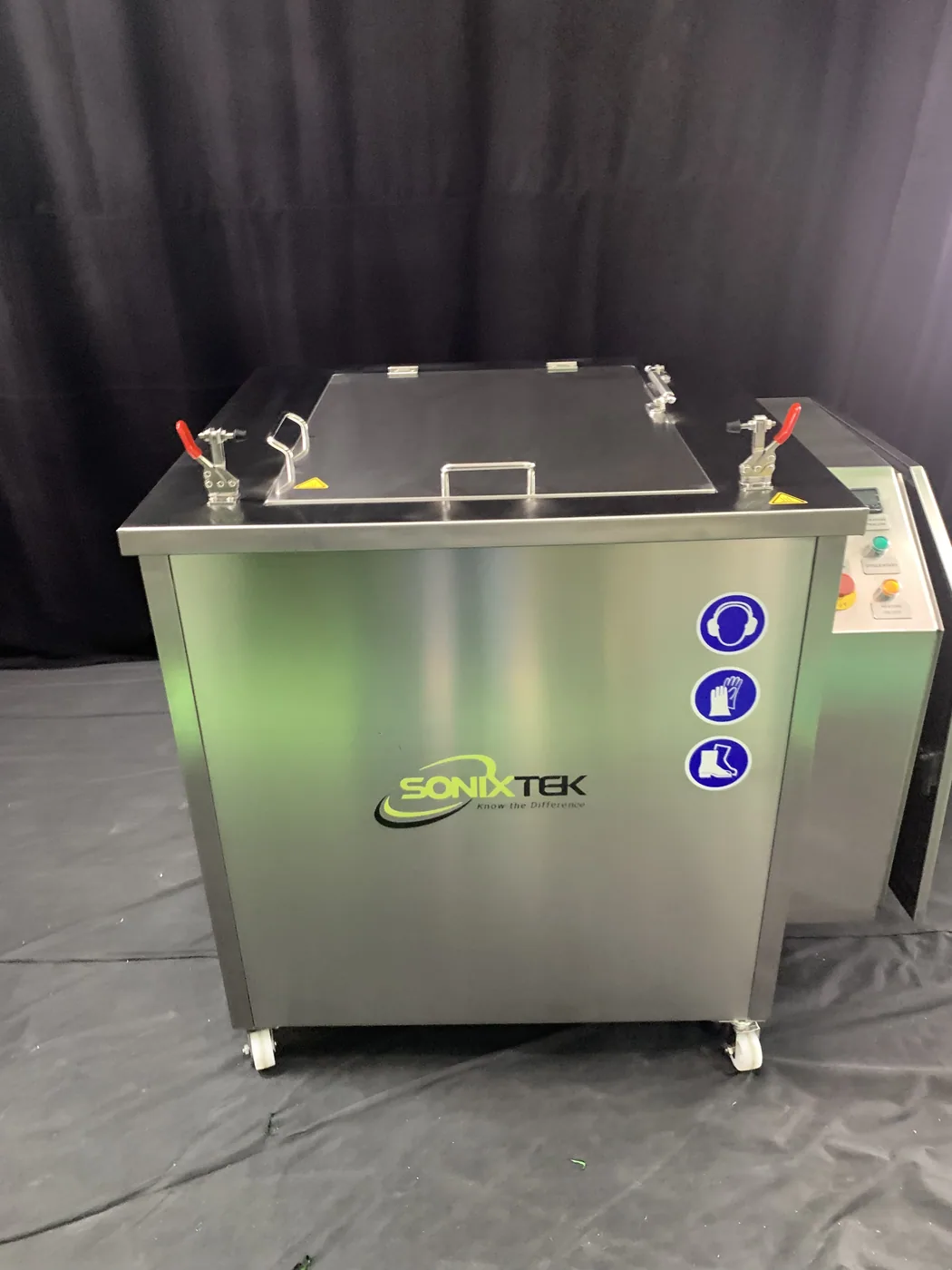

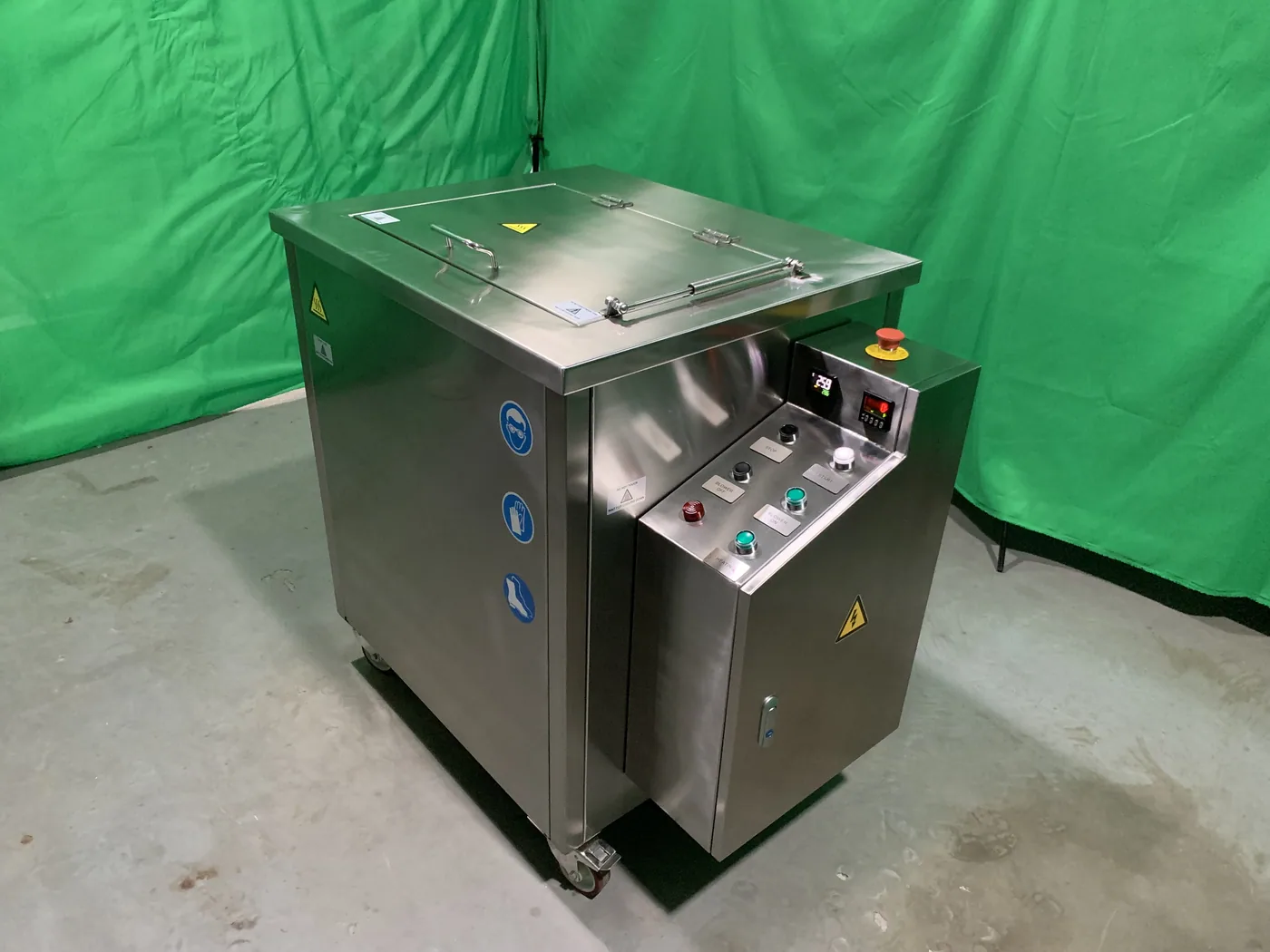

DT-96
Figures from the Sonixtek data sheet. For a layout or installation plan we confirm the exact values for your machine.
| Tank and dimensions | |
|---|---|
| Nominal volume* | 96 L |
| Tank size | 600 × |
| Machine size | 1050 × |
| Basket size | 580 × |
| Load capacity | 100 kg |
| Heating and pump | |

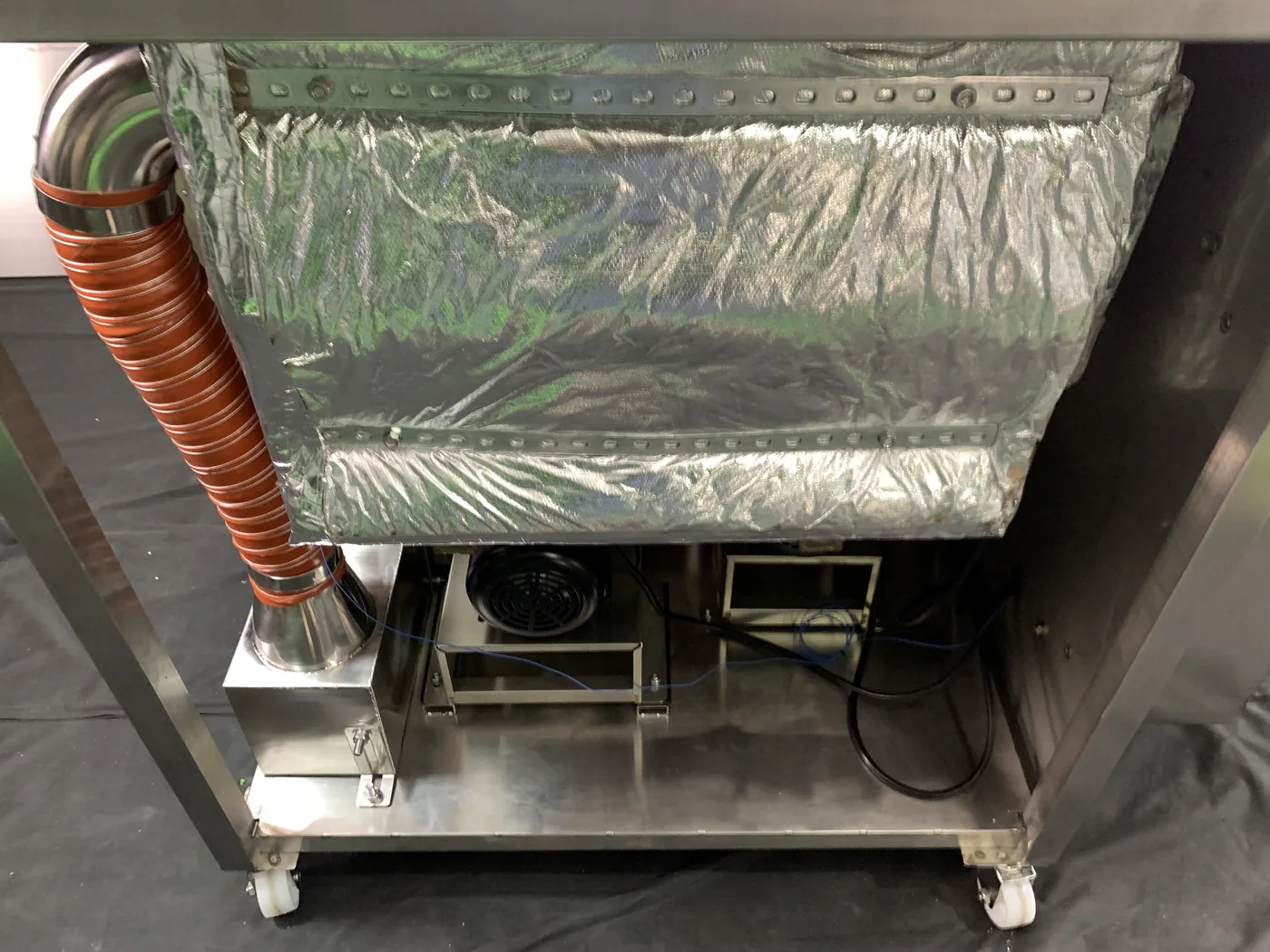

| Heating power | 3000 W |
| Temperature range | room temperature to 100 °C |
| Electrical and control | |
| Power supply | 400 V/16 AUS versions on request: 480 V or 208–240 V three-phase, 60 Hz, with 60 Hz motors and pumps; current and plug are confirmed in the quote. |
| Power consumption | 3750 W |
| Rated current | 6 A |

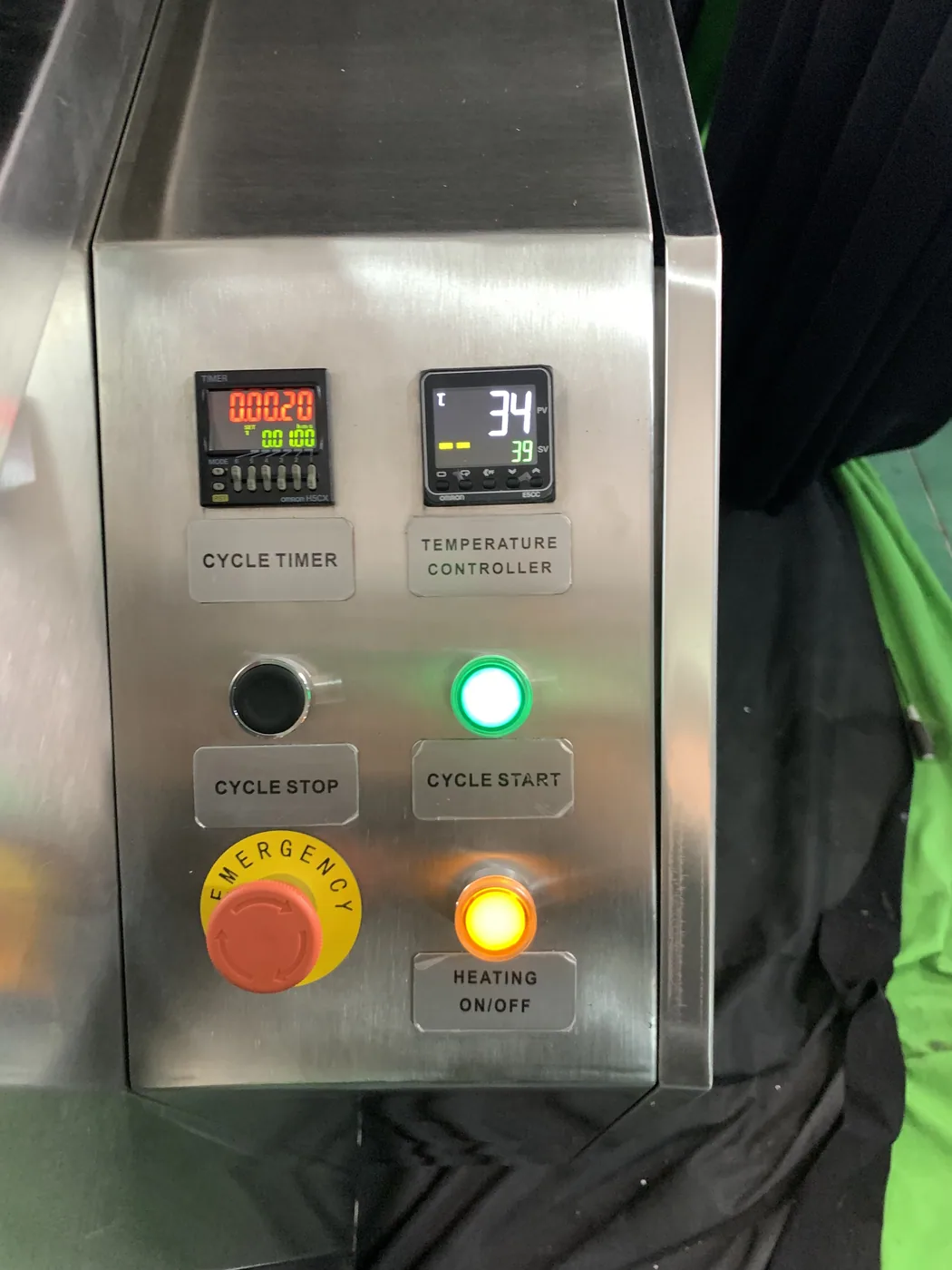

| Timer | Digital |
| Construction, weight and packing | |
| Tank material | Stainless steel AISI304 (from 2 mm |
| Packing size | 1100 × |
* Nominal volume: calculated from the inner tank dimensions (length × width × height). Rounded corners, the tank's construction and the maximum fill line mean the amount of liquid in use is lower.
Documentation
Ask for the current datasheet, manual and installation requirements for this exact model.
Request model documents ↗Talk to an engineer
The usable basket space, part geometry and load matter as much as the nominal tank capacity. Share your parts and cleaning requirements with us.
